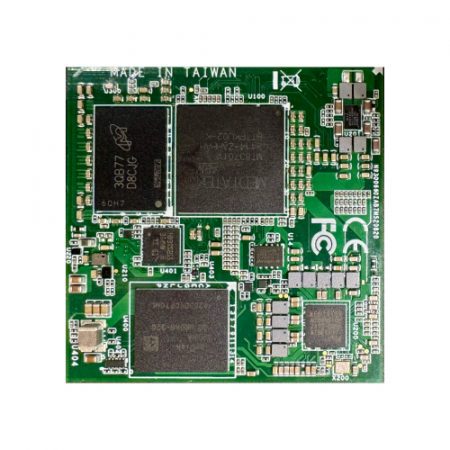

SMARC® Module with Intel® Alder Lake-N family processor
SMARC® Module with Intel Atom® Processors x7000E Series (Alder Lake-N) family processor
The SMARC (“Smart Mobility ARChitecture”) is a versatile small form factor computer module definition targeting applications that require low power, low costs, and high performance. The WSC-M21 size is 82mmx50mm, powered by Intel Alder Lake-N platform, a new generation of its predecessor, Elkhart Lake. WSC-M21 has many advantages such as better computing and graphics engine, 8K display (7680 x 4320 @ 30Hz) but no power consumption increase, TDP from 6W to 12W. The WSC-M21 has on-board LPDDR5, capacity from 4GB to 16GB, to support data transfer speeds of up to 4800MT/s, which is nearly 30% faster than previous generation.
| General | |
| CPU | Intel® Atom® N50, Dual cores, 1.0 GHz, 6W TDP Intel® Atom® N97, Quad cores, 2.0 GHz, 12W TDP Intel® Atom® N200, Quad cores, 2.0 GHz, 6W TDP Intel® Atom® x7211E, Dual cores, 1.0 GHz, 6W TDP (Default SKU) Intel® Atom® x7413E, Dual cores, 1.7 GHz, 10W TDP Intel® Atom® x7425E, Quad cores, 1.5 GHz, 12W TDP Intel® Atom® i3-N305, Octo cores, 1.8 GHz, 9W TDP (fixed 9W) |
| Memory | Onboard 4G/8G/16G LPDDR5 with 4800 MT/s Single memory channel, 32bit x 2 In Band-ECC (Intel® Atom® CPU) |
| Storage | Support onboard eMMC 5.1 flash up to 256GB |
| DisplayPort Interface | |
| DDIA | 24-bit Dual Channel LVDS up to 1920×1200@60Hz |
| DDIB | DisplayPort 1.4 up to 8K (7680×4320)@30Hz/ 4K(4096×2160) @60Hz Or HDMI 2.0b up to 4K(4096×2160) @60Hz |
| Audio | |
| Audio | Intel® HD Audio integrated in SoC 1x I2S |
| Ethernet | |
| Ethernet | 1x Intel® i226-IT |
| I/O Interfaces | |
| PCIe | 1x PCIe Gen3 x4 (option with SATA_ 3x PCIe Gen3 x1 |
| USB | 2x USB3.0, 6x USB 2.0 |
| SATA | 1x SATA 3.2 |
| Other I/O Interfaces | |
| Other I/O Interfaces | 2x CAN (option), 2x I²C, , 1x PWM, 1x SMBus, 12x GPIO, 2x UART, 1x WDT, 2x FAN Control(option with GPIO) |
| Video | |
| GPU Feature Support | Intel® Gen 12UHD Graphics driven by Intel Xe architecture | OpenGL 4.6 OpenCL 3.0 | HW accelerated video decoding HEVC/H.264/MPEG2/VP9/VC- 1/WMV9/MJPEG | Encoding HEVC/H.264/VP9/MJPEG HDCP 1.4/2.2 for 4K premium content protection |
| Embedded BIOS | |
| Embedded BIOS | AMI UEFI with Fast Boot support l Display Auto Detection l Flash Update l Password Lock l OEM Logo for startup screen |
| Mechanical and Environmental | |
| Form Factor | ASMARC® 2.1 |
| Dimension | SMARC module, 82 mm x 50 mm |
| Operating Temperature | 0°C to +70°C, w/ 0.5m/s airflow |
| Humidity | 0-95% RH, non-condensing |
| Power | |
| Standard Input | 5V DC ±5% |
| Power Management | ACPI 5.0 compliant l Fully Integrated Voltage Regulator (FIVR) |
| Operating System | |
| Operating System | Microsoft® Windows 10 IoT Enterprise LTSC 2021 (64-bit) By project request: Yocto LTS kernel 2022 |
