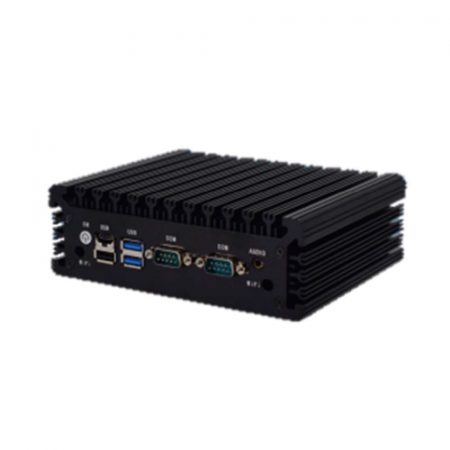

Fanless Embedded Box PC with Mini-ITX
The SQ18-3000 is the first fanless industrial PC from WeLink to offer the 10th Generation Intel Core i3/i5/i7/i9 and Intel® Celeron® processors (up to 35W TDP). The SQ18-3000 features an M.2 2280 (M-Key) slot driven by PCIe 3.0 [x4] with support for fast NVMe SSDs. It also has an M.2 2230 (E-Key) slot to support Wi-Fi or Bluetooth connectivity.
| Processor | Intel® 10th Gen (Comet Lake-S) Core™ Processors |
| Chipset | Intel® H420E |
| Memory | 2 x 260-pin DDR4 SODIMM socket supported, up to 64G DDR4-2666 |
| Storage | 1 x m.2 M key 2280 (PCIex4, SATA) |
| Graphic | Intel® UHD Graphics 630 |
| Display Port | 2 x Display port (DP1.2++) resolution up to 4096×2160@60Hz |
| TPM2.0 | 1 |
| Watch-Dog Timer | Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs |
| Ethernet | 2x Realtek GLAN RTL-8119-CG |
| USB | 6 x USB 3.2 Gen 1 (Type-A) |
| Audio | 1 x Combo Audio Jack |
| Expansion | 1 x M.2 Key E 2230 (USB2.0 only) |
| OS | Win10 IoT & Linux |
| Power | 12V/120W |
| Dimension | L x W x H: 182x182x50mm |
| Mounting | DIN-Rail or Wall-Mount |
| Environment | Operating temperature: 0 ~ 50°C |
| Certification | CE/FCC Class A |
