Advanced Reliable Industry System with Intel® Tiger Lake-U family processor
Advanced Reliable Industry System with Intel® Tiger Lake-U family processor
ARISは産業分野向けの豊富なI/Oを実現する小型IPCです。これらの I/O には、高速通信と低速データ レート接続が含まれます。堅牢で信頼性の高いシステム設計により、エッジ コンピューティングおよび産業用制御アプリケーションをサポートします。 Intel TCCおよびTSNは、Industrial IoTで使用される機能です。
| General | |
| CPU | Intel® Core i® i3-1115GRE,2 cores,3.9 GHz/2.2 GHz,15W TDP |
| Memory | SO-DIMM DDR4 up to 64GB,3200 MT/s Dual memory channels,64bit with In-Band ECC |
| Mass Storage | 1x M.2 M Key 2280 NVMe 1x M.2 B Key 2242 storage or 3042/3052 cellular module |
| Power Input | Standard:9-36 VDC |
| Operation System | Windows® 10 loT Enterprise and Linux Yocto |

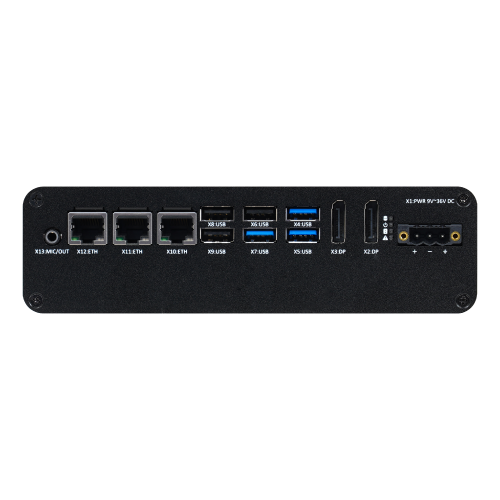

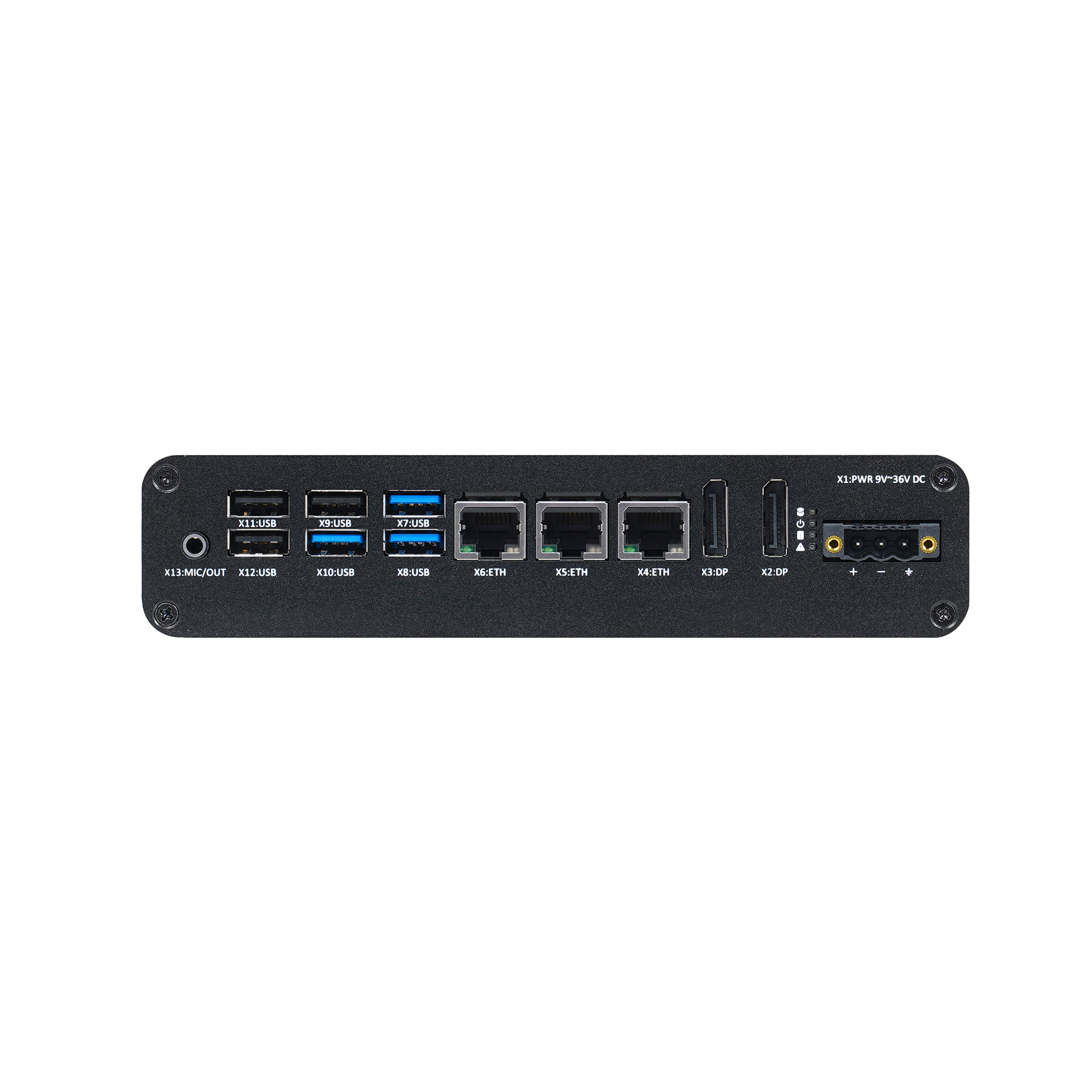

| Basic I/O Interface | |
| Power Connector | 1x 3-Pin Terminal Block |
| Giga LAN | 2x 2.5 GbE (Intel i226)and 1x 2.5 GbE (MaxLinear GPY215) |

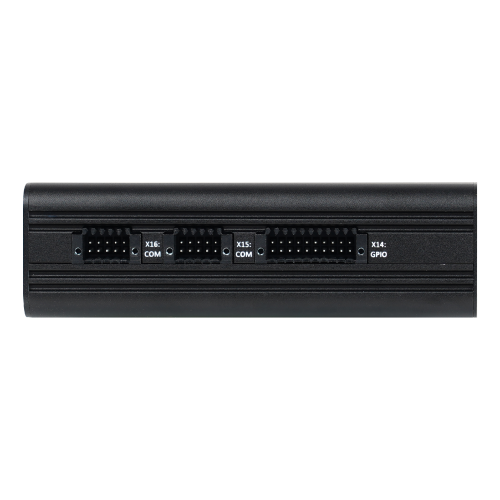

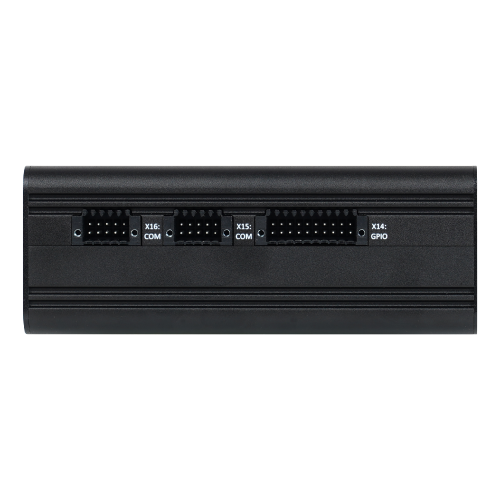

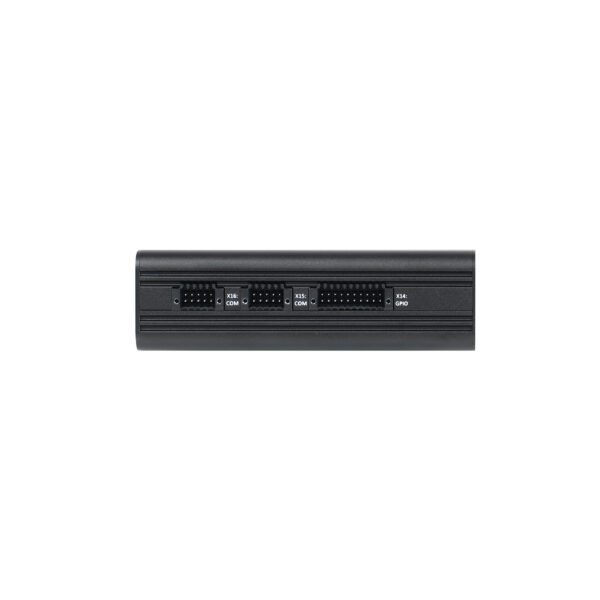

| USB and Connection | 3x USB 3.2 Gen2x1,and 3 USB 2.0 4x COM ports,8x digital inputs and 8x digital outputs |
| Display | 2xDPv1.47680X4320@60Hz |
| Expansion | 1x M.2 E Key 2230 Wi-Fi module/1x M.2 key M PCIEx4 2280 SSD 1x M.2 B Key 2242 SATA/PCIE storage or 3042/3052 cellular module 1x Mini PCle slot(PClex1/USB)/1xNano SIM slot |
| LED | 4 system LEDs |
| EMC Standard | |
| EMC Standard | EN61000-6-2.EN61000-6-4 |
| Environmental | |
| Storage Temperature | -40°C85C |
| Operating Temperature | -20°C~40°C with airflow fan less (higher temperature will be project base) |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Vibration | 1G,with DIN-Rail (EN 60068-2-6) |
| Shock | 15g with 11ms impulse length,18 shocks DIN-Rail (EN 60068-2-27) |
| Mechanical | |
| Degree of Protection | IP 30 |
| Dimension | 180mm (L)x 134mm (W)x 40 mm (H) |
| Net Weight | 1.5KG |
| Optional Accessories | |
| Power Adaptor | 3-pin Connector, 60W, 24V/2.5A |
| Mounting Kit | DIN-Rail mount Wall-mount (project-based) |
| Video Adaptor | DP to VGA/ DP to DVI |
