OSM-S with NXP i.MX 93 family processor
NXP i.MX93, Dual-Core Arm® Cortex®A55+M33 processor
NPU with up to 0.5 TOPS
Onboard 2GB LPDDR4 memory and 16GB storage
Legacy I/O and high-speed interface

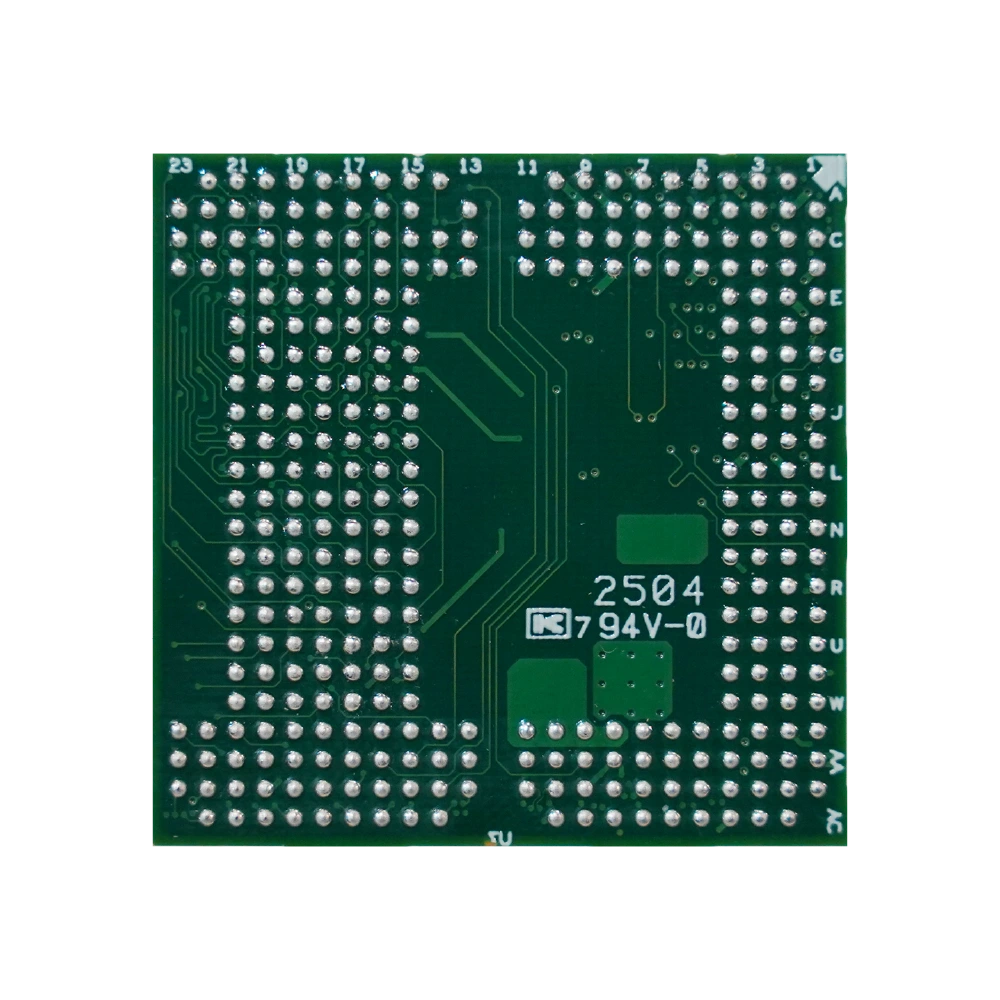

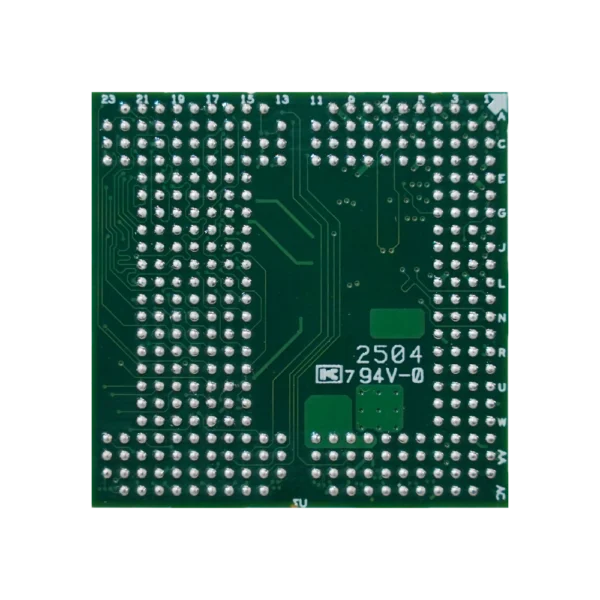

OSM standard v1.2, size-S (30x 30 mm), 332 pins

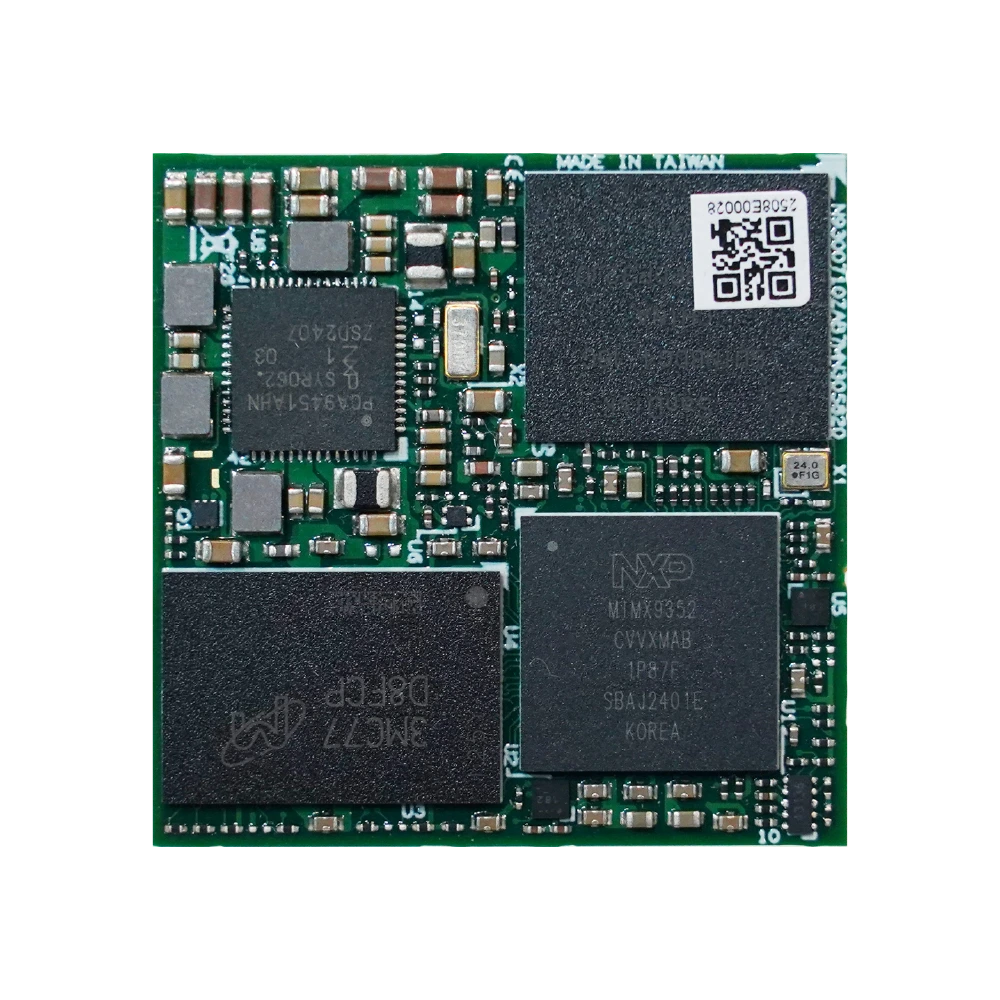

The MN30E-S module, with its 30×30 mm size, integrates the NXP i.MX 93 dual-core processor, providing efficient computing, offering an optimized solution for space-constrained embedded applications. Its built-in 0.5 TOPS NPU supports AI applications such as edge computing and IoT, enabling intelligent functionalities. Equipped with 2GB LPDDR4 memory, 16GB storage, and rich I/O interfaces, it is ideal for space-constrained embedded systems.
| General | |
|---|---|
| OSM Standard v1.2 | Support OSM Size-S |
| CPU | NXP i.MX93, Dual-Core Arm® Cortex®A55+M33 |
| Memory | 2G onboard LPDDR4, 3733MT/s |
| Storage | 16GB onboard eMMC 5.1 flash up to 64GB |
| Power input | 5V DC |
| Operating System | Embedded Linux (Yocto distribution) |
| Basic I/O Interface | |
| Audio | 1x I2S |
| USB | 2x USB2.0/ (1 port with OTG) |
| Display | 1x MIPI DSI |
| Video | Integrated in CPU |
| Camera | 1x MIPI-CSI (2 lanes) |
| Ethernet | 2x GbE LAN (RGMII) (1 port with TSN) |
| Other Legacy I/O | 8x GPIO, 2x I2C, 3x UART(2xRTS/CTS) 2x SPI, 2xCAN Bus, 2x SDIO 2x ADC, 2x PWM, 1x JTAG |
| Mechanical | |
| Form Factor | SGeT OSM Specification v1.2 OSM size S 332 pins |
| Dimension | 30mm(L) x 30mm (W) |
| Environmental | |
| Operating Temperature | -20°C ~ 85°C |
| Humidity | 5-95% RH, non-condensing |
