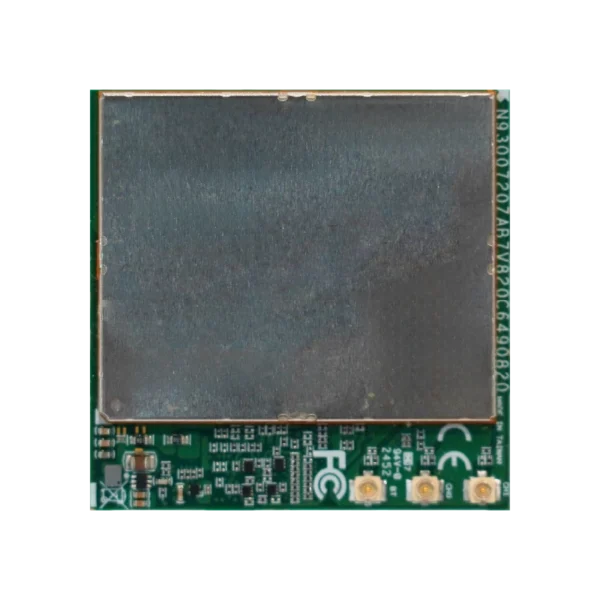

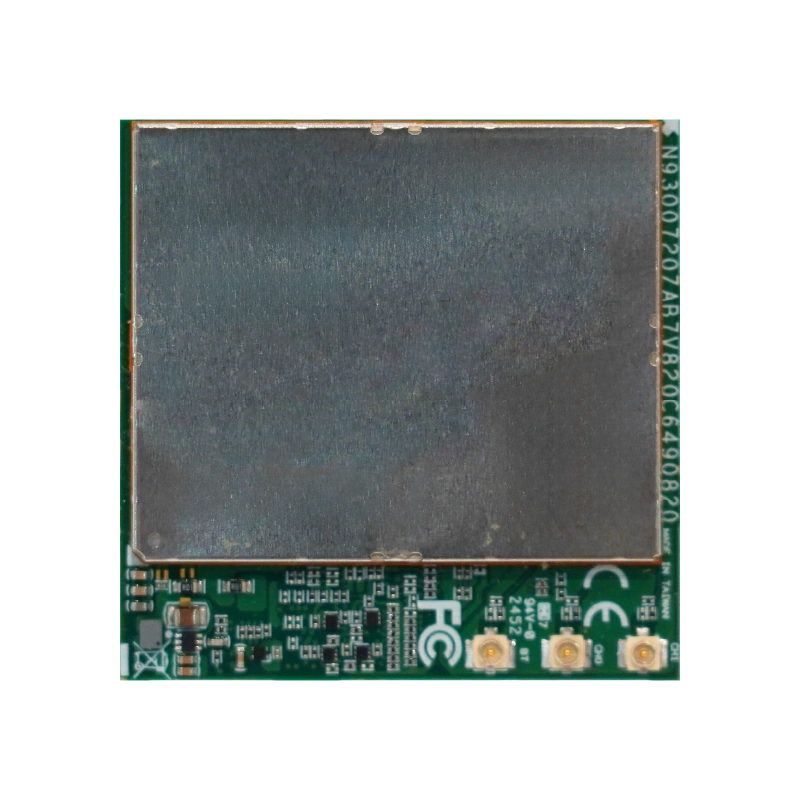

OSM-L module with Qualcomm QCS6490 processor
The MOSM-MQ00P module features the Qualcomm QCS6490 octa-core processor, reaching speeds up to 2.7GHz to deliver powerful edge computing capabilities. Integrated with the Qualcomm® AI Engine, it provides up to 12.5 TOPS for accelerating AI workloads such as image recognition and natural language processing. Equipped with 4GB LPDDR5 memory and 32GB UFS storage, the module supports 4K@60FPS decoding and 4K@30FPS encoding. With up to five MIPI CSI camera interfaces and a wide range of I/O including PCIe, USB 3.1, and GPIO, it meets the demands of advanced multimedia and AI applications. Conforming to the OSM-L v1.2 standard with a compact 662-pin LGA layout, the MOSM-MQ00P is ideal for high-performance, space-constrained embedded systems.
| General | |
| OSM Standard v1.2 | OSM Size-L SoC module |
| CPU | Qualcomm QCS6490 with 1x Kryo Gold plus, 3x Kryo Gold, 4x Kryo Silver up to 2.7GHz |
| Memory & Storage | 1x onboard 8G+ 128GB uMCP |
| Power Input | 5V DC |
| Operating Systems | Android 13 |
| Linux Ubuntu, Yocto | |
| Power | 15W |
| I/O Interface | |
| Audio | 1x I2S |
| PCIe | 1x PCIe x1 (Gen3) |
| USB | 1 x USB 3.1 with DP |
| 1x USB2.0 | |
| 1x Micro USB | |
| Display | 1x DP with USB-C ALT mode |
| 1x DP or HDMI | |
| 1x MIPI DSI | |
| Camera | 2x 4-lane CSI |
| Ethernet | 1x GbE LAN (RGMII) |
| Other Legacy I/O | 2x GPIO, 2x I2C, 3x UART(with 1x console) |
| 2x SPI, 1x SDIO (4bit), 1x JTAG | |
| Mechanical | |
| Form Factor | SGeT OSM Specification v1.2 |
| OSM size L | |
| 662 pins | |
| Dimension | 45mm(L) x 45mm (W) |
