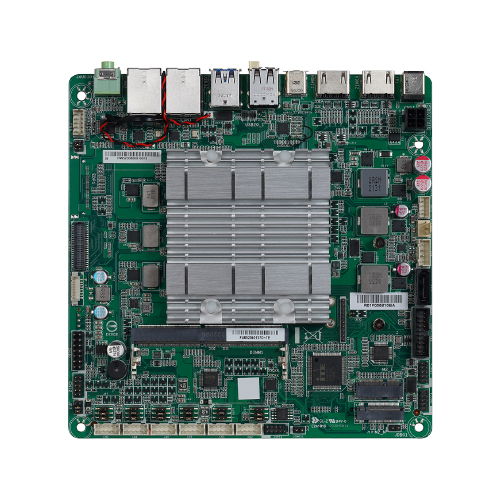

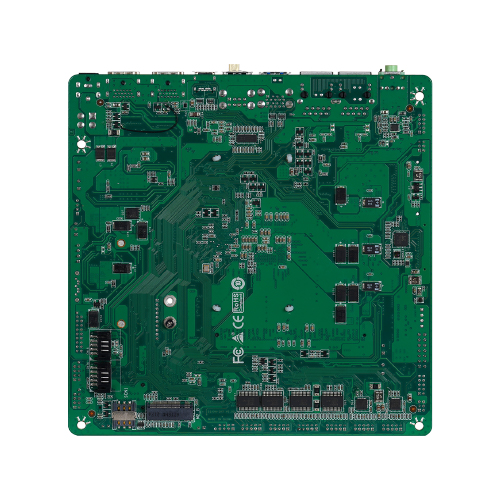

Mini-ITX with Intel Alder Lake N Processor
Mini-ITX with Intel Alder Lake N Processor
Mini-ITX、Intel® Alder Lake N、1 DDR4 SO-DIMM、2x USB3.2、2x USB2.0、オーディオ、2x ギガ Lan、2x HDMI、1 LVDS、1 M.2 B キー 3042/3052 SIM カード スロット、1 M.2 E Key 2230、1 M.2 2280 Key M、6x COM、9 ～ 24V DC IN。
| General | |
| Chipset | Intel® Alder Lake N N100 / i3-N305 (Intel N100, QC, Max Speed Up to 3.4GHz, 6W) (Intel i3-N305, OC, Max Speed Up to 3.8GHz, 15W) |
| Main Memory | 1 x 260-pin socket support DDR4 3200Mhz SO-DIMM |
| Mass Storage | 1 x SATA3 7pin connector 1 x M.2 (M Key type 2242/2280) for storage |
| Expansion Slot | 1 x 260-pin DDR4 sockets 1 x M.2 (E Key, 2230) for WIFI/BT, support Intel CNVi 1 x M.2 (B Key, 3042/3052) & SIM Card Slot for 3G/4G/5G 1 x M.2 (M Key, 2242/2280) for storage |
| LAN | 2 x RTL811H-VB-CG GbE LAN Support PXE boot from LAN, Wake on LAN |
| Sound Codec | Audio Codec: ALC897 |
| Power Input | ATX-PWR (2+2 pin) & 9~24V DC input |
| OS Driver Support | Windows® 11 Linux Ubuntu 20.04 |
| Back Panel I/O | |

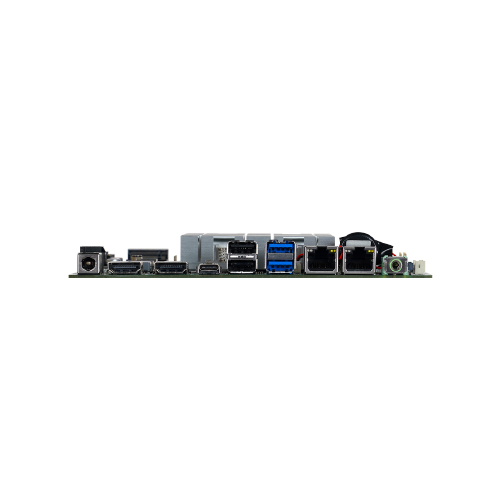

| Back Panel I/O | 1 x DC 9~24V Jack 1 x Type C (USB3.2/PD 20V 5A/DP) 2 x HDMI 2 x USB3.2 2 x USB2.0 2 x RJ45 (GbE) 1 x Audio Jack (Line-out) |
| On Board Connectors & Headers | |
| Display | 1 x 2*20 pin box header for LVDS 1 x 2*3 Pin header for LCD voltage select 1 x 1*8 pin pitch 1.25 box header for LCD backlight power |
| Audio | 1 x 2*5-pin box header for MIC-IN, LINE-IN, Line-Out 1 x 1*4-pin box header for Speaker-Out |
| USB | 2 x 2*5pin header, support 4 x USB2.0 |
| Serial Port | 2 x 2*5 Header for RS232 (COM1/COM2) 2 x 2*5 Header for RS232/422/485 (COM3/COM4) 2 x 2*5 Header for RS232 (COM5/COM6) |
| Others | 1 x Buzzer 1 x 2*5 8-bit DIO pin header 1 x 2*7 front panel pin header 1 x 1*4 pin box header for I2C 1 x 1*5 pin box header for SMBus 1 x 1*4 pin header for CPU FAN 1 x 1*3 pin header for system FAN |
| Environmental | |
| Storage Temperature | -40°C ~ 85°C |
| Operation Temperature | 0°C ~ 60°C |
| Mechanical | |
| Dimension | 170mm (L.) x 170mm (W.) |
