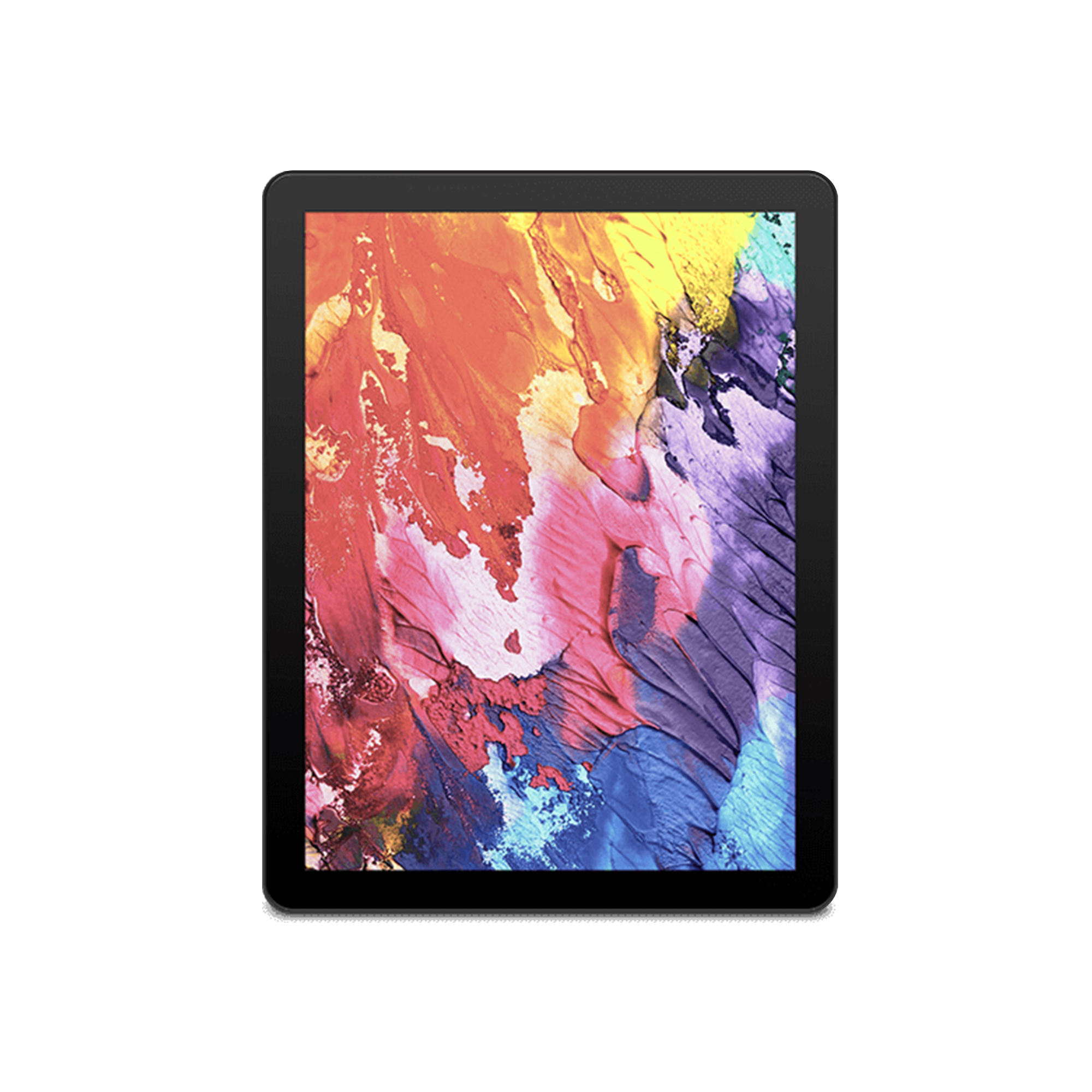

E-Ink Spectra™ 6テクノロジーを採用し、紙のような表示を実現する13.3インチフルカラー電子ペーパーデジタルサイネージ端末です。
WPD-136Eは、E Ink Spectra™ 6テクノロジーを採用した、13.3インチフルカラー電子ペーパーデジタルサイネージ端末です。1200 × 1600の解像度に対応し、鮮明で低反射な紙のような視認性を実現します。クアッドコアCortex-A55プロセッサとAndroid 11を搭載し、CMSによる遠隔管理、デュアルバンドWi-Fi、Bluetooth 4.2、オプションの3G/4Gモバイル通信に対応しています。5000 mAhリチウムイオンバッテリーとIP54保護構造を備え、小売、オフィス、公共情報表示などに適しています。
| Display Module | |
| Screen Size | 13.3” E-Ink glass screen |
| Resolution | 1200 × 1600 |
| CPU | Quad-core Cortex-A55 processor |
| Memory | 2 GB LPDDR4 |
| Storage | 16GB eMMC |
| Bluetooth | Bluetooth 4.2 |
| Software | |
| Operating System | Android 11 |
| Certification | CE, FCC |
| Cellular Connectivity | 3G/4G ( Optional ) |
| E-INK Technology | Spectra™ 6 |
| Basic I/O Interface | |
| Buttons | power |
| USB | 1x Type-C (support OTG) |
| Power Supply | |
| Battery Capacity | 5000mAh lithium-ion battery |
| Battery Life | 30 hours of continuous work |
| Working Temperature | |
| Operating Temperature | 0℃ ~ 40℃ |
| Mechanical | |
| Protection | IP54 |
| Dimension | 255mm(L) x 320mm(W) x 40mm(H) |
| Net Weight | ≤ 1Kg |
