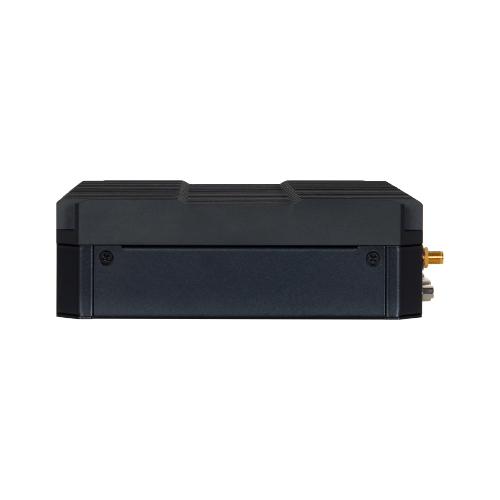

Fanless Box PC with Intel® Raptor Lake processor
Fanless Box PC with Intel® Raptor Lake processor
WSB-RPL00 は、ハイ パフォーマンス コンピューティング Intel Core i、m.2 拡張カード、マルチ IO 拡張、および幅広い温度範囲を備えており、オートメーション システム、マシン オートメーション、ファクトリー オートメーション、IoT プラットフォーム、キャビネット統合に最適です。
| General | |
|---|---|
| Chipset | Intel® Raptor Lake Processor (U300 / i3-1315U / i3-1315URE / i5-1345U / i5-1345URE) |
| Memory | 2 x 260-pin socket support DDR5 4800Mhz SO-DIMM up to 64GB |
| Storage | 1 x M.2 M Key type 2242/2260/2280 w/ PCIe x4 for SSD (Gen4) |
| Display Interface | |
| Display Interface | HDMI: 1 x HDMI 2.0 connector (4096×2160@60Hz) DP : 1 x DP++ 1.4 connector (4096×2160@60Hz) DP : 2 x Type C support DP 1.4a (4096×2160@60Hz) |
| Audio | |
| Audio | Audio Codec: ALC897+ALC105 |
| Ethernet | |
| Ethernet | 2 x 2.5GbE LAN (Intel® 1 x I226V / 1 x I226LM) |
| External I/O Interfaces | |

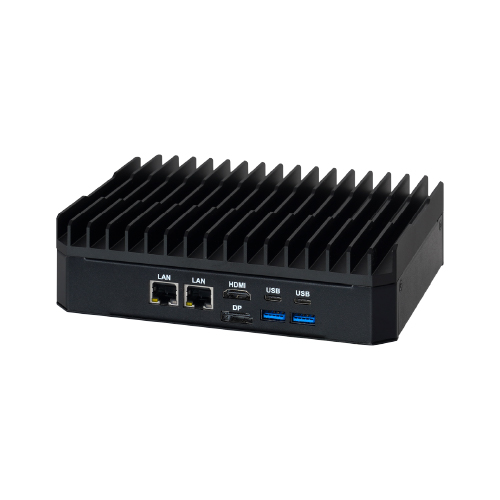

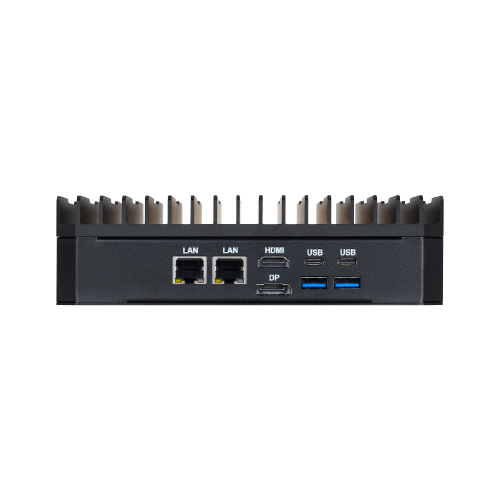

| External I/O Interfaces | 1 x DC 9~24V Jack 1 x HDMI 1 x DP++ 2 x DP (USB Type C) 4 x COM ports 2 x RJ45 (2.5GbE) 1 x Power LED / 1 x HDD LED 1 x Power Key 2 x USB3.2 Gen2 2 x USB2.0 |
| Expansion Slot | |
| Expansion Slot | 1 x M.2 (B Key, 3042/3052) with PCIE+USB3.0 w/SIM slot support 4G/5G 1 x M.2 (M Key, 2242/2260/2280) with PCIEx4 support for storage 1 x M.2 (E Key, 2230) with USB2.0+PCIEx1 support CNVI |
| Serial Ports | |
| Serial Ports | 3 x RS232/422/485 (COM1/COM2/COM3) 1 x RS232 (COM4) |
| Dimension | |
| Dimension | 182mm x 150mm x 48.5mm (L x W x H) |
| Operating Temperature | |
| Operating Temperature | 0 ~ 50 °C (32 ~ 122 °F) |
| Storage Temperature | |
| Storage Temperature | -30 ~ 70 °C (-22 ~ 158 °F) and 40 °C (104 °F) @ 90% RH Non-Condensing |
| Power | |
| Power | 120W Adapter (12V/10A) |
| OS Driver Support | |
| OS Driver Support | Microsoft® Windows 10/11 (64-bit) Microsoft® Windows 10 IoT Enterprise 2021 Linux Ubuntu 20.04 |
