SMARC® Module with Intel® Amston Lake family processor
SMARC® Module with Intel Atom® Processors x7000RE Series (Amston Lake)

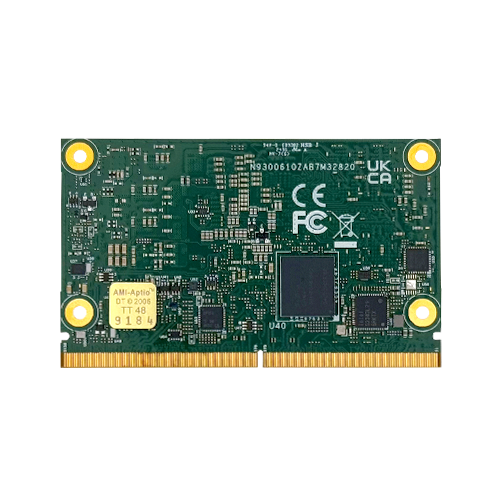

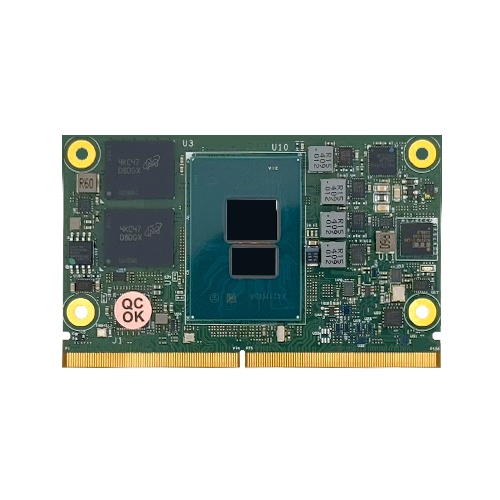

The WSC-M32 is a high-performance SMARC® 2.1 module featuring the Intel® Atom® x7000RE family (Amston Lake), engineered for applications requiring advanced multimedia, connectivity, and energy efficiency. With dimensions of 82mm x 50mm, it offers a compact and low power/high performance for embedded systems and industrial edge computing.
The WSC-M32 supports up to 8-core configurations, delivering enhanced processing capabilities while maintaining low thermal design power (TDP) ranging from 6W to 12W. It integrates onboard LPDDR5 memory up to 16GB with speeds up to 4800 MT/s, enabling high-bandwidth data throughput with In-Band ECC support.
| General | |
| CPU | Intel® Atom® x7211RE, Dual cores, 1.0 GHz, 6W TDP Intel® Atom® x7213RE, Dual cores, 2.0 GHz, 9W TDP Intel® Atom® x7433RE, Quad cores, 1.5 GHz, 9W TDP Intel® Atom® x7835RE, Octo cores, 1.3 GHz, 12W TDP |
| Memory | Onboard 4G/8G/16G LPDDR5 with 4800 MT/s Single memory channel, 32bit x 2 In Band-ECC (Intel® Atom® CPU) |
| Storage | Support onboard eMMC 5.1 flash up to 256GB |
| DisplayPort Interface | |
| DDIA | 24-bit Dual Channel LVDS up to 1920×1200@60Hz |
| DDIB | HDMI 2.0b up to 4K (4096×2160) @60Hz or DisplayPort 1.4 up to 8K (7680×4320)@30Hz/ 4K(4096×2160) @60Hz |
| Audio | |
| Audio | Intel® HD Audio integrated in SoC 1x I2S |
| Ethernet | |
| Ethernet | 2x Intel® i226-IT |
| I/O Interfaces | |
| PCIe | 1x PCIe Gen3 x4 (option with SATA_ 3x PCIe Gen3 x1 |
| USB | 2x USB3.0, 6x USB 2.0 |
| SATA | 1x SATA 3.2 |
| Other I/O Interfaces | |
| Other I/O Interfaces | 2x CAN (option), 2x I²C, 1x PWM, 1x SMBus, 12x GPIO, 2x UART, 1x WDT, 2x FAN Control (option with GPIO) |
| Video | |
| GPU Feature Support | Intel® Gen 12UHD Graphics driven by Intel Xearchitecture | OpenGL 4.6 OpenCL 3.0 | HW accelerated video decoding HEVC/H.264/MPEG2/VP9/VC-1/WMV9/MJPEG | Encoding HEVC/H.264/VP9/MJPEG HDCP 1.4/2.2 for 4K premium content protection |
| Embedded BIOS | AMI UEFI with Fast Boot support l Display Auto Detection l Flash Update l Password Lock l OEM Logo for startup screen |
| Environmental | |
| Form Factor | SMARC® 2.1 |
| Dimension | SMARC module, 82 mm x 50 mm |
| Operating Temperature | -40°C to +85°C, w/ 0.5m/s airflow |
| Humidity | 0-95% RH, non-condensing |
| Power | |
| Standard Input | 5V DC ±5% |
| Power Management | ACPI 5.0 compliant l Fully Integrated Voltage Regulator (FIVR) |
| Operating System | |
| Operating System | Microsoft® Windows 10 IoT Enterprise LTSC 2021 (64-bit) By project request: Yocto LTS kernel 2022 |
