The Most Compact Solution For AI based Vision
The Most Compact Solution For AI based Vision Catcher

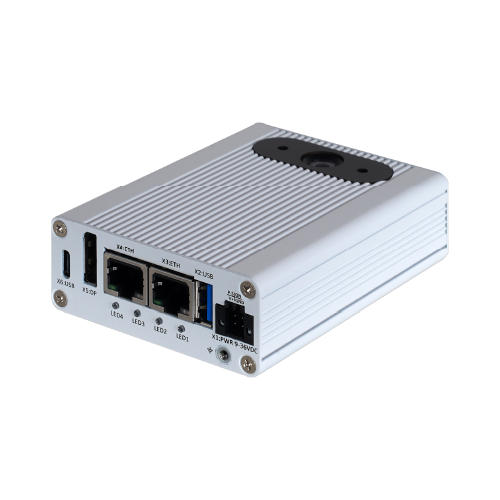

RAYI-7425E 擅長人工智慧物件偵測、自動化光學偵測和光學字元識別，能大幅增進流程效率並提高生產力。其無風扇設計在惡劣環境下也能確保可靠性，精簡的外型可以無縫整合到現有系統中。 RAYI-7425E 以Intel最新架構 Intel Atom X7000E/RE 系列的MIWA-721作為核心，為邊緣運算設備樹立了新標準。 200萬像素微型攝影鏡頭和M.2接口AI加速模組更使其能夠精準高效地處理海量任務
| General | |
|---|---|
| CPU | Support Intel® Atom® Alder Lake-N processors |
| Storage | eMMC64G/128G |
| Memory | LPDDR5 8GB/16GB |
| Power Input | Standard: 12~24V |
| Operating Systems | Windows® 10 loT Enterprise Linux Yocto |

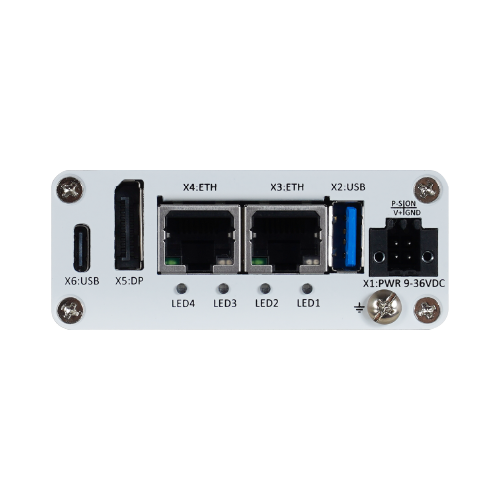

| Basic I/O Interface | |
| Power Connection | 4-Pin Terminal Block |
| Giga LAN | 2x 2.5 GbE LAN (Intel® i226-IT) |
| USB | lx USB3.0 type-C lx USB3.0 type A |
| Display | lx DP |
| Expansion | lx M.2 M Key 2242 PCIEx4 |
| LED | 4 system LEDs |
| Optional Accessories | |
| Power Adaptor | 4-pin Connector; 60W/24V ,40W/l2y and 45W/19V |
| Mounting Kit | Din Rail mount, Wall/Desk/VESA mount by project |
| Environment | |
| Operating Temperature | 20℃~50℃ with airflow |
| Storage Temperature | (-)40℃~85℃ |
| Relative Humidity | 5%~95% (non-condensing) |
| Vibration | DIN Rail-2G rms |
| Shock | Din-Rail-50G half sign |
| Mechanical | |
| Dimension | 100mm(L)x75mm(W)x40mm(H) |
| Net Weight | 0.75KG |

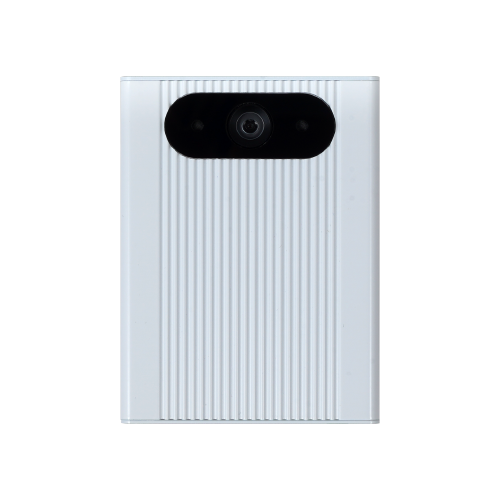

| Camera Spec | |
| Imaging Sensor | 1/2.7 inch CMOS Sensor |
| Total Pixels | 2million |
| Focus Mode | Auto Focus |
| Image Color | 24Bit |
| Field of View(Diagonal) | 96±59 |
| Resolution | 1920*1080@30fps 1280*720@30fps |
| Mic quantity | 2 |
| Pickup Voice Distance | 0-3 meters |
