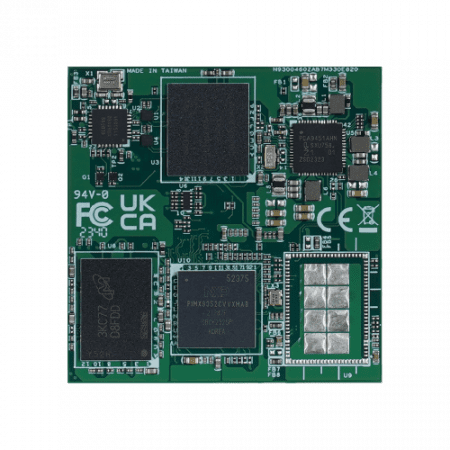

NXP i.MX8M Plus family processor OSM module
The Open Standard Module™ specification allows developing, producing and distributing embedded modules for the most popular ARM and x86 architectures. For a growing number of IoT applications this standard helps to combine the advantages of modular embedded computing with increasing requirements regarding costs, space and interfaces.
| General | |
|---|---|
| CPU | NXP i.MX8M Plus with Quad core Cortex-A53 |
| Storage | 16GB onboard eMMC 5.1 flash 32GB/64GB by project |
| Memory | 2G onboard LPDDR4, 3733MT/s 4GB/8GB by project |
| Power Input | 5V DC |
| Operating Systems | Embedded Linux (Yocto distribution) |
| Basic I/O Interface | |
| Audio | 1x I2S |
| PCI Express | 1x PCIe x1 (Gen3) |
| USB | 4x USB2.0 / (1 port with dual role) 1x USB3.0 |
| Display | 1x 24bit LVDS dual channel 1x HDMI 1x MIPI DSI |
| Video | Integrated in CPU |
| Camera | 1x CSI |
| Ethernet | 2x GbE LAN (RGMII) |
| Other Lagacy I/O | 8x GPIO, 1x I2C, 4x UART(2xRTS/CTS) 2x SPI, 2xC AN Bus, 2x SDIO (4bit) 2x ADC, 4x PWM, 1x JTAG |
| Mechanical | |
| Form Factor | SGeT OSM Specification v1.1 OSM size L 662 pins |
| Dimension | 45 (L) x 45 (W) mm |
| Mechanical and Environmental | |
| Operating Temperature | (-)20°C to +85°C |
| Humidity | 5-95% RH, non-condensing |
