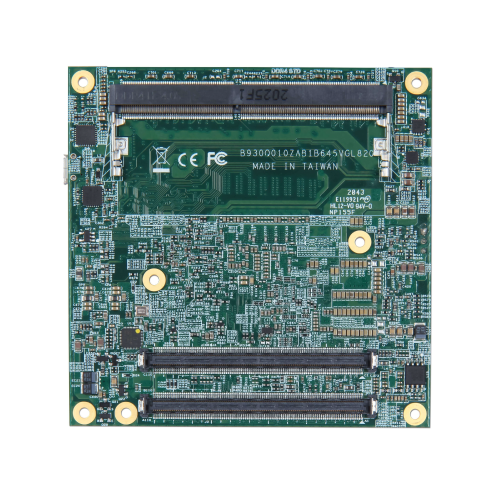

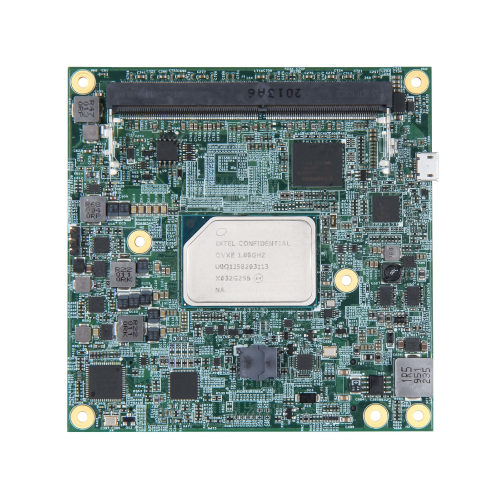

Intel® Atom® Elkhart Lake series SoC based on Type 6 Compact COM-Express® module with 2x DDR4 SD-DIMM Socket
PCOM-B645VGL, a type 6 compact COM Express® (95 x 95 mm) module which is based on Intel Atom® Elkhart Lake x6000, Pentium® N, J Series processors. In this architecture, PCOM-B645VGL provides VGA, LVDS, and eDP, DP, HDMI with 4K resolution, and supports three indepent dis- plays. And it also provides turbo mode up to 3.0GHz, with extending 6x PCIe 3.0, 2x USB 3.2 Gen2, 8x USB 2.0, and 2x SATA III. With ultra low power consumption(4.5 to 12W), wide-temp support, it could provide very energy saving and high efficient performance. PCOM-B645VGL aims in different versatile applications, such as automation, healthcare, retail, transportation.
| Model Name | PCOM-B645VGL |
| Form Factor (mm) | Compact (95 x 95mm) |
| COM Type | Type 6 |
| CPU/ Clock/ Cache | Intel® Atom® J6426 Intel® Atom® x6211E Intel® Atom® x6413E Intel® Atom® x6425E Intel® Atom® x6425RE 2.60 GHz to 3.00 GHz 1.5MB cache |
| Chipset | SoC |
| Memory | DDR4 SO-DIMM up to 32GB 3200 MT/s IB-ECC Dual Channel |
| Storage | 2x SATA III |
| USB | 2x USB 3.2(Option 4x USB 3.2) 8x USB 2.0(Option 1x OTG) |
| PEG | N/A |
| PCI Express | 6x PCIe 3.0 x 1 |
| Ethernet | GPY215 |
| Audio | High Definition Audio |
| Operating Temperature | -40C° to 85°C |
| Graphic Controller | Intel® UHD Graphics 10th |
| Carrier Board | PCOM-C605 (Mini-ITX) PCOM-C60B (ATX) |
