超小型フォームファクタ産業用PC、Intel® Apollo Lakeプロセッサを搭載します
KUBER-2000 series is a palm-sized, flexible and ready-to-use industrial PC designed for a variety of applications in the industry 4.0 world.

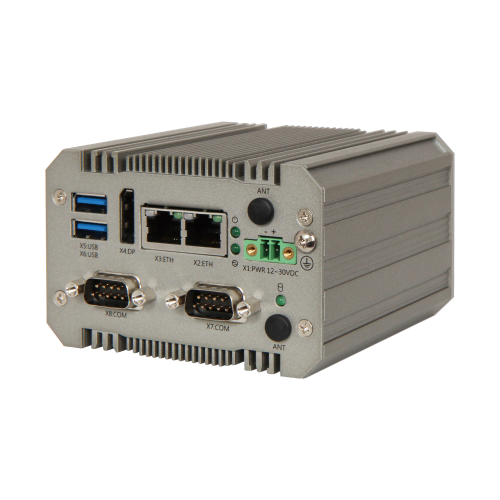

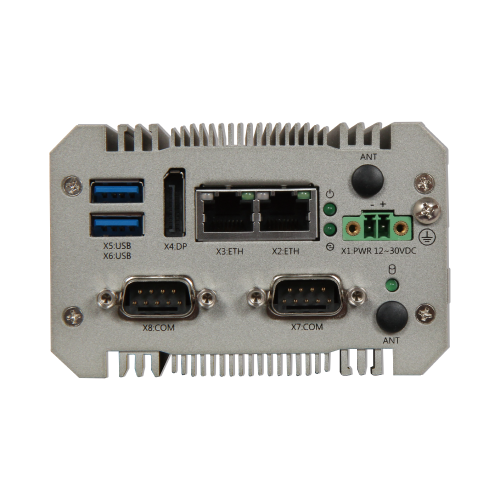

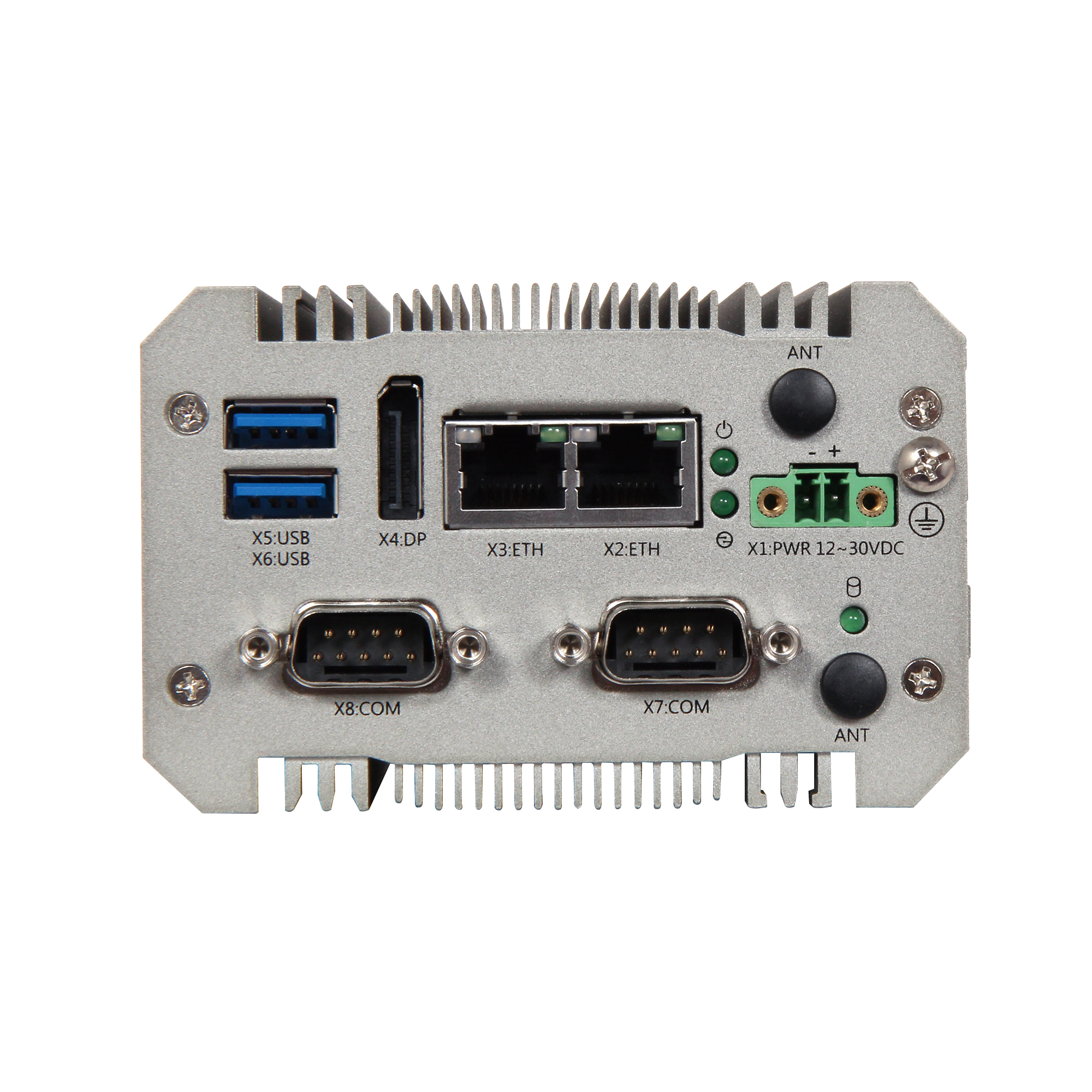

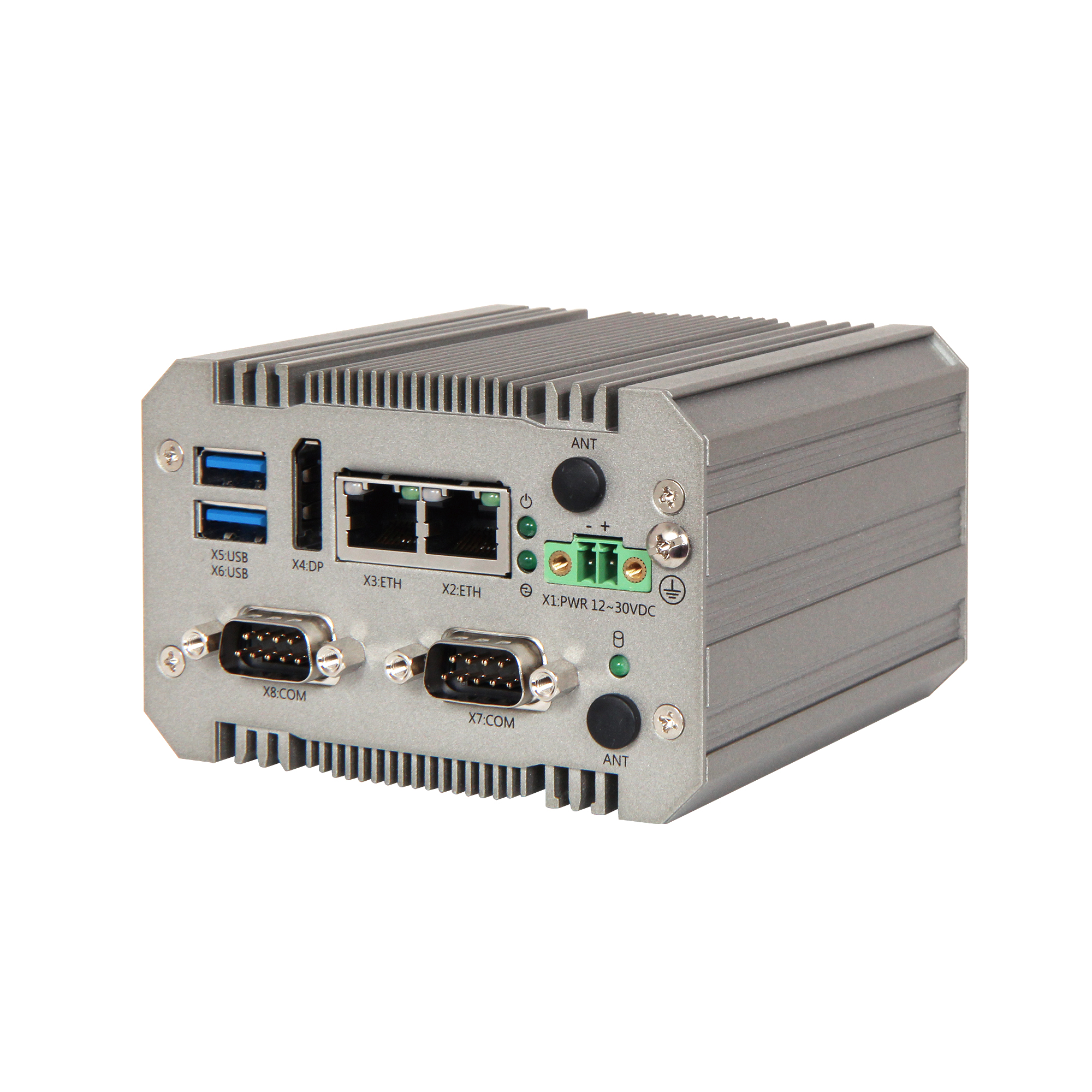

KUBER -212E 産業用コンピュータのサイズは 99mm (L) x 63mm (W) x 92mm (D) で、KUBER シリーズと同じ基本機能セットを提供します。それに加えて、KUBER-212E には 2 つの COM ポート、1 つの RS-232 と 1 つの BIOS 設定可能な RS-232/422/485 があります。追加の M.2 Key B 2242 と Mini PCIe スロットにより、産業オートメーションに焦点を当てた機能セットが完成します。
| General | |
| CPU | Intel® Celeron® N3350, Apollo Lake, 2 cores, 1.1GHz/2.4GHz, 6W TDP |
| Memory | On Board LPDDR4 up to 4GB, 2133 MT/s Dual memory channel, 64bit, non-ECC |
| Mass Storage | eMMC 5.0 onboard flash 32GB up to 256GB |
| Power Input | Standard: 12-30 VDC (+/- 20%) |
| Operation System | Windows® 10 IoT Enterprise LTSB 2016 (64bit) Linux Yocto Warrior v2.7.1 (kernal 4.14) |
| Expansion | 1x M.2 Key E 2230 for wireless card 1x M.2 Key B 2242 for storage 1x Mini-PCIe supports full size mini card |
| Basic I/O Interface | |
| Power Connector | 1x 2-Pin Terminal Block |
| Giga LAN | 2x 10/100/1000 GbE (Intel® i225) |
| USB | 2x USB 3.0 |
| Display | 1x DP v1.4 4096 x 2160 @ 60Hz |
| Extended I/O Interface | |
| Extended I/O Interface | 1x RS 232 1x RS 232/422/485 (BIOS Configurable)EN55035, EN55032), FCC |
| EMC Standard | |
| EMC Standard | CE (EN 61000-6-4/ EN 61000-6-2), FCC CFR Title 47 Part 15 Subpart B, CISPR 22, ANSI C63.4 |
| Environmental | |
| Storage Temperature | -40 °C ~ 85 °C |
| Operating Temperature | -20°C ~ 50°C @ 5~85% RH with no airflow |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Vibration | 1G, with DIN-Rail (EN 60068-2-6) 810G, with Wall mount (MIL-STD-810G 514.7C-V Category-4) |
| Shock | 15g with 11 ms impulse length, 18 shocks in total (EN 60068-2-27) 40g with 11 ms impulse length, 18 shocks Wall mount (EN 60068-2-27) |
| Degree of Protection | IP 30 |
| Dimension | 99mm (L) x 63mm (W) x 92 mm (D) |
| Net Weight | 0.65Kg |
| Mounting | DIN-Rail / Wall Mount |
| Cooling | Fan-less |
| Optional Accessories | |
| Power Adaptor | 2-pin Connector, 60W, 24V/2.5A |
| Mounting Kit | DIN-Rail / Wall Mount |
| Video Adaptor | DP to VGA/ DP to DVI |
