OSM-L Evaluation Kit

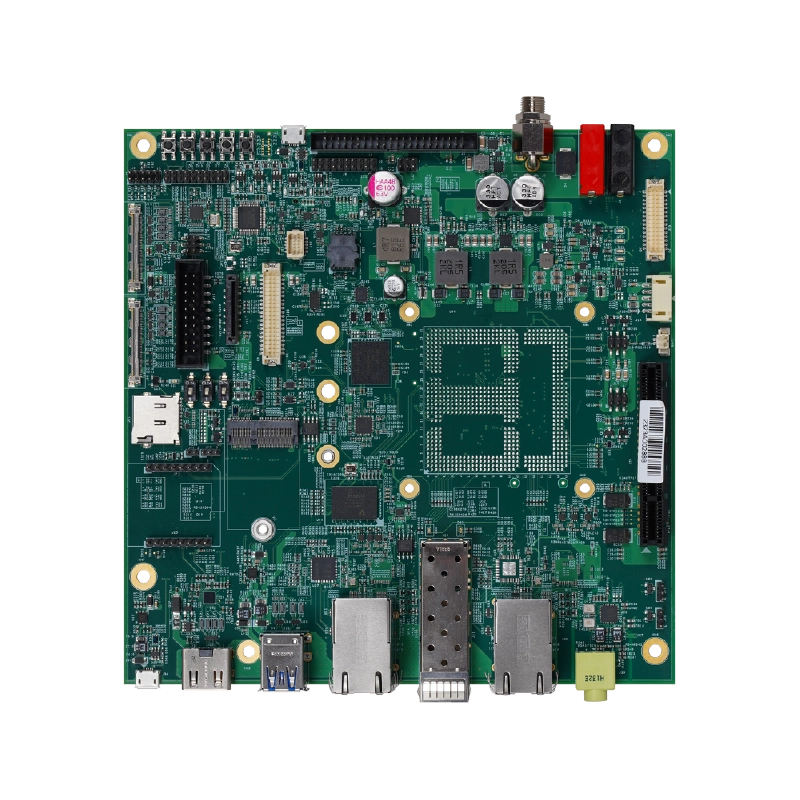

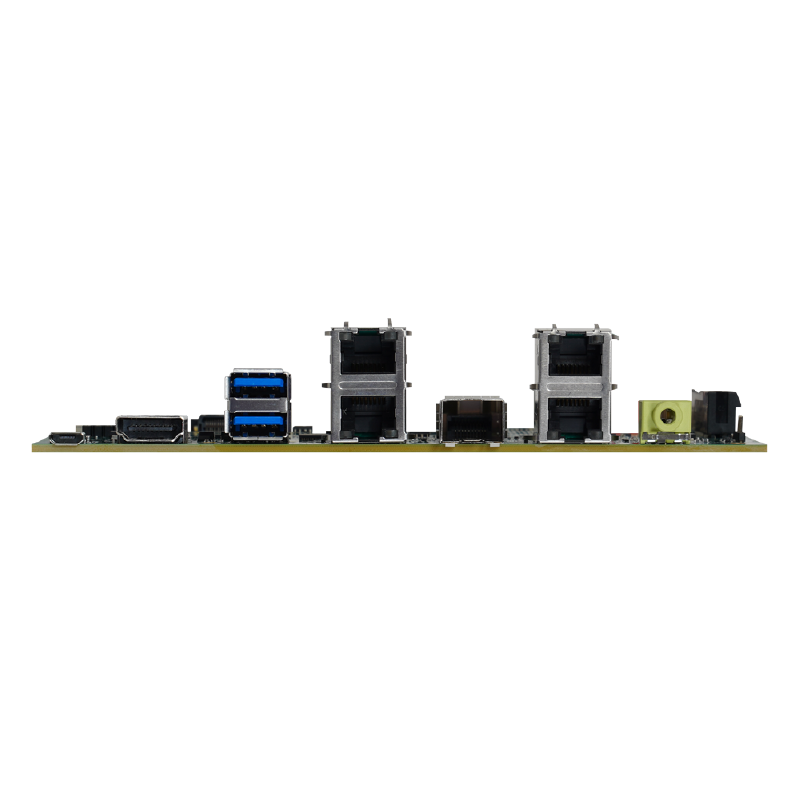

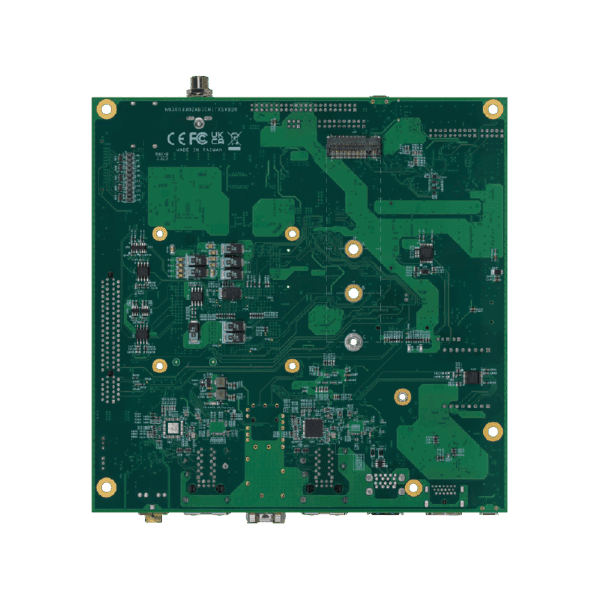

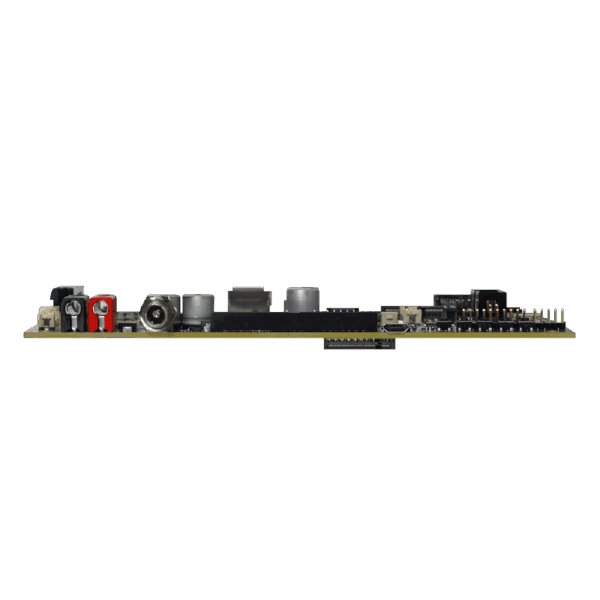

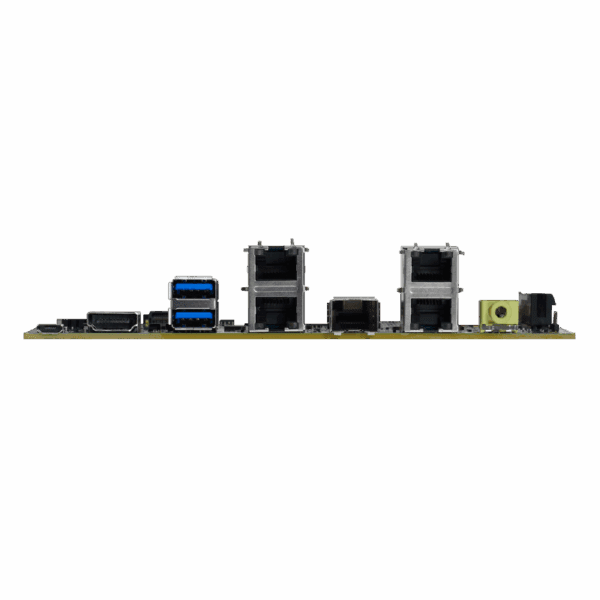

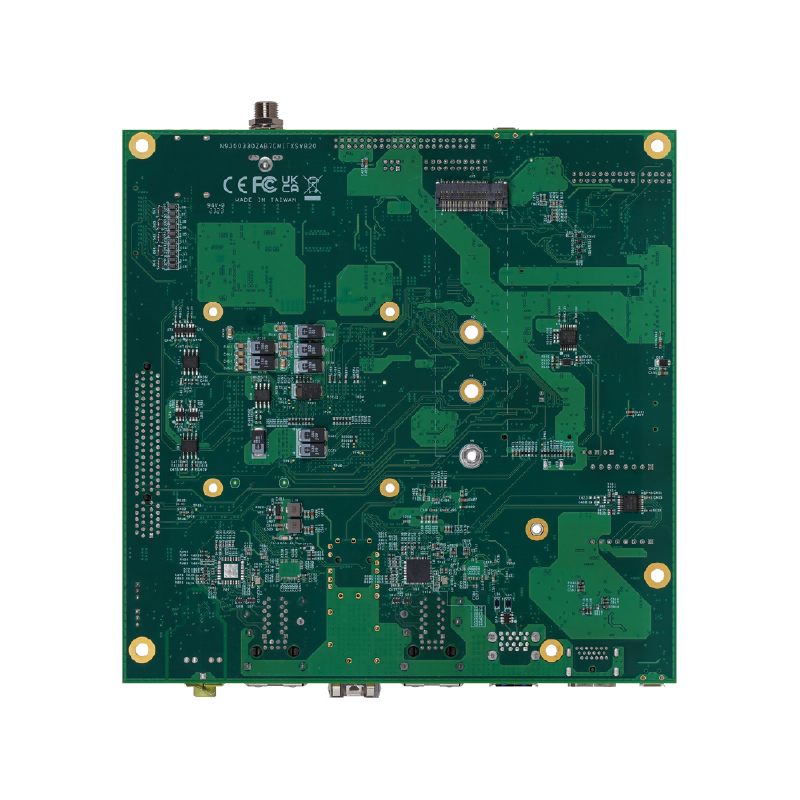

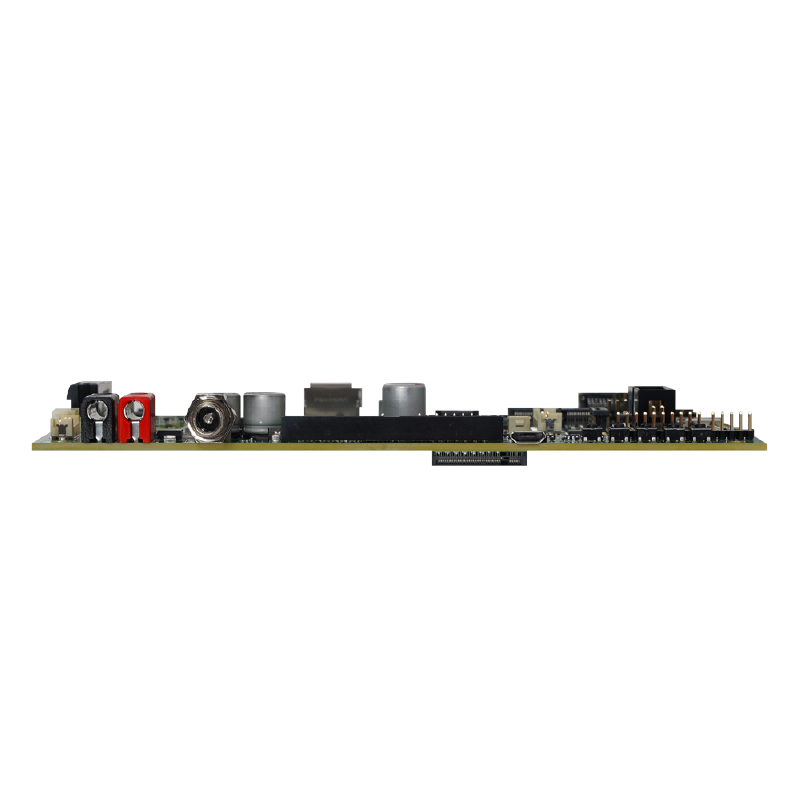

The R400 OSM-L Evaluation Kit is a premier development platform, with a key competitive advantage in its robust support for diverse processor architectures. It not only integrates an OSM-L evaluation board and provides comprehensive legacy and high-speed interfaces via a carrier board, but also, and notably, it offers exceptional compatibility with a wide range of OSM modules, including Mitwell’s MM20E (MediaTek Genio 510/700 series), M330E/M320E (NXP i.MX 93/8M Plus families), and M105 (Intel Amston Lake series processors). This remarkable architectural versatility empowers developers with the extraordinary capability to simultaneously validate both RISC and CISC, two distinct instruction set architectures, on a single platform, dramatically streamlining development workflows and significantly accelerating time-to-market. Furthermore, its rich I/O and expansion support further enhances the kit’s value proposition, making it an ideal choice for accelerating the development of next-generation embedded systems.
| General | |
| OSM Standard v1.1 | Support OSM Size-L SoC module |
| Power Input | Standard Input : 15V~30V |
| I/O Interface | |
| Display | 2x eDP to display expansion board (Support DP or HDMI or eDP) 1xRGB to DF13 connector 2ch LVDS (18/24 bit) 1x DSI to HDMI 1x CSI |
| USB | 1x micro USB2.0 (support OTG) 1x USB2.0 2x USB3.0 |
| Storage | M.2 Key-M 1xMicroSD connector |
| Ethernet | 1x SGMII with TSN 4x GbE Lan RGMII (for ARM only) |
| GPIO | 5x GPIO group (8 bit per group) |
| I2C | 2x I2C |
| UART | 1x UART to USB (console) 3x UART to header 1x UART to M.2 Key-E |
| PCIe | 1x PCIe x1 to M.2 key-E 2242, 1x PCIe x1 to M.2 Key-M 2280, 1x PCIe x4 to M.2 Key-M(2280 support mSATA), 1x PCIex4 slot |
| Audio | 1 x I2S(HDA) to header 1 x I2S(HDA) to M.2 Key-E |
| Expansion | 2x M.2 Key-M 2280 1x M.2 Key-E 2242 1x SPI to Flash Socket 1x SPI to Header 1x mikro bus (UART, SPI). 2x CAN to header, 4xPWM to header, 1x JTAG to header, 2x ADC to header |
| Environmental | |
| Storage Temperature | -40°C ~ 85°C |
| Operating Temperature | 0°C ~ 70°C |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Mechanical | |
| Form Factor | OSM to mini ITX |
| Dimension | 170mm(L) x 170mm (W) |
