Pico-ITX SBC with Intel Atom® processors x7000RE Series and DDR5-4800 SO-DIMM
• Intel Atom® processors x7000RE Series
• DDR5-4800 SO-DIMM 8GB/16GB (option)
• Support 2x USB3.0, 2×2.5Giga Lan, HDMI, and LVDS
• Support multi I/O: 4 Digital I/O,1x I2C
• Support expansion M.2 E Key 2230(USB2.0/PCIex1)
Pico-ITX SBC with Intel Atom® processors x7000RE Series and DDR5-4800 SO-DIMM
| General | |
| CPU | Intel Atom® processors x7000RE Series |
| Memory | DDR5-4800 SO-DIMM: 8G/16G (option) |
| Mass Storage | 1x M.2 M key 2280 (PCIex4/SATA) |
| Power Input | Standard Input :9-12V DC |
| Operation System | Windows® 10 IoT Enterprise LTSC Windows® 11 IoT Enterprise LTSC Linux: Ubuntu 18.04~24.04 LTS/Kernel 5.10 above , Yocto 4.0 |

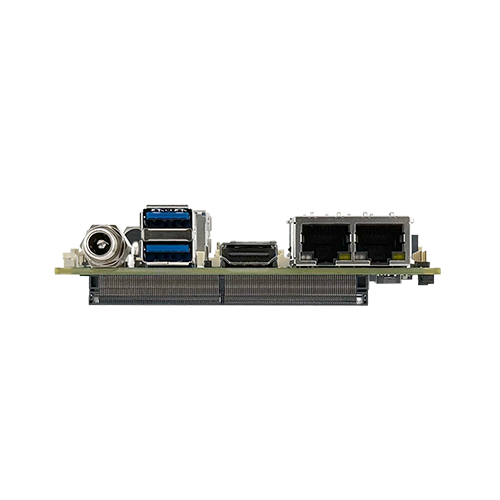

| Back Panel I/O | |
| DC IN | 1x 5.5/2.5 DC Jack / 1x 4 pin terminator |
| USB | 2x USB3.2 type A |
| Display | 1x HDMI |
| Ethernet | 2x 2.5GbE Lan |
| On Board Connectors & Headers | |
| Digital I/O | 2pin input, 2pin output |
| Front Panel | 2x 4pin (PWR button/Reset button/Status LED) |
| Expansion | 1xM.2 M key 2242/2280 (PCIex4/SATA) 1x M.2 E Key 2230 (PCIex1/USB2.0) |
| Environmental | |
| Storage Temperature | -40°C ~ 85°C |
| Operating Temperature | 0°C ~ 60°C |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Mechanical | |
| Form Factor | PICO ITX SBC |
| Dimension | 100mm(L) x 72mm (W) |
