SMARC® Module with MediaTek Genio 510 Application processor
SMARC® Module with MediaTek Genio 510 Processor for AIoT & AI vision

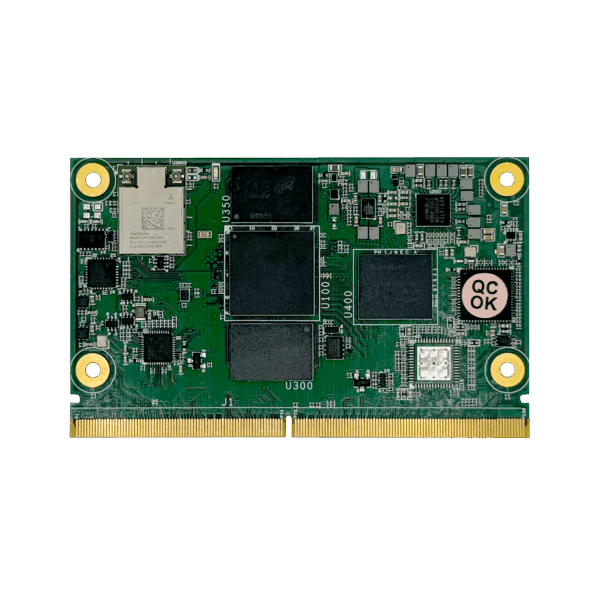

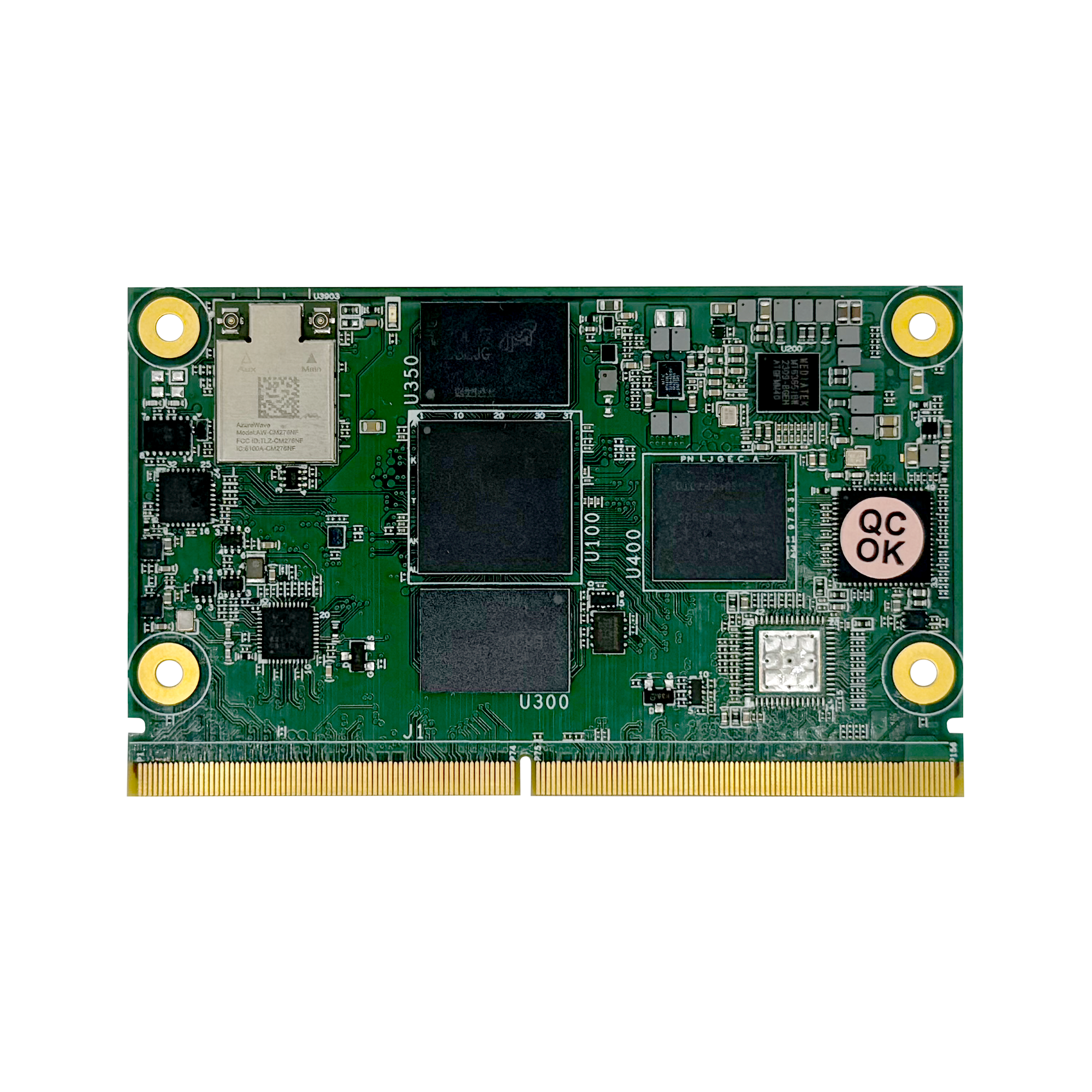

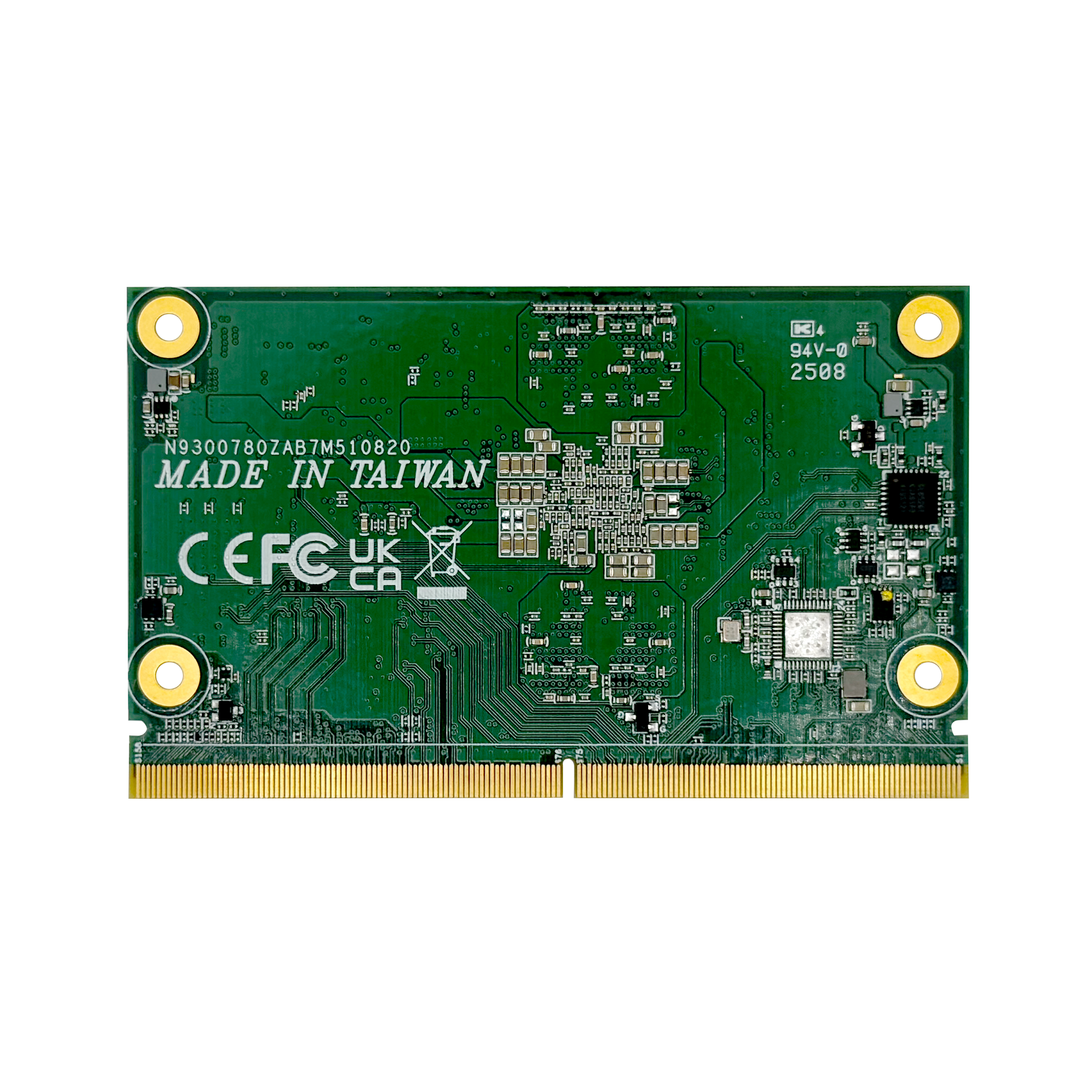

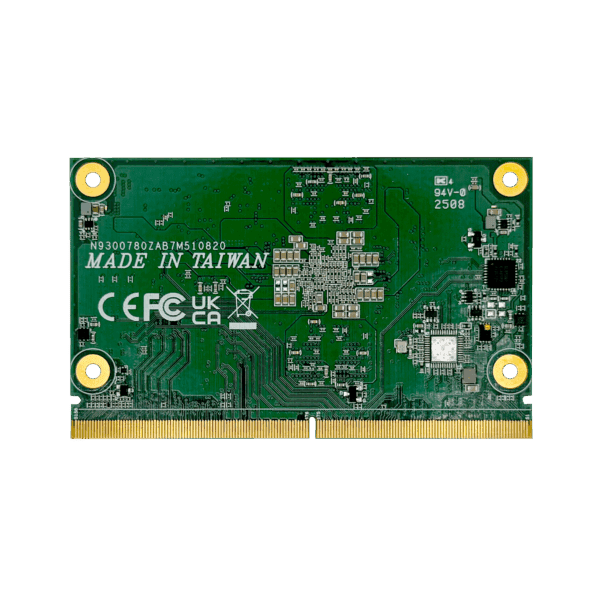

The WSC-M510 is a next-generation SMARC® 2.1-compliant module, built with MediaTek Genio 510 application processor, ideal for smart edge computing, human-machine interfaces (HMI), and AIoT platforms requiring balanced power consumption and CPU/GPU performance.
Featuring a 6-core architecture (2x Arm® Cortex-A78 + 4x Cortex-A55 @ 2.0GHz) and integrated ARM Mali-G57 MC2 GPU, the module delivers powerful 4K multimedia support and AI-enhanced processing capabilities.
| General | |
| CPU | MediaTek MT8370 IoT Application Processor 2x Arm® Cortex®-A78 @ 2.0 GHz 4x Arm® Cortex®-A55 @ 2.0 GHz |
| Memory | Onboard 2G| 4G| 8G(default) LPDDR4 with 3733MT/s |
| Storage | Support onboard eMMC 5.1 flash up to 256GB (default 32GB) |
| RF Module | Option onboard M.2 1216 WiFi+Bluetooth 802.11ac/a/b/g/n. |
| Display Output | Dual-channel LVDS HDMI, DP upto 4K60 |
| Camera | 1x MIPI-CSI 4-lanes 1x MIPI-CSI 2-lanes |
| Audio | 2x I2S |
| Ethernet | 2x 10/100/1000 GbE |
| I/O Interfaces | |
| PCIe | 1x PCIe 2.0 single lane |
| USB | 2x USB3.1, 4x USB 2.0, 1x USB2.0 OTG |
| SDIO | 1x SDIO |
| Serial IO | 2x SPI, 4x I²C, 4x UART (2x 2 wires, 2x 4 wires), 1x CAN, 14x GPIO |
| Video | |
| GPU Feature Support | GPU: ARM Mali-G57 MC2 3D Graphic Accelerator with Vulkan 1.1, OpenGL ES3.2 and OpenCL 2.2 Video encoding: 4K@30fps with HEVC/H.264 Video decoding: 4K@60fps with AV1/VP9/HEVC/H.264 |
| Environmental | |
| Form Factor | SMARC® 2.1 |
| Dimension | SMARC module, 82 mm x 50 mm (3.23” x 1.97”) |
| Operating Temperature | |
| Commercial | 0°C to +70°C, w/ 0.5m/s airflow |
| Industrial | -40°C to +85°C, w/ 0.5m/s airflow |
| Humidity | 0-95% RH, non-condensing |
| Power | |
| Standard Input | 5V DC ±5% |
| Board Support Package | Linux Yocto 4.0 Android |
