Industrial Solid State Drives (SSD)

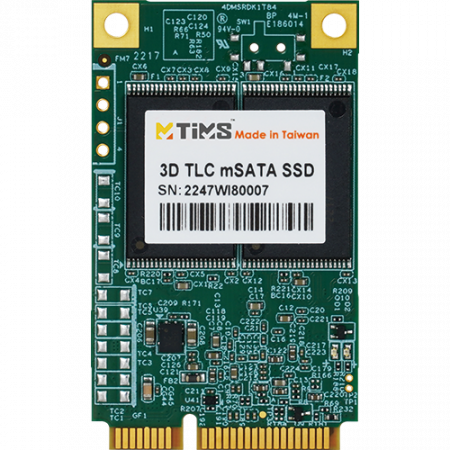

mSATA is designed as the standard MO300 form factor with SATA interface, and support SATA III standard (6.0Gb/s) with excellent performance. Regarding of mechanical interference, Mitwell mSATA absolutely replaces the traditional hard disk and makes personal computer, in any field, smaller and easier. Mitwell mSATA effectively reduces the booting time of operation system and the power consumption is less than hard disk drive (HDD), and complies with ATA protocol, no additional drives are required, and can be configured as a boot device or data storage device.
| Model | mSATA MLC |
| Interface | SATA III (6.0Gb/s) |
| NAND Flash Type | MLC |
| Capacity | 16GB~512GB |
| Sustained Read Performance(MB/sec) | Max to 520 MB/s |
| Sustained Write Performance(MB/sec) | Max to 450 MB/s |
| Standard Operating Temperature (°C) | 0 ~ + 70 (-40~+85°C -Option) |
| Storage Temperature (°C) | -55°C ~ +95°C |
| Shock | 1500G, 0.5ms |
| Vibration | 20G Peak ,7-2000Hz |
| Humidity | 0°C~55°C / 95% RH, 10cycles |
| Operating Voltage | 5.0 V ± 5% |
| MTBF (hours) | >2,000,000 |
| Dimension (mm) | 50.95*30.00*3.5mm |
