Advanced Tiny Industrial System with SMARC Intel® Apollo Lake family processor
Advanced Tiny Industrial System with SMARC Intel® Apollo Lake family processor

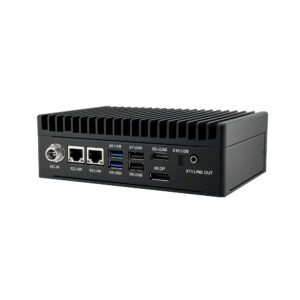

Advanced Tiny Industrial System with Intel® Apollo Lake family processor, ATIS-S1301 Compact Industrial Computer system has size of 116mm (L) x 150mm (W) x 52 mm (D) and offers various IO interfaces, include 2x Gigabit PoE+ ports, 1x 1G LAN port, 2x USB 3.0, 2x USB 2.0, 1x HDMI, 1x COM port. Whether you need to perform data collection and transition, edge computing or communication tasks in applications like industrial automation, ATIS-S1301 can more than handle the task.
| General | |
|---|---|
| CPU | Dual or quad-core Intel Atom® E3900 Series or Pentium® N4200 or Celeron® N3350 Processor SoC |
| Memory | On Board LPDDR4 up to 8GB, 2133 MT/s |
| Mass Storage | eMMC 5.0 onboard flash 32GB, optional up to 256 GB 1x M.2 M key 2242 SATA Storage |
| Power Input | Standard: 12-30 VDC |
| Operation System | Windows® 10 IoT Enterprise LTSC 21H2 (64bit) Linux Yocto Warrior v2.7.1 (kernal 4.14) |
| Basic I/O Interface | |
| Power Connector | 1x 2-Pin Terminal Block |
| Ethernet Port | 2x 10/100/1000 Mbps (Intel® i210) with PoE+ PSE 1x 10/100/1000 Mbps (Intel® i226) |
| PoE Capability | In compliant with IEEE 802.3at PSE, 15W per port |
| USB | 2x USB 3.0 2x USB 2.0 |
| Display | 1x HDMI 1.4 up to 4096 x 2160 @ 30Hz |
| Isolated DIO | 6x DI, 6x DO (24V) |
| Serial port | 1x RS-232 with DB9 connector |
| Expansion | 1x M.2 M key 2242 SATA |
| EMC Standard | |
| EMC Standard | CE (EN55035, EN55032), FCC Class A |
| Environmental | |
| Storage Temperature | -25 °C ~ 85 °C |
| Operating Temperature | -20°C ~ 50°C @ 5~85% RH |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Vibration | 1G, with DIN-Rail (EN 60068-2-6) |
| Shock | 15g with 11 ms impulse length, 18 shocks DIN-Rail (EN 60068-2-27) |
| Mechanical | |
| Dimension | 116mm (L) x 150mm (W) x 52 mm (H) |
| Net Weight | 1 KG |
| Optional Accessories | |
| Power Adaptor | 2-pin Connector, 60W, 24V/2.5A |
| Mounting Kit | DIN-Rail Kit Wall Mount Kit |
