Advanced Tiny Industrial System with Intel® Elkhart Lake family processor
Advanced Tiny Industrial System with Intel® Elkhart Lake family processor

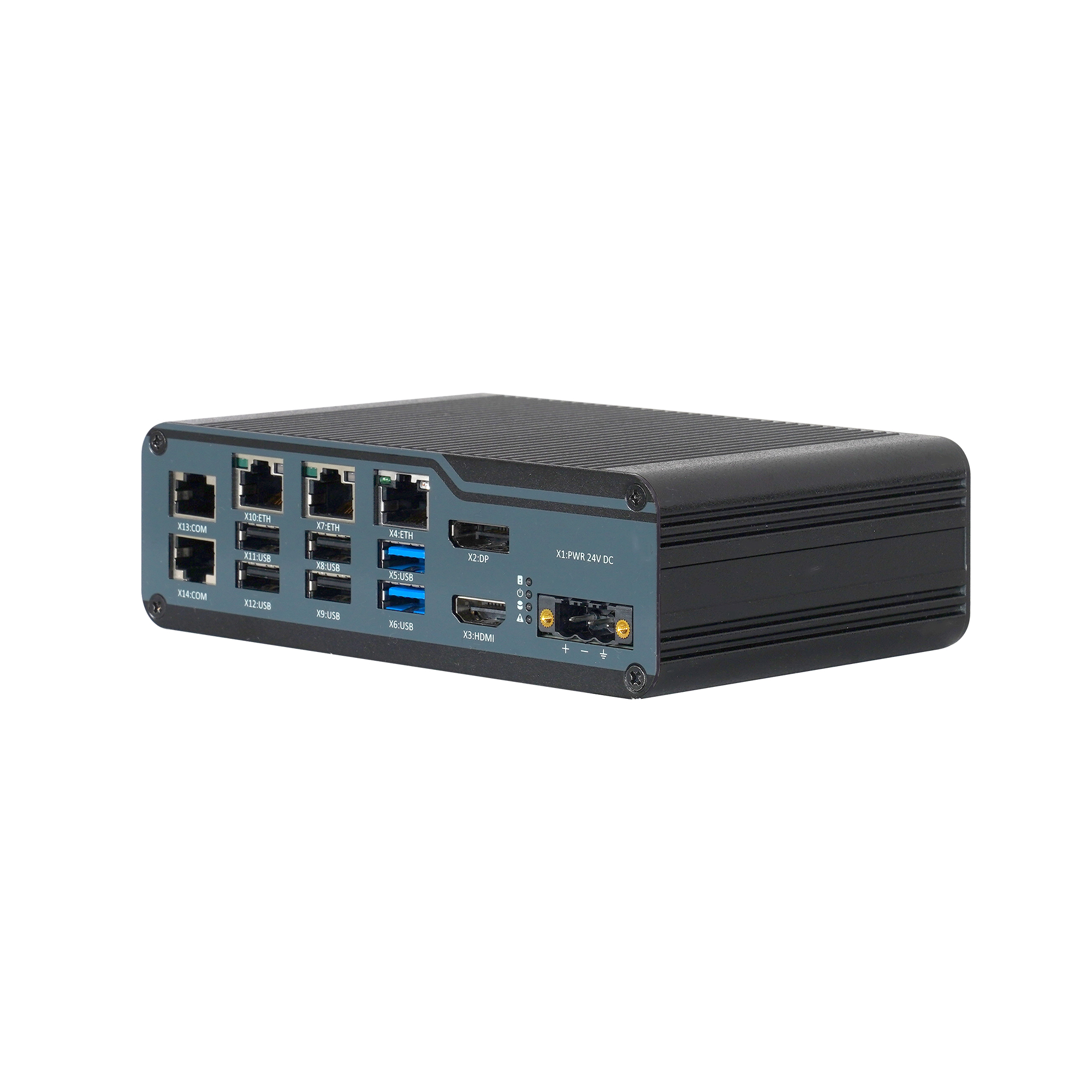

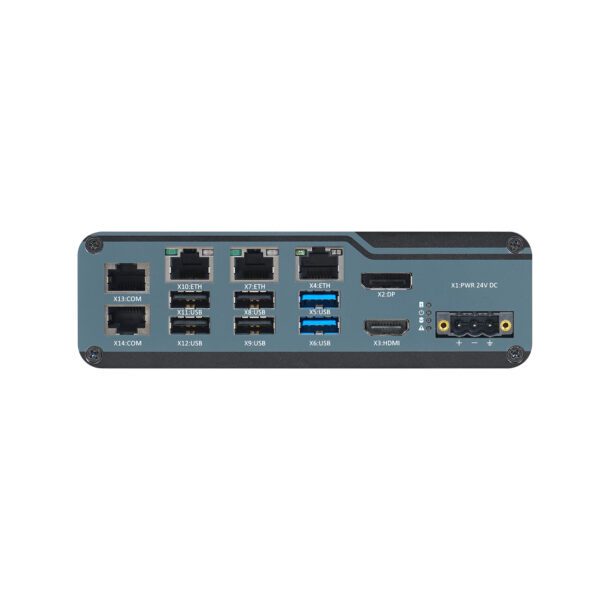

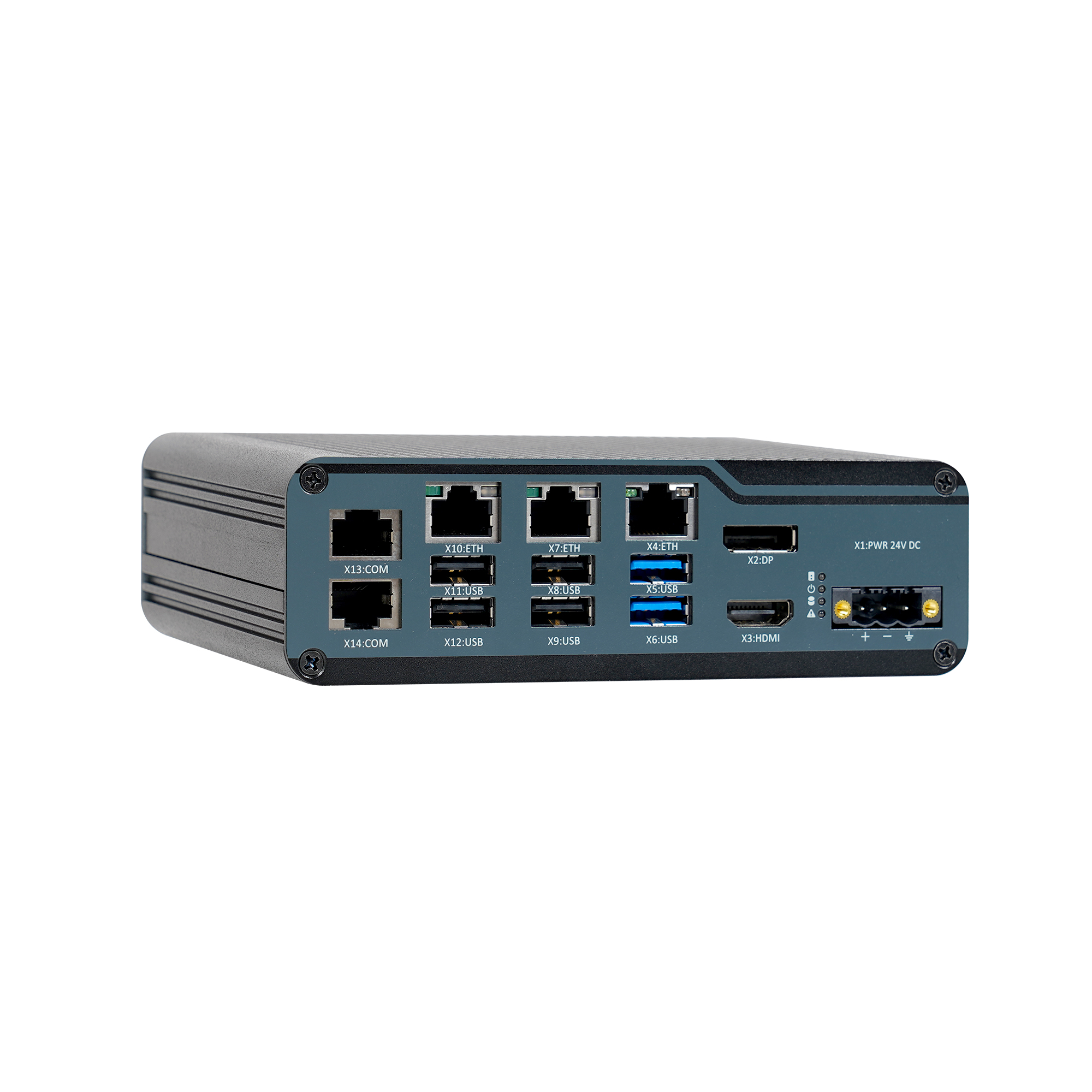

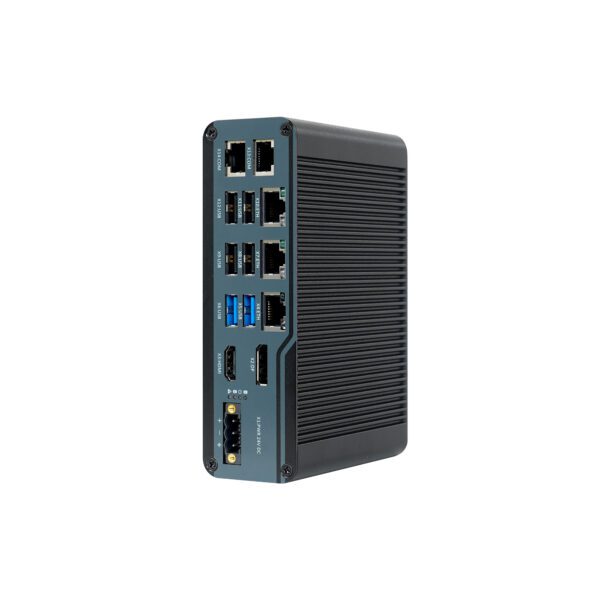

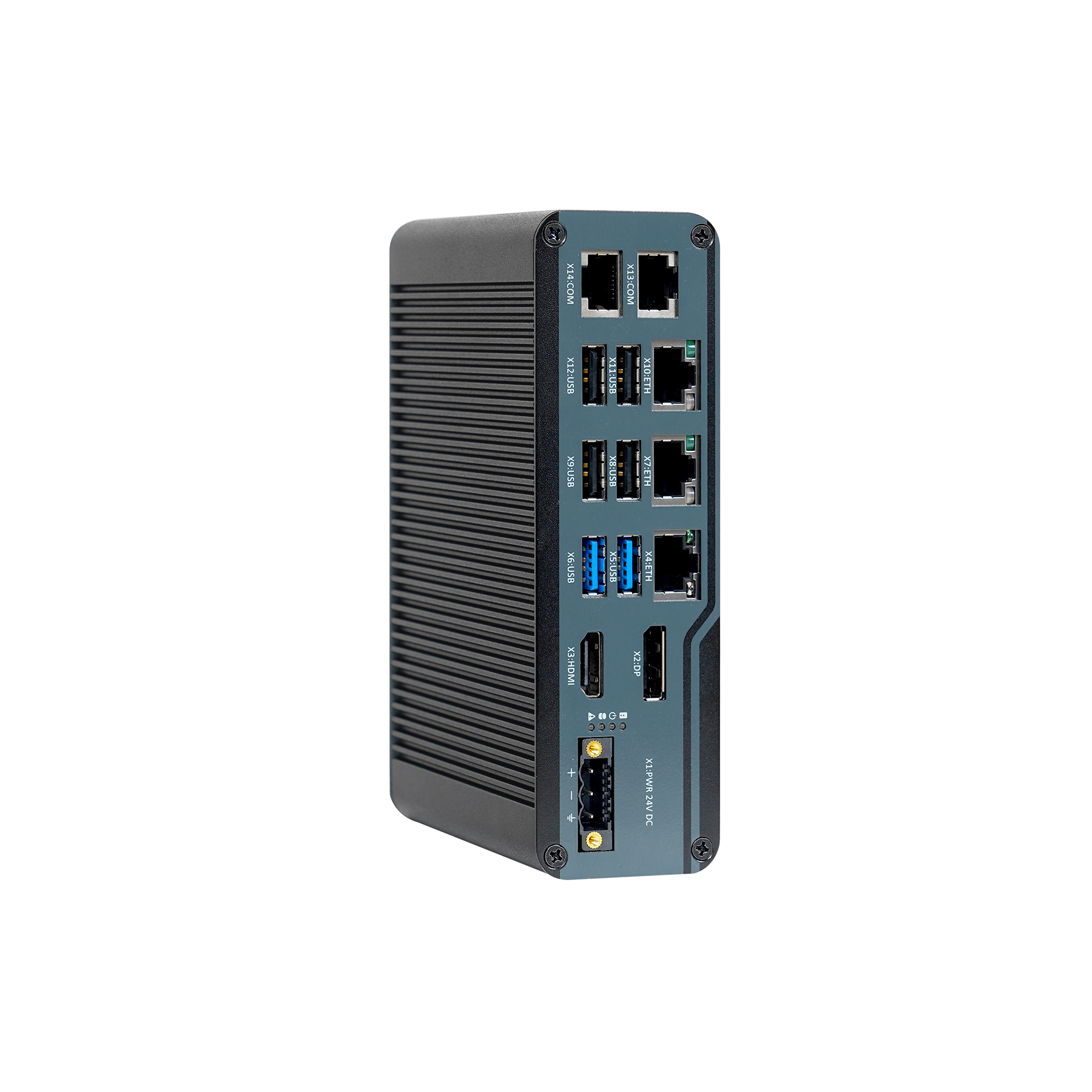

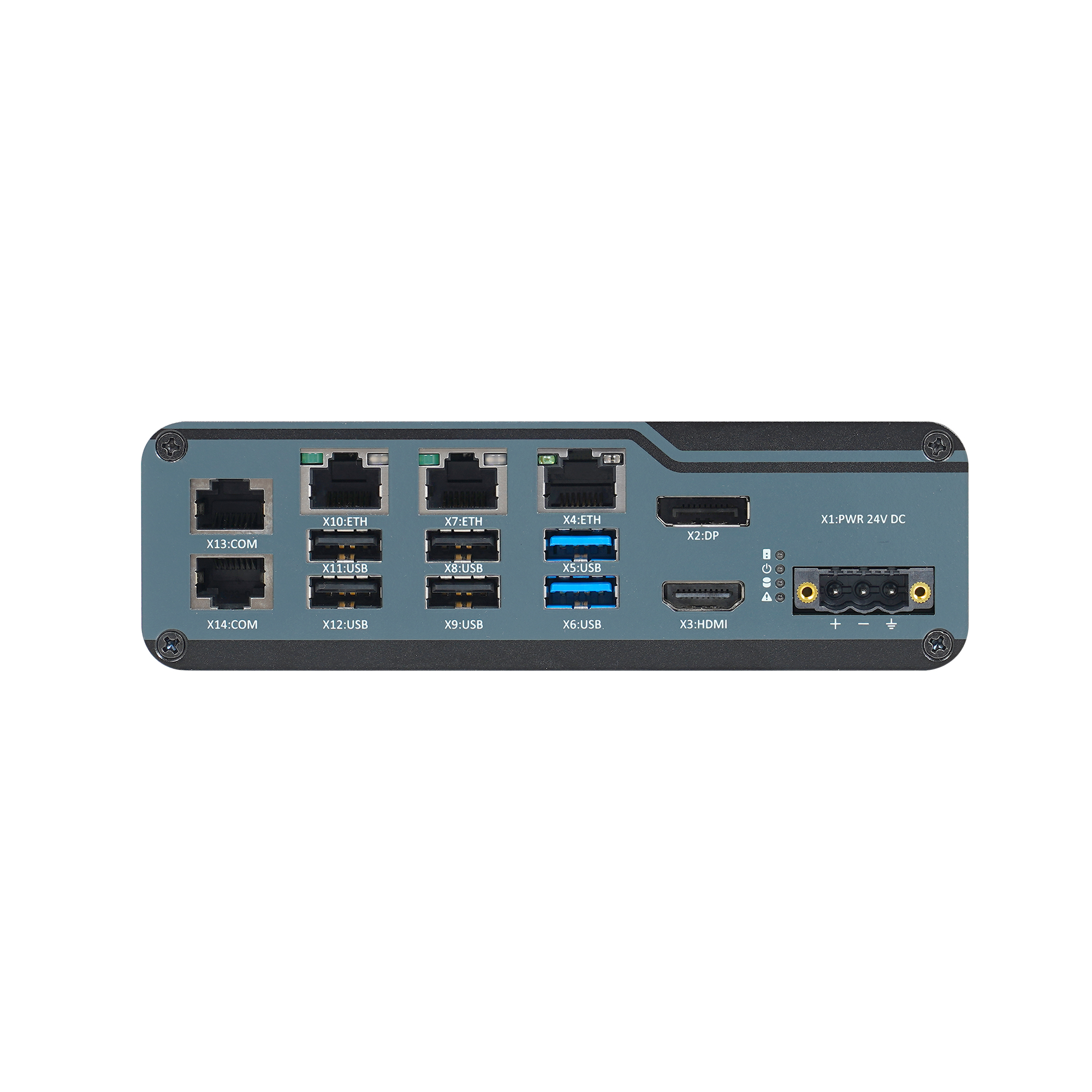

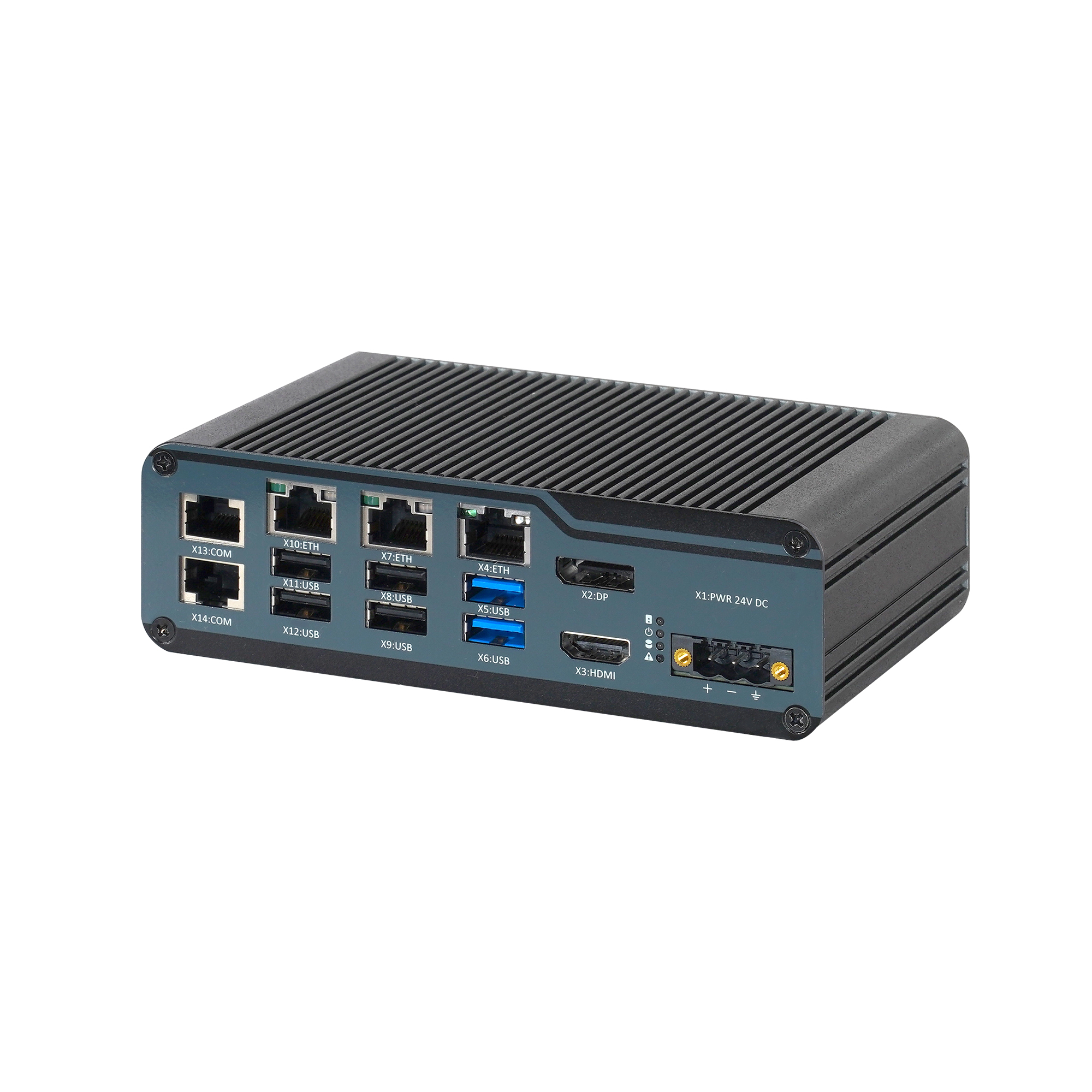

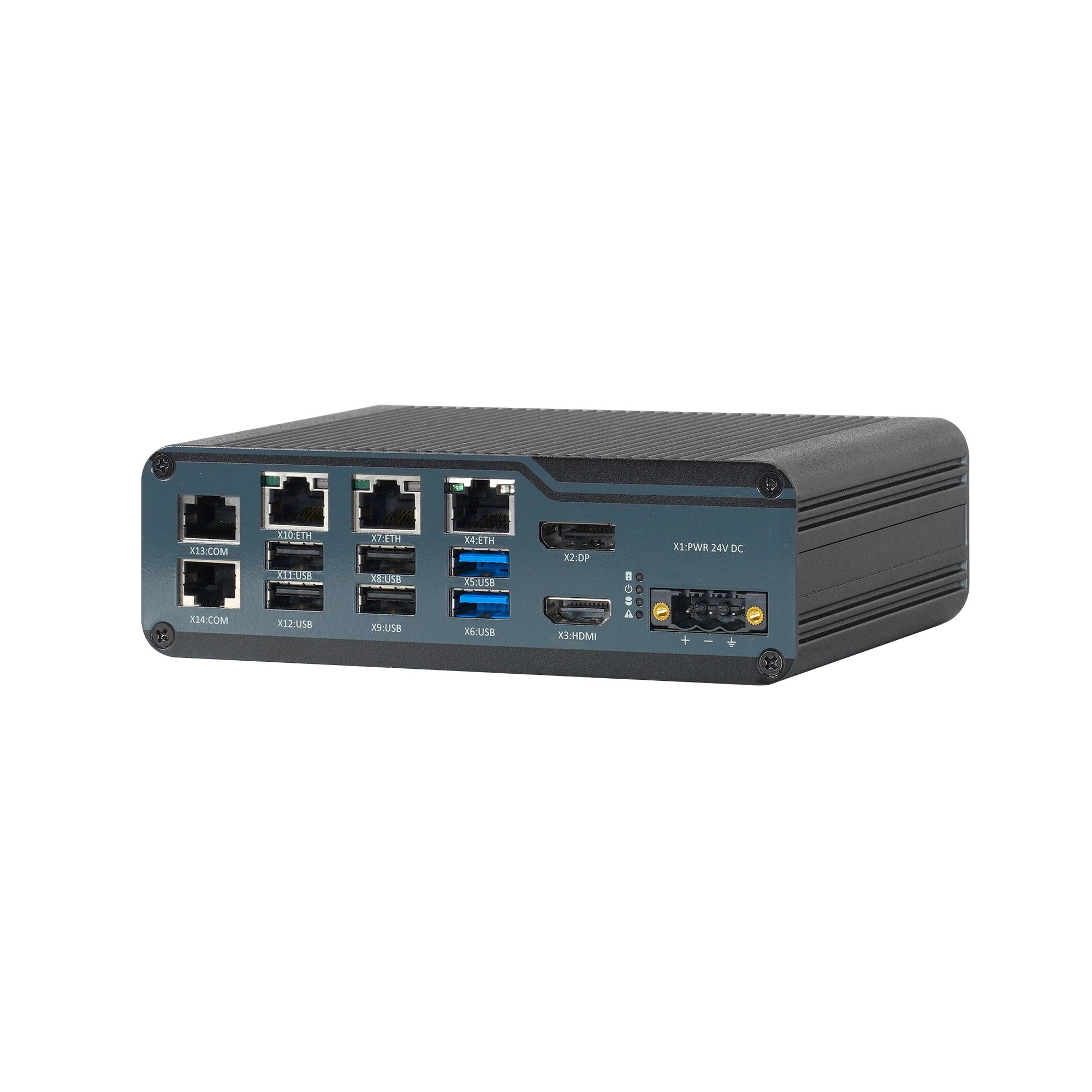

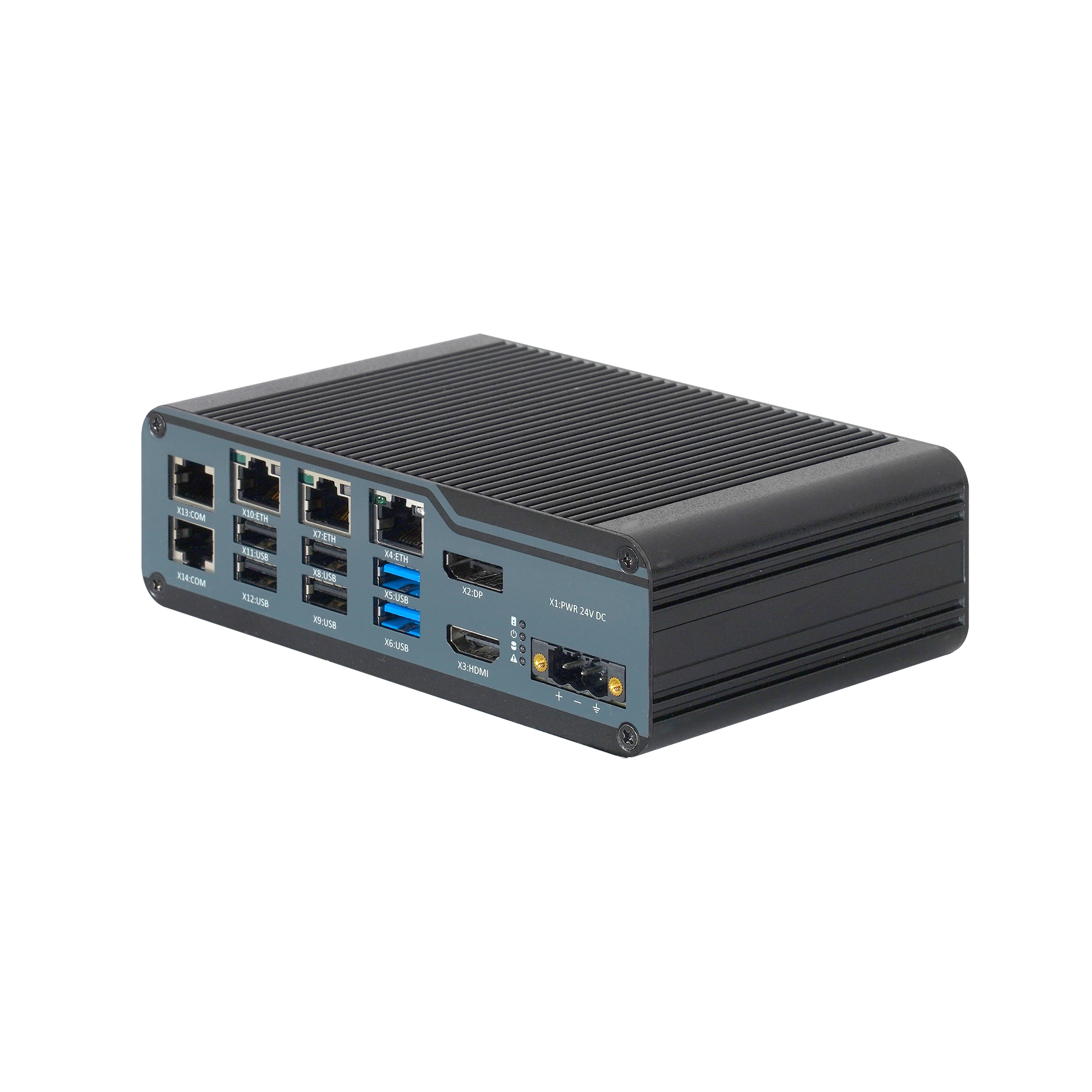

ATIS-S200A is designed for Industrial IoT Solutions, especially in automation utilizes an Intel® Atom® X6000 processor (Elkhart Lake platform) with up to 4 cores; SO-DIMM DDR4 socket DRAM up to 32GB; small form factor of 100 x 150 x 46 mm; energy efficiency (operates at <10W); supports 2x USB 3.0, 4x USB 2.0, 3x GbE (Intel® i226), 1x M.2 2242 storage and 1x Mini-PCIe for expansion (such as Wi-Fi or LTE module), one SIM card socket and 4K DP/HDMI display. Whether you need to perform data collection and transition, edge computing or communication tasks in applications like industrial automation, Mitwell’s ATIS-S200A can more than handle the task.
| General | |
|---|---|
| CPU | Intel® Atom® x6211E, Dual cores, 1.3 GHz, 6W TDP Intel® Atom® x6413E, Quad cores, 1.5 GHz, 9W TDP Intel® Atom® x6425E, Quad cores, 2.0 GHz, 12W TDP |
| Memory | 1x DDR4 3200MT/s SODIMM up to 32GB |
| Mass Storage | M.2 Key B 2242 SSD x1(SATA or PCI-e) up to 256GB |
| Power Input | Standard: 24 VDC |
| Operation System | Windows® 10 IoT Enterprise LTSB 2016 (64bit) Linux Yocto Warrior v2.7.1 (kernal 4.14) |
| Basic I/O Interface | |
| Power Connector | 1x 3-Pin Terminal Block |
| Giga LAN |
3x 10/100/1000/2500 Mbps (Intel® i226) |
| USB |
2x USB 3.1 |
| Display |
1x DP v1.4 up to 4096 x 2160 @ 60Hz |
| Serial | 2x RJ45 COM port (RS-232/422/485) |
| Expansion Slot | |
| Expansion Slot | 1x Mini-PCIe for LTE/WiFi module 1x SIM card socket |
| EMC Standard | |
| EMC Standard | CE (EN61000-6-2 / EN61000-6-4), FCC (CFR Title 47 Part15 Subpart B: 2021 Class A) |
| Environmental | |
| Storage Temperature | -25 °C ~ 85 °C |
| Operating Temperature | -20°C ~ 50°C @ 5~85% RH |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Vibration | 1G, with DIN-Rail (EN 60068-2-6) |
| Shock | 15g with 11 ms impulse length, 18 shocks DIN-Rail (EN 60068-2-27) |
| EMC Standard | 1CE (EN55035, EN55032), FCC |
| Mechanical | |
| Degree of Protection | IP 30 |
| Dimension | 100mm (L) x 150mm (W) x 45 mm (H) |
| Net Weight | 1 KG |
| Optional Accessories | |
| Power Adaptor | 3-pin Connector, 60W, 24V/2.5A |
| Mounting Kit | DIN-Rail |
| Video Adaptor | DP to VGA/ DP to DVI |
