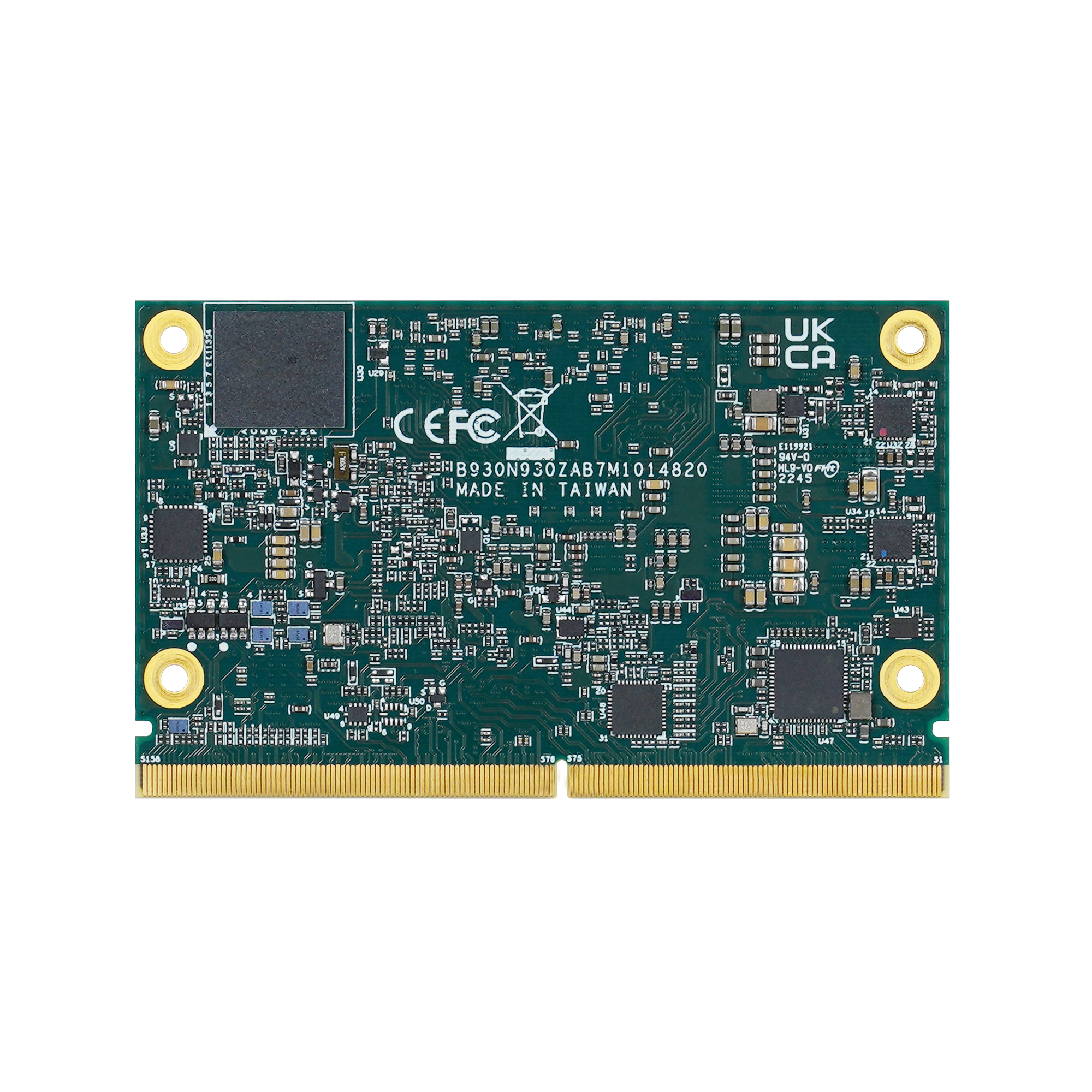

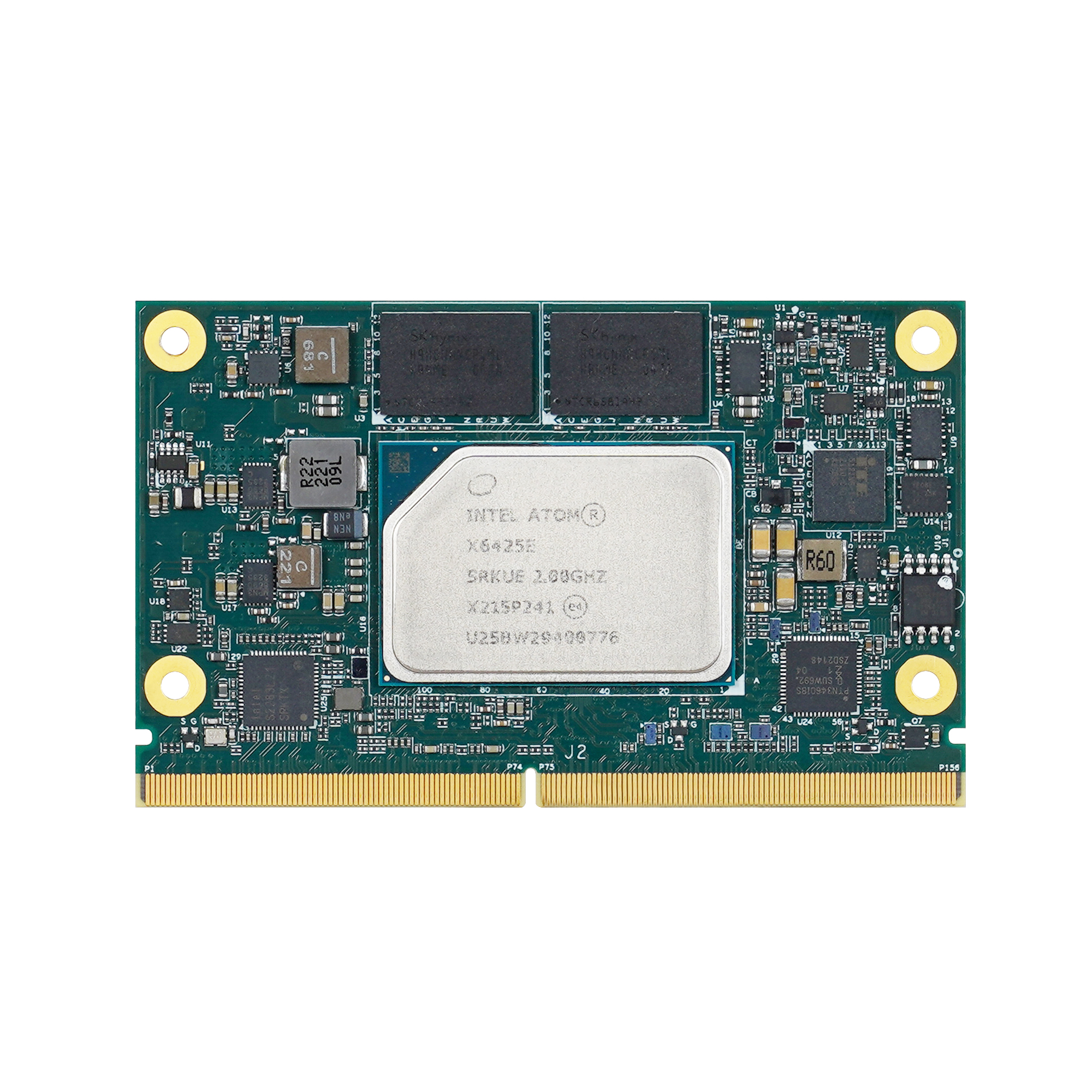

PSMC-M1014

SMARC® Module with Intel® Elkhart Lake family processor

Features

Intel® AtomTM x6000E / Pentium® / Celeron® processors
On Board LPDDR4 SDRAM up to 8GB
Support 24-bit LVDS, HDMI/DP output
Dual GbE(Opt.), Four PCI Express lanes, two USB 3.0 and up to six USB 2.0
One SATA 3.0, on Board eMMC 5.0, on Board TPM(Opt.)

SMARC® Module with Intel Atom® x6000E series Processor (Elkhart Lake) family processor

The SMARC (“Smart Mobility ARChitecture”) is a versatile small form factor computer module definition targeting applications that require low power, low costs, and high performance. The PSMC-M1014 size is 82mmx50mm, powered by Intel Elkhart Lake platform, a new generation of its predecessor, Apollo Lake. PSMC-M1014 has many advantages such as better computing and graphics engine, 4K display (4096 x 2160 @ 60Hz) but no power consumption increase, TDP from 6W to 12W. The PSMC-M1014 has on-board LPDDR4, capacity from 2GB to 8GB, to support data transfer speeds of up to 3200MT/s, which is nearly 30% faster than previous generation.

General
CPU	Intel^® Celeron^® N6210, Dual cores, 1.2 GHz, 6.5W TDP Intel^® Celeron^® J6412, Quad cores, 2.0 GHz, 10W TDP Intel^® Atom^® x6211E, Dual cores, 1.3 GHz, 6W TDP Intel^® Atom^® x6413E, Quad cores, 1.5 GHz, 9W TDP Intel^® Atom^® x6425E, Quad cores, 2.0 GHz, 12W TDP
Cache	4 MB L3 cache
Memory	Onboard 2G/ 4G/8G LPDDR4 with 3200 MT/s Dual memory channel, 64bit In Band-ECC (Intel® Atom® CPU)
Storage	eMMC 5.0 onboard flash up to 64 GB
DisplayPort Interface
LVDS	24-bit Dual Channel LVDS up to 1920×1200@60Hz Or eDP 1.3 (4096 x 2160p @ 60Hz) (signal shared with LVDS by BOM select)
DDI2	DisplayPort 1.4 up to 8K(7680×4320)@30Hz/ 4K(4096×2160) @60Hz Or HDMI 2.0b up to 4K(4096×2160) @60Hz
Ethernet	Up to 2x Intel® i226
Audio	Intel^® High Definition Audio
I/O Interfaces
PCIe	4x PCIe x1 or 1x PCIe x4 Gen3
USB	4x USB2.0 l 2x USB 3.1/2.0
SATA	1x SATA 3.0 (6 Gbit/s)
Other I/O Interfaces	1x SDIO, 1x SATA 3.0, 4x I²C from SoC, 1x I²C (EC optional), 1x SMBus(EC optional), 2x HSUART, 2x UART, 12x GPIO
Video
GPU Feature Support	Intel® Gen 11 LP Graphics supporting DirectX 12 \| OpenGL 4.5 OpenCL 1.2 \| OpenGL ES 3.1 \| HW accelerated video decoding HEVC/H.264/MPEG2/VP9/VC-1/WMV9/MJPEG \| Encoding HEVC/H.264/VP9/MJPEG HDCP 1.4/2.3 for 4K premium content protection
Embedded BIOS	AMI UEFI with Fast Boot support l Display Auto Detection l Flash Update l Password Lock l OEM Logo for startup screen
Mechanical and Environmental
Form Factor	SMARC 2.1
Dimension	SMARC module, 82 mm x 50 mm
Operating Temperature	Commercial: 0°C to +60°C Industrial: -25oC to +85oC
Humidity	10-90% RH operating, non-condensing 5-95% RH storage (and operating with conformal coating)
Power
Standard Input	5V DC ±5%
Power Management	ACPI 5.0 compliant with battery support
Power Consumption	6W~12W (CPU)
Operation System	Windows 10 Enterprise, Windows 10 IoT, Linux
