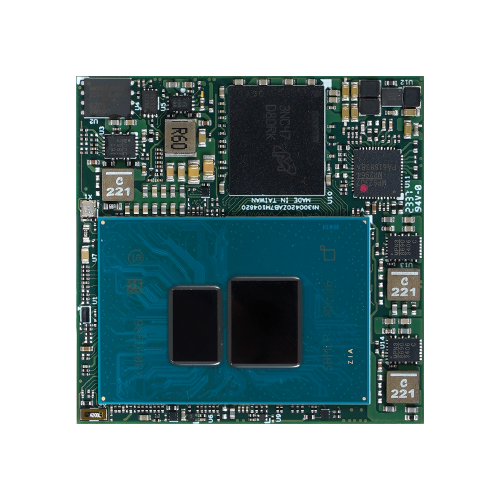

OSM-L with intel Amston Lake series processor
Open Standard Module™ 規範允許開發、生產和分發適用於主流 ARM 和 x86 架構的嵌入式模組。隨著物聯網 (IoT) 應用的快速增長，該標準有助於結合模組化嵌入式運算的優勢，同時滿足成本、空間與介面的日益增長需求。
| General | |
|---|---|
| CPU | Intel Atom® x7000RE Series Processor (default: x7211RE, 3.2GHz) |
| OSM Standard v1.1 | Support OSM Size-L SoC module |
| Memory | 1x 8GB onboard LPDDR5 memory, 4800MT/s |
| Storage | N/A (designed on carrier board) |
| Power input | 5V DC |
| Operating System | Win 10, Win 10 IoT Win 11, Win 11 IoT |
| Basic I/O Interface | |
| Audio | 1 x HDA |
| PCI Express | 2 x PCIe x1 , 1 x PCIe x2, x2 PCIEx1(swap SATA) |
| USB | 4x USB2.0 2x USB3.2 |
| Display | 1x DP++/HDMI 1x eDPx2 |
| Video | N/A |
| Camera | N/A |
| Ethernet | 1x GbE LAN (SGMII) |
| Other Lagacy I/O | 17x GPIO, 2x I2C, 4x UART 2x SPI, 1x eMMC, 2x ADC, 4x PWM, 1x eSPI |
| Mechanical | |
| Form Factor | SGeT OSM Specification v1.1 OSM size L 662 pins |
| Dimension | 45 (L) x 45 (W) mm |
| Mechanical and Environmental | |
| Operating Temperature | -20°C ~ 85°C |
| Humidity | 5-95% RH, non-condensing |
