Ultra-Compact Fanless BOX PC with PICO Integration Intel® Twin Lake Family Processor
Ultra-Compact Fanless BOX PC with PICO Integration Intel® Twin Lake Family Processor

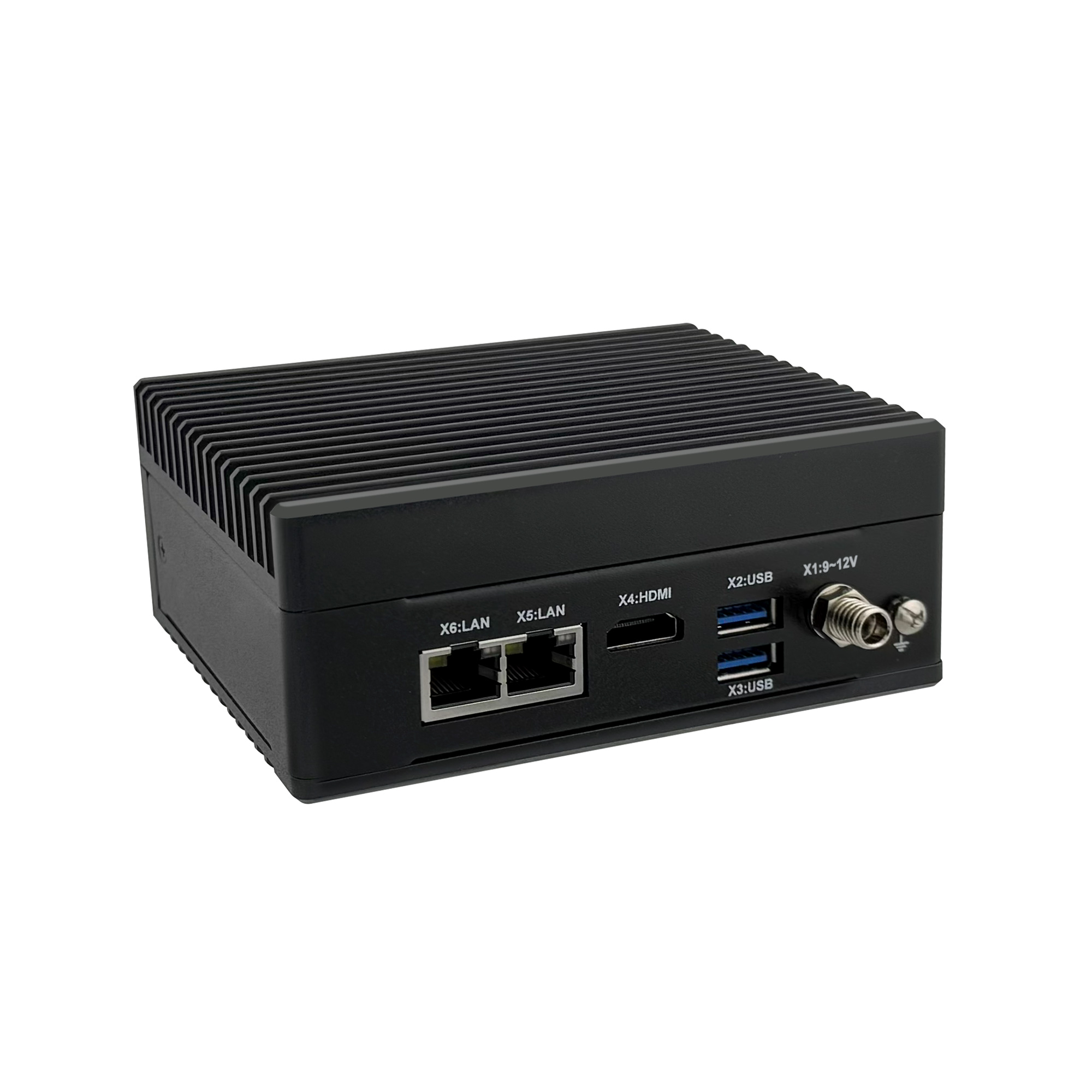

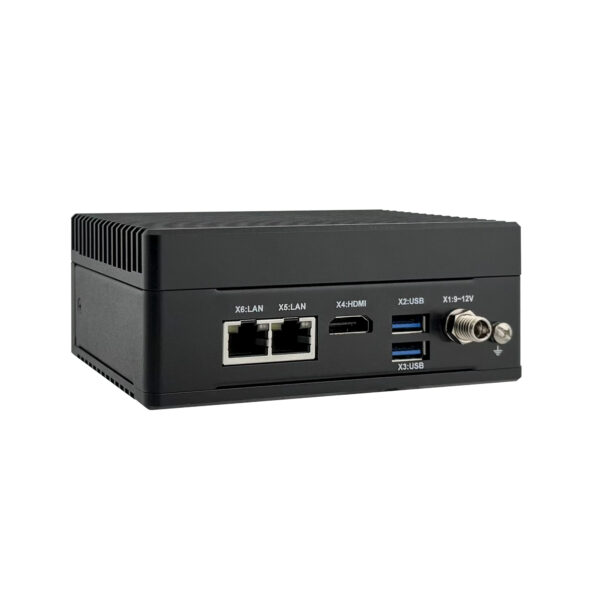

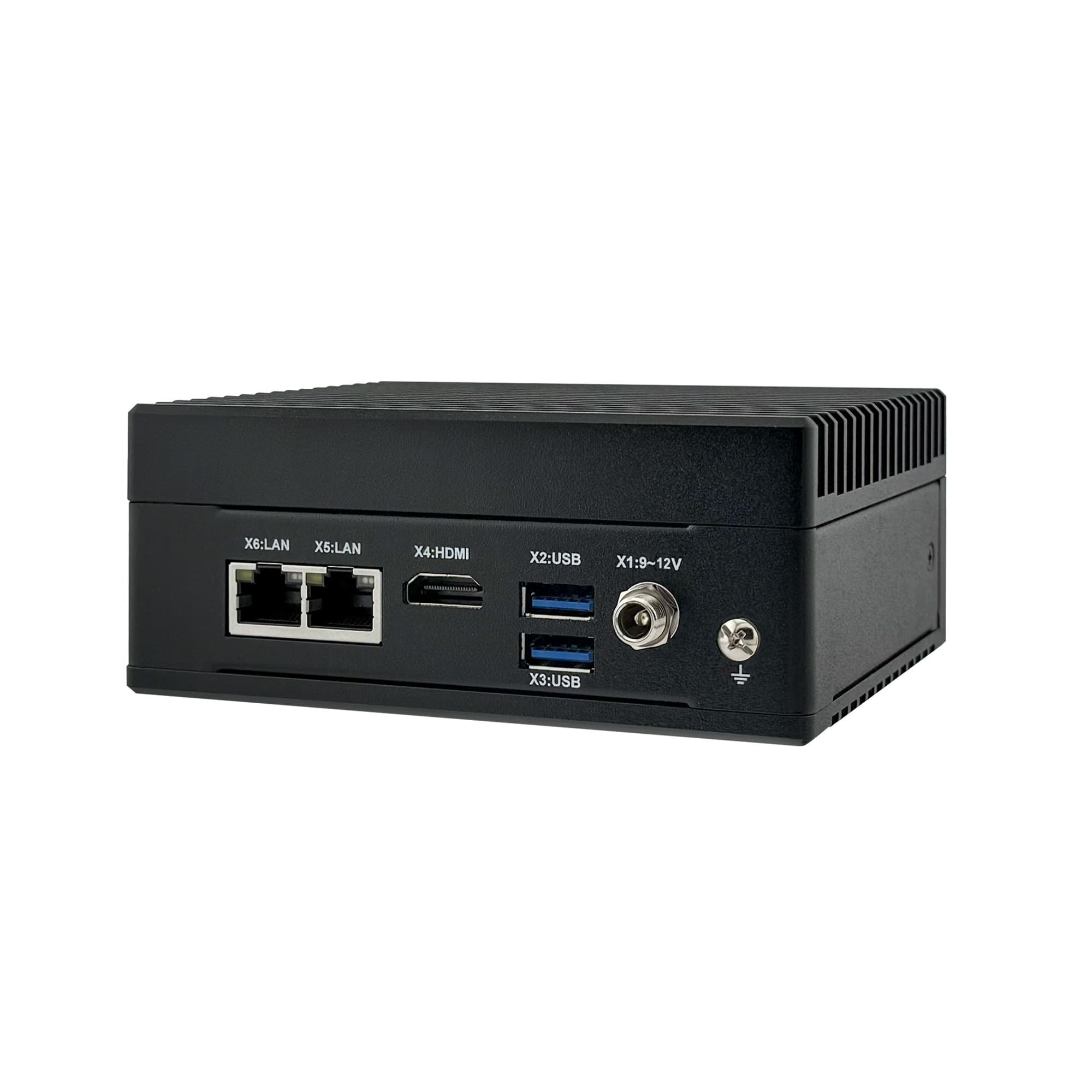

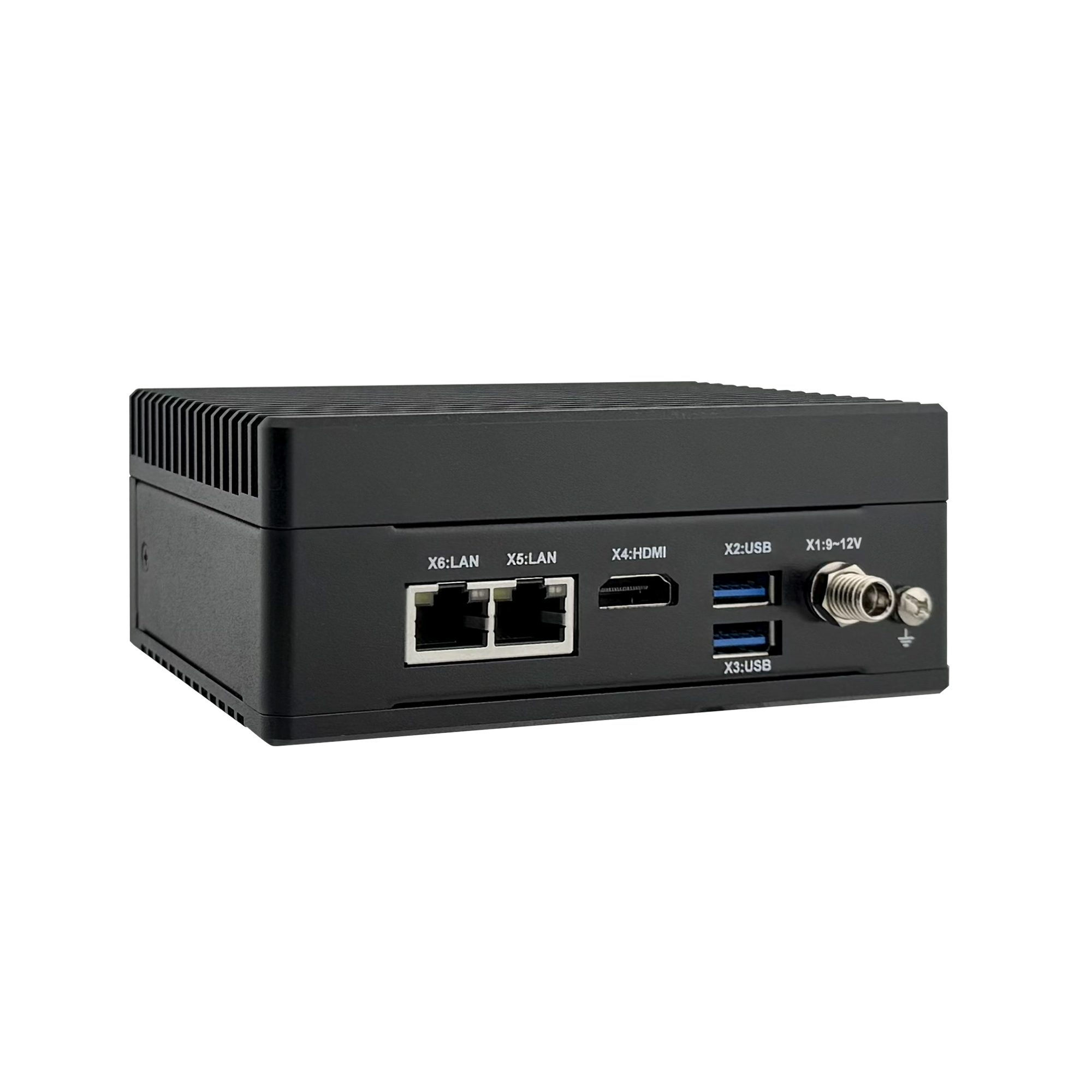

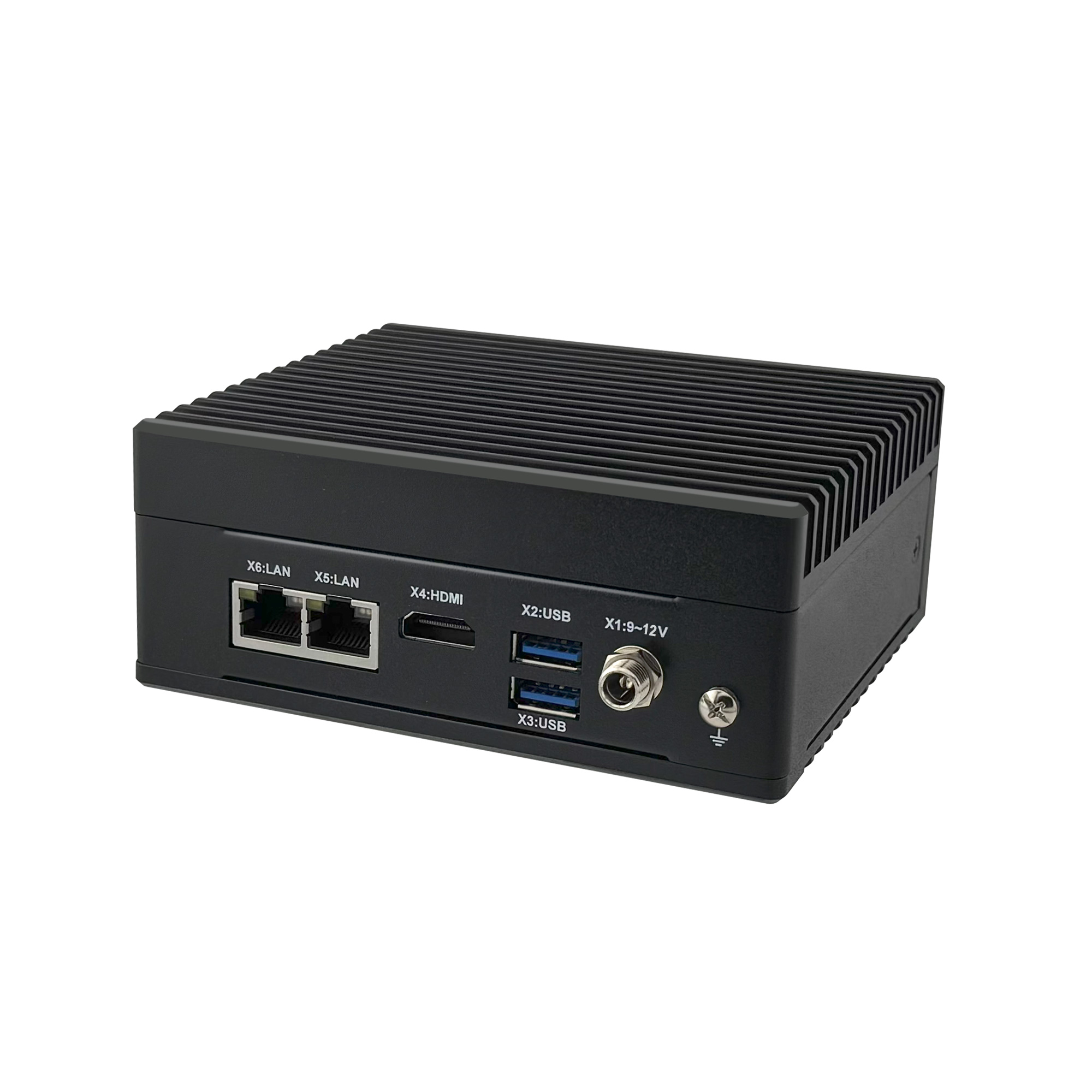

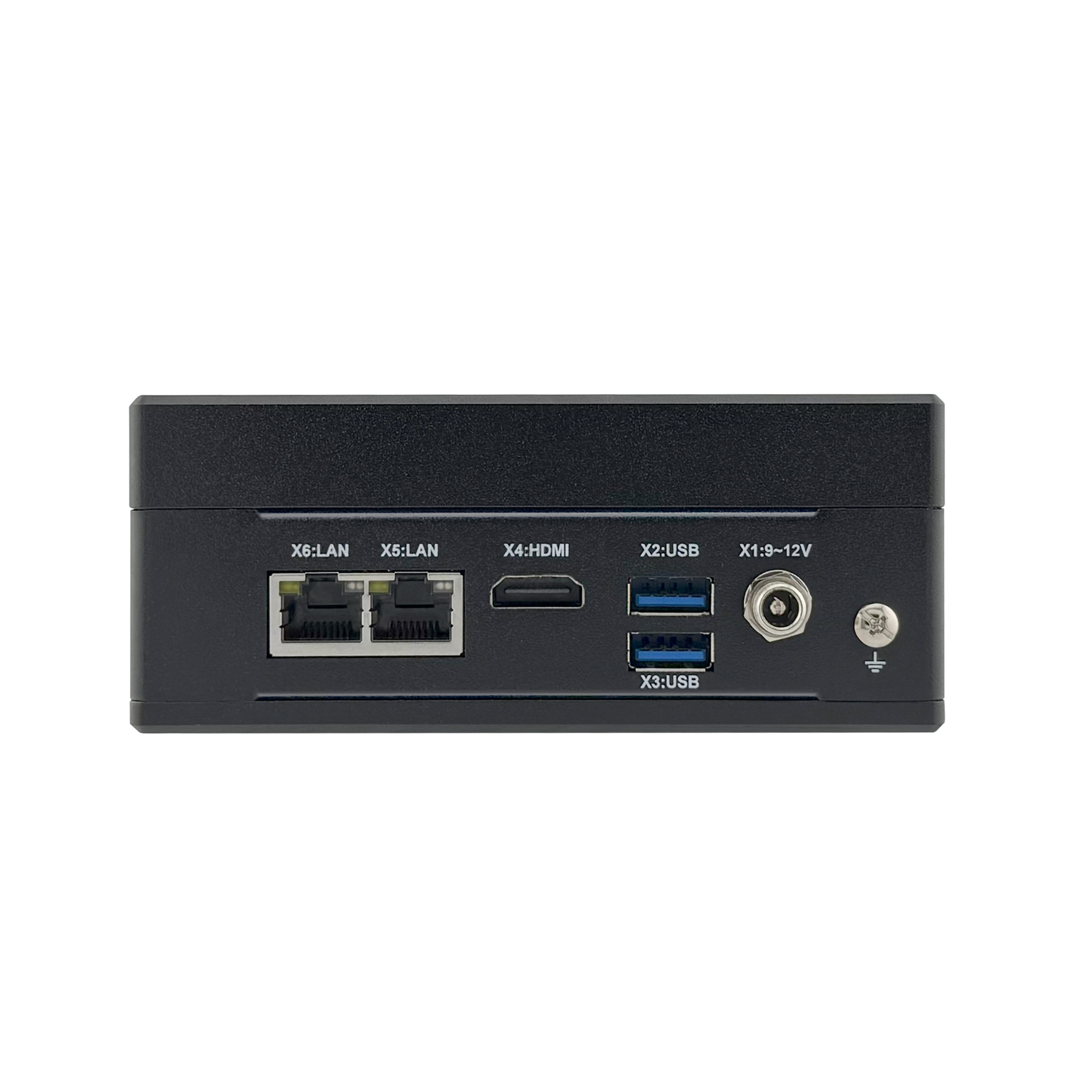

The WSB-TWLP0 Compact Industrial Computer, powered by the Intel® Twin Lake family processor, has a compact size of 100 mm (L) × 128 mm (W) × 52 mm (D) and offers various I/O interfaces, including 2 × 2.5-Gigabit ports, 2 × USB 3.0, and 1 × HDMI. Whether you need to perform data collection and transmission, edge computing, or communication tasks in applications such as industrial automation, the WSB-TWLP0 can easily handle the workload, making it a perfect match for IoT platforms and scalable gateways.
| General | |
|---|---|
| CPU | Support Intel® Atom® Twin Lake / Amston Lake processors (System design optimized up to 15W CPU power consumption.) |
| Memory | DDR5 SO DIMM 8GB/16GB (option) |
| Mass Storage | SSD 128G/256G/512G(option) |
| Power Input | Standard: 12V |
| Operation System | Windows® 10 IoT Enterprise LTSC2021 Windows® 11 IoT Enterprise LTSC2024 Linux Ubuntu |
| Basic I/O Interface | |
| Power Connector | DC Jack with Lock |
| Giga LAN | 2x 2.5 GbE LAN |
| USB | 2x USB3.0 type A |
| Display | 2x USB3.0 type A |
| Expansion | 1x M.2 M Key 2280 PCIEx4 1x M.2 E Key 2230 |
| Environmental | |
| Storage Temperature | -40℃~85℃ |
| Operating Temperature | 0°C ~ 50°C with airflow |
| Relative Humidity | 5%~95%(non-condensing) |
| Vibration | DIN Rail – 1G rms |
| Shock | Din-Rail – 15G half sign |
| Mechanical | |
| Degree of Protection | IP 30 |
| Dimension | 128mm(L) x 100mm(W) x 52mm(H) |
| Net Weight | 0.8KG |
| EMC Standard | |
| EMC Standard | CE/FCC Class A |
| Optional Accessories | |
| Power Adaptor | 60W/12V |
| Mounting Kit | Din Rail mount, Wall mount |
