Fit is enough, less is more- Intel Amston Lake platform in tiny system
Fit is enough, less is more- Intel Amston Lake platform in tiny system

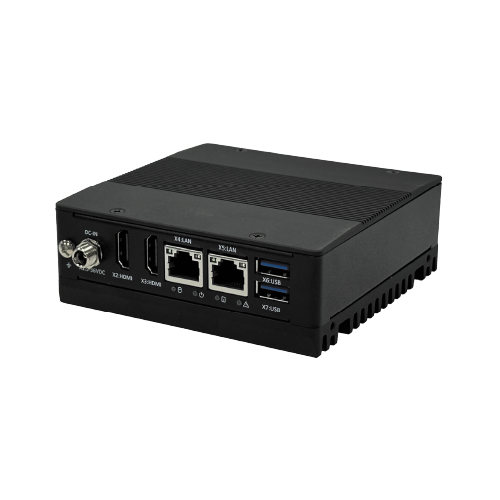

RSQ11 は、産業分野向けに実装された超小型 IPC で、エッジ コンピューティングおよび IIoT ゲートウェイのアプリケーションをサポートし、豊富な I/O 拡張を実現する内部コネクタも備えており、幅広い入力電力範囲と広い温度範囲を備えています。
| General | |
|---|---|
| CPU | Support Intel® Atom® Amston Lake processors (System design optimized for 6W/9W/12WCPU power consumption.) |
| Memory | DDR5 SO DIMM 8GB/16GB (optional) |
| Mass Storage | eMMC 64G/128G/256G(option) |
| Power Input | Standard: 9~36V |
| Operation System | Windows® 10 IoT Enterprise Windows® 11 IoT Enterprise Linux |

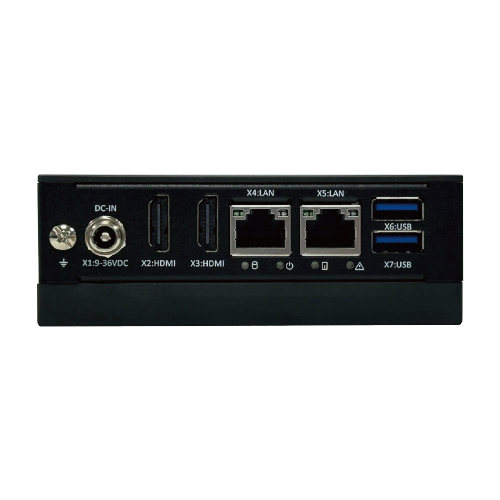

| Basic I/O Interface | |
| Power Connector | DC Jack with Lock /4-Pin Terminal Block |
| Giga LAN | 2x 2.5 GbE LAN (Intel® i226-IT) |
| USB | 2x USB3.0 type A |
| Display | 2x HDMI |
| Expansion | 1x M.2 M Key 2242/2280 PCIEx4 1x M.2 E Key 2230 |
| EMC Standard | |
| EMC Standard | CE/FCC Class A |
| Environmental | |
| Storage Temperature | -40°C ~ 85°C |
| Operating Temperature | -20°C ~ 50°C with airflow |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Vibration | DIN Rail – 1G rms |
| Shock | Din-Rail – 15G half sign |
| Mechanical | |
| Degree of Protection | IP 30 |
| Dimension | 110mm (L) x 110mm (W) x 50 mm (H) |
| Net Weight | 0.8KG |
| Optional Accessories | |
| Power Adaptor | 4-pin Connector / DC Jack with Lock, 60W/24V |

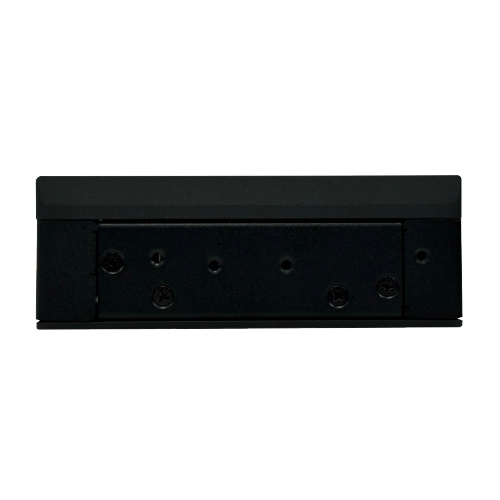

| Mounting Kit | Din Rail mount, Wall mount |
