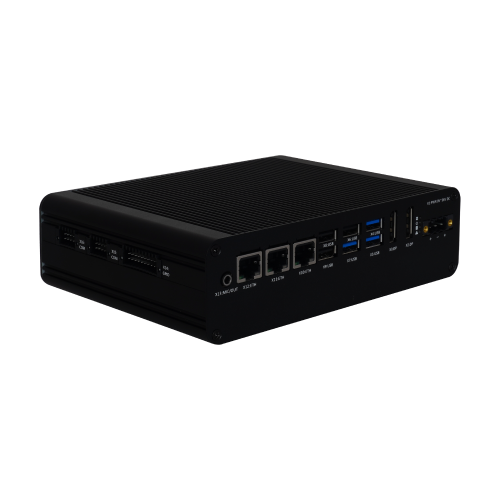

基於 COM Express Type6 Basic 和 Compact 的工業堅固型系統，具有豐富的 IO、LAN 端口、USB 端口、COM 端口和 GPIO 連接

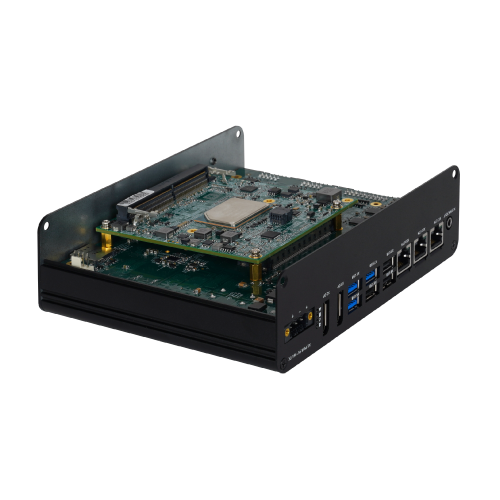

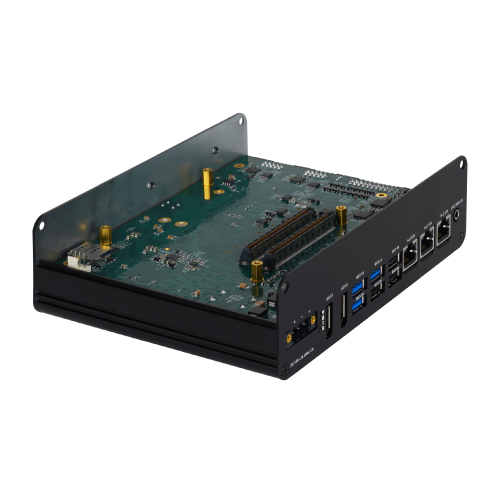

ARIS-CC主要針對特殊工業應用領域的高性能和豐富的接口而設計，是COM Express Type 6 Basic和Compact的載體系統。除了使用的 6 個 USB 端口和 3 個網絡接口之外，還實現了 4 個 COM 端口和 8 輸入/8 輸出 GPIO 控制器特定接口
| Mechanical | |
|---|---|
| Dimension | 180(mm)x134(mm)x50(mm) |
| Weight | 1.5kg |
| Housing | Aluminum housing |
| Moumting type | Wallmount and Dinrail |
| Cooling | Cooling with cooler for standard product fanless for project base requirement) |
| IP | IP30 |
| General | |
| CPU | Intel® Core i® processors (“Tiger Lake-U”) and Intel Atom® processors (“ElkhartLake”) based on Type6 Compact COM EXPRESS module with ARIS-CC |
| Storage | 1x M.2 M Key 2280 NVMe (PCIe) 1x M.2 B Key 2242 SSD (SATA) (or 3042/3052 cellular module) |
| Memory | SO-DIMM DDR4 up to 64GB, 3200 MT/s Dual memory channels, 64bit with In-Band ECC |
| Power Input | 9~36V |
| Indicator LED | Error :over heat (Red) / throttling (orange) EC ready : ready (green) / off power : S0 (green) / S3.S4.S5 (off) M.2 Storage : green / off |
| Operating Systems | Windows® 10 IoT Enterprise / Linux |
| Expansion | 1 x M.2 Key M 2242 (SATA) |
| Basic I/O Interface | |
| Power Connection | 1 x 3-pin screw-type terminal block |
| Ethernet | 2x 2.5 GbE (Intel® i226) and 1x 2.5 GbE (MaxLinear® GPY215) |
| USB | 3x USB 3.2 and 3 USB 2.0 |
| COM | 4x COM ports, 8x digital inputs and 8x digital outputs |
| Display | 2x DP v1.4 7680 x 4320 @ 60Hz |
| Expansion | 1x M.2 E Key 2230 Wi-Fi module 1x M.2 B Key 3042/3052 cellular module (or 2242 SATA storage)/1x Nano SIM 1x Mini PCIe slot (PCIex1/USB) |
| Environment | |
| Operating Temperature | -25°C ~ 45 °C with airflow (with cooler) -25°C ~ 45 °C with airflow (fanless for project base requirement) |
| Storage Temperature | -40 °C ~ 85 °C |
| Vibration | Wall mount- MIL-STD-810G 514.7C-V Category-4 / Din Rail – 1G (DIN EN 60068-2-6) |
| Shock | Wall mount – 40G (EN 60068-2-27)/ Din Rail – 15G (EN 60068-2-27) |
| Certification | CE, FCC |
