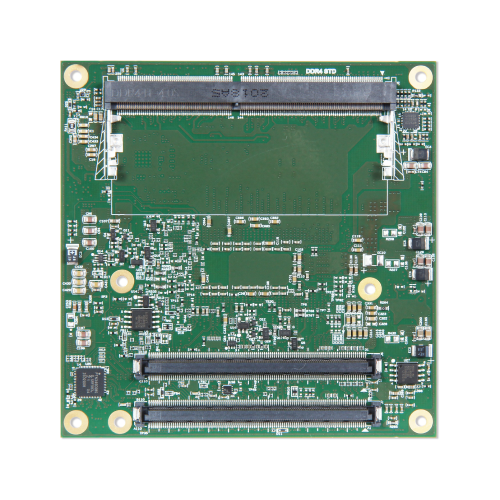

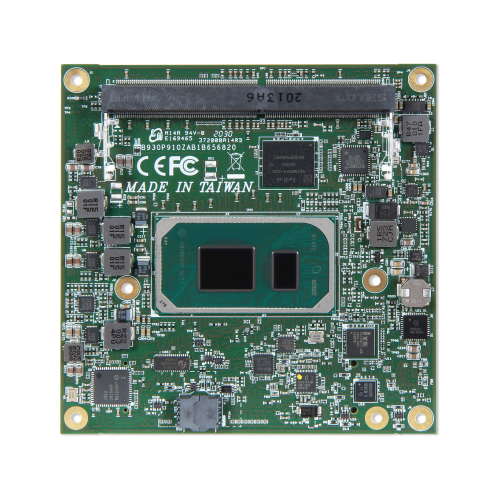

Intel® Tiger Lake-UP3 Core™ Processor based on Type VI COM Express module with dual DDR4 SO-DIMM, DDI, eDP, Gigabit Ethernet, SATA 3.0, and USB 3.2
PCOM-B656VGL 採用 Intel® Tiger Lake-UP3 處理器設計，具有 Type 6 引腳定義以及三個特點，包括 DDR4 內存、PCIe Gen4 和 USB 3.2 Gen2 x1 支持。 PCOM-B656VGL 擴展 PCIe Gen3 端口可支持高速 I/O 卡，滿足更多應用需求。同時兼容COMe 3.0 Type 6載板。
| Model Name | PCOM-B656VGL |
| Form Factor (mm) | COM Express® Compact (95 x 95mm) |
| COM Type | Type 6 |
| CPU/ Clock/ Cache | Intel® 11th Generation CoreTM* Intel® i7-1185GRE/i7-1185G7E Intel® i5-1145GRE/i5-1145G7E Intel® i3-1115GRE/i3-1115G4E Celeron® 6305E* Up to 4 CPU cores* 4MB to 12MB cache* |
| Chipset | SoC |
| Memory | DDR4 SO-DIMM |
| USB | 4x USB 3.2 Gen2x1 8x USB 2.0 |
| PCI Express | 1x PCIe Gen3 x4/2x PCIe Gen3 x2/4x PCIe Gen3 x1/1x PCIe Gen3 x2 + 2x PCIe Gen3 x1 1x PCIe Gen3 x1 for Intel I225 Lan 1x PCIe Gen3 x2/2 x PCIe Gen3 x1 w/o USB 3.2 |
| Ethernet | Intel® I225LM/IT |
| Sound | Intel® High Definition Audio |
| Graphic Controller | Intel Iris |
| Carrier Board | PCOM-C60B |
