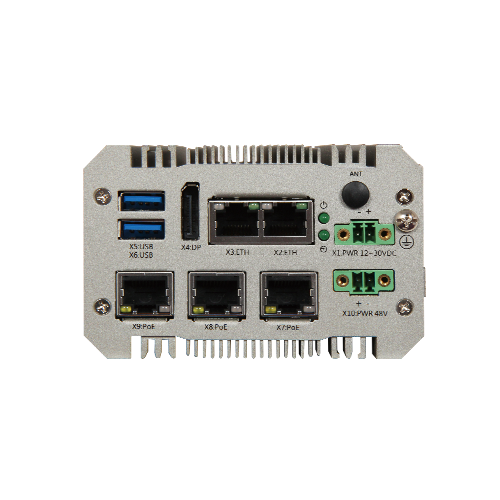

Ultra-small form factor industrial PC with Intel® Apollo Lake family processor
KUBER-2000 series is a palm-sized, flexible and ready-to-use industrial PC designed for a variety of applications in the industry 4.0 world.
KUBER -212D 是一款超小型工業 PC，配備 Intel® Apollo Lake 系列處理器。 KUBER-212D 的微型尺寸為 99 mm. (長) x 63 mm. (寬)x 92 mm (深)，提供與 KUBER 系列相同的基本功能。除此之外，KUBER -212D 支援 2 GbE、2 個 USB 3.0 和 1 個 DP 以及 3 x 802.3af PoE GbE（功率31W）。具備可連接無線卡的附加 M.2 Key E 2230 和 1 個 2-pin端子更適合用於工業自動化應用。
| General | |
| CPU | Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP |
| Memory | On Board LPDDR4 up to 4GB , 2133MT/s Dual memory channel, 64bit, non-ECC |
| Mass Storage | eMMC 5.0 onboard flash 32GB up to 256 GB |
| Power Input | Standard: 12-30 VDC |
| Operation System | Windows® 10 IoT Enterprise LTSB 2016 (64-bit) Linux Yocto Warrior v2.7.1 (kernal 4.14) |
| Expansion | 1x M.2 Key E 2230 for Wireless card |
| Basic I/O Interface | |
| Power Connector | 1x 2-Pin Terminal Block |
| Giga LAN | 2x 10/100/1000 GbE (Intel® i225) |
| USB | 2x USB 3.0 |
| Display | 1x DP v1.4 4096 x 2160 @ 60Hz |
| Extended I/O Interface | |
| Extended I/O Interface | 1x 2-Pin Terminal Block (24VDC) 3 x 802.3af PoE GbE (power budget 31W) |
| EMC Standard | |
| EMC Standard | CE, FCC (EN55024, EN55032) CE (EN 61000-6-4: 2007 + A1: 2011, Class A, EN 61000-6-2:2005) (IEC 61131-2: 2017 EMC) FCC (CFR Title 47 Part15 Subpart B: 2018 Class A) |
| Environmental and Mechanical | |
| Storage Temperature | -40 °C ~ 85 °C |
| Operating Temperature | -20°C ~ 50°C @ 5~85% RH with no airflow |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Vibration | 1G, with DIN-Rail (EN 60068-2-6) 810G, with Wall mount (MIL-STD-810G 514.7C-V Category-4) |
| Shock | 15g with 11 ms impulse length, 18 shocks in total (EN 60068-2-27) 40g with 11 ms impulse length, 18 shocks Wall mount (EN 60068-2-27) |
| Degree of Protection | IP 30 |
| Dimension | 99mm (L) x 63mm (W) x 92 mm (D) |
| Net Weight | 0.65Kg |
| Mounting | DIN-Rail / Wall Mount |
| Cooling | Fan-less |
| Optional Accessories | |
| Power Adaptor | 2-pin Connector, 60W, 24V/2.5A |
| Mounting Kit | DIN-Rail / Wall Mount |
| Video Adaptor | DP to VGA/ DP to DVI |
