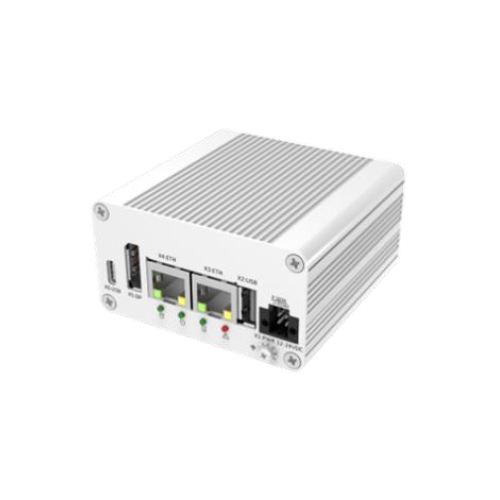

The MIWA system is a compact, rugged Box PC designed to excel in Medical, Edge AI, and Factory Automation applications. With wide-temperature support and rich I/O options, it’s the perfect solution for environments that demand reliability and performance.
| General | |
|---|---|
| CPU | Intel Atom® x7433RE Processor Intel Atom® x7835RE Processor |
| Memory | LPDDR5 8GB /16GB |
| Mass Storage | eMMC 64G / 128GB |
| Power Input | Standard: 9~36V |
| Operation System | Windows® 10 IoT Enterprise Linux Yocto |

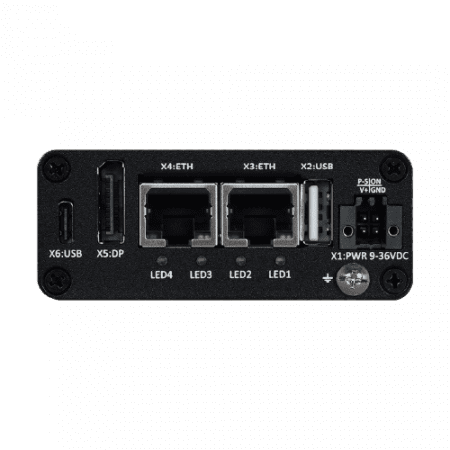

| Basic I/O Interface | |
| Power Connection | 4-Pin Terminal Block |
| Giga LAN | 2x 2.5 GbE LAN (Intel® i226-IT) |
| USB | 1x USB3.0 type-C, 1x USB3.0 type A |
| Display | 1x DP |
| LED | 4 system LEDs |
| Expansion | 1x M.2 M Key 2242 PCIEx4 |
| EMC Standard | |
| EMC Standard | CE/FCC Class A |
| Environment | |
| Operating Temperature | 20°C ~ 60°C with airflow -20°C ~ 60°C with airflow, DIN Rail mount (by request) |
| Storage Temperature | -40 °C ~ 85 °C |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Vibration | DIN Rail – 2G rms |
| Shock | DIN Rail – 50G half sign |
| Mechanical | |
| Degree of Protection | IP 30 |
| Dimension | 75mm (L) x 75mm (W) x 40 mm (H) |
| Net Weight | 0.3KG |
| Optional Accessories | |
| Power Adaptor | 4-pin Connector, 40W/12V or 45W/19V |
| Mounting Kit | Din Rail mount, Wall/Desk/VESA mount by project |
