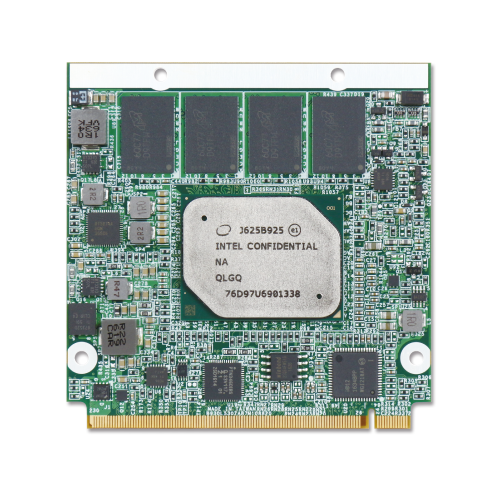

Qseven module wil Intel® ApolloLake family processor
Qseven module wil Intel® ApolloLake family processor
PQ7-M108 採用 Intel® Atom™/ Pentium®/ Celeron® 處理器（“APOLLO LAKE”）設計，與之前的平台相比，具有更高的圖形性能和更寬的記憶體帶寬。得益於Intel Apollo Lake工業級處理器設計，工作溫度支持-40°C至85°C。 PQ7-M108選用合格的工業級元件，旨在廣泛應用於自動化、安防、交通等各種惡劣環境的應用。
| General | |
| CPU | Intel® Atom E3950, 4 cores, 1.6GHz/2.0 GHz, 12W TDP Intel® Atom E3940, 4 cores, 1.6GHz/1.8 GHz, 9.5W TDP Intel® Atom E3930, 2 cores, 1.3GHz/1.8 GHz, 6.5W TDP Intel® Pentium N4200, 4 cores, 1.1GHz/2.5 GHz, 6W TDP Intel® Celeron N3350, 2 cores, 1.1GHz/2.4 GHz, 6W TDP |
| Cache | 2 MB L2 cache |
| Memory | Up to 8 GB LPDDR4 at 2133/2400 MTps Dual/ quad channel, 64bit, non-ECC |
| Storage | eMMC 5.0 onboard flash up to 64 GB |
| DisplayPort Interface | |
| DDI1 | 24-bit Dual Channel LVDS up to 1920×1200@60Hz |
| DDI0 | DisplayPort 1.2 up to 4096×2160@60Hz Or HDMI 1.4b up to 3840×2160@30Hz |
| Audio | |
| Audio | Intel® HD Audio integrated in SoC |
| Ethernet | |
| Ethernet | 1x Intel® i210 |
| I/O Interfaces | |
| PCIe | 4x PCIe x1 Gen2 |
| USB | 8x USB2.0 or 3x USB 3.0 (opt.) |
| SATA | 2x SATA 3.0 (6 Gbit/s) |
| Other I/O Interfaces | |
| Other I/O Interfaces | 1x SDIO, 2x SPI, 1x I²C, 1x HDA, 1x SMBus, 1x LPC, 1x UART, WDT, 1x JTAG |
| Video | |
| GPU Feature Support | IntelR Gen 9 LP Graphics supporting DirectX 12 | OpenGL 4.3 OpenCL 2.0 | OpenGL ES 3.0 | HW accelerated video decoding | HEVC/H.264/MVC/MPEG2/VP9/VC1/WMV9/MJPEG and encoding | HEVC/H.264/MVC/VP8/MJPEG | Contend protection using PAVP 2.0 and HDCP 1.4/2.2 |
| Embedded BIOS | |
| Embedded BIOS | AMI UEFI with Fast Boot support l Display Auto Detection l Flash Update l Password Lock l OEM Logo for startup screen |
| Mechanical and Environmental | |
| Form Factor | Qseven® 2.1 |
| Dimension | Qseven module, 70 mm x 70 mm |
| Operating Temperature | Commercial: 0°C to +60°C, Industrial: -40ºC to +85ºC |
| Humidity | 10-90% RH operating, non-condensing 5-95% RH storage (and operating with conformal coating) |
| Power | |
| Standard Input | 5V DC ±5% |
| Power Management | ACPI 5.0 compliant l Smart Battery Management on carrier |
| Power Consumption | 6W~12W (CPU) |
| Operation System | |
| Operation System | Windows 10 IOT Enterprise, Windows 10 IOT Core |
