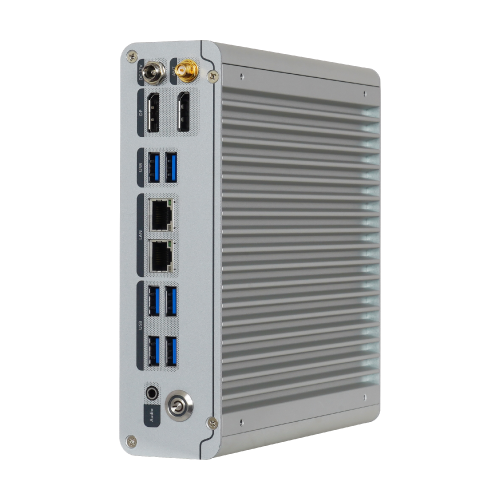

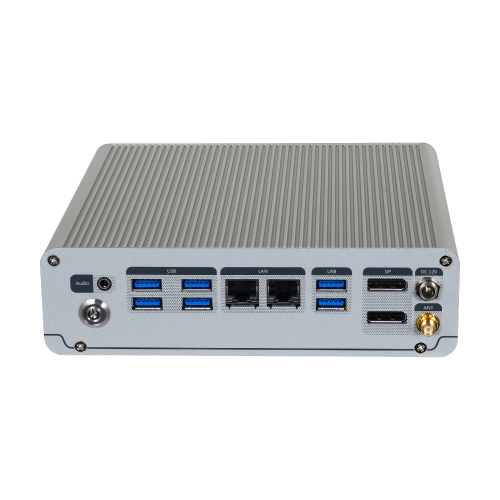

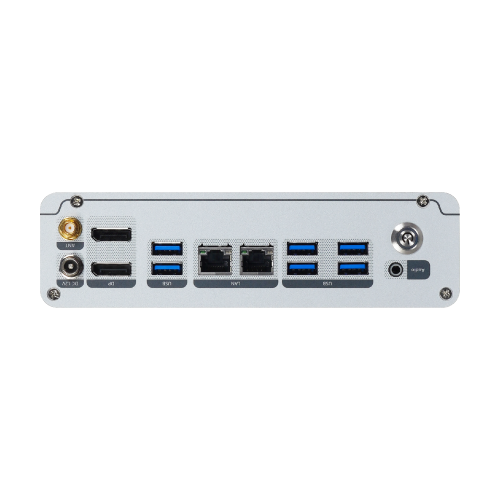

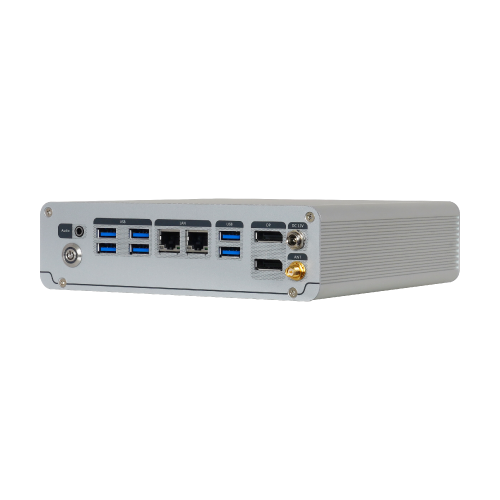

Mini-ITX 無風扇嵌入式工業主機
SQ18-3000 是 WeLink 首款無風扇工業 PC，提供第 10 代 Intel Core i3/i5/i7/i9 和 Intel® Celeron® 處理器（高達 35W TDP）。 SQ18-3000 具有由 PCIe 3.0 [x4] 驅動的 M.2 2280（M-Key）插槽，支持快速 NVMe SSD。它還具有一個 M.2 2230（E-Key）插槽，支持 Wi-Fi 或藍牙連接。
| Processor | Intel® 10th Gen (Comet Lake-S) Core™ Processors |
| Chipset | Intel® H420E |
| Memory | 2 x 260-pin DDR4 SODIMM socket supported, up to 64G DDR4-2666 |
| Storage | 1 x m.2 M key 2280 (PCIex4, SATA) |
| Graphic | Intel® UHD Graphics 630 |
| Display Port | 2 x Display port (DP1.2++) resolution up to 4096×2160@60Hz |
| TPM2.0 | 1 |
| Watch-Dog Timer | Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs |
| Ethernet | 2x Realtek GLAN RTL-8119-CG |
| USB | 6 x USB 3.2 Gen 1 (Type-A) |
| Audio | 1 x Combo Audio Jack |
| Expansion | 1 x M.2 Key E 2230 (USB2.0 only) |
| OS | Win10 IoT & Linux |
| Power | 12V/120W |
| Dimension | L x W x H: 182x182x50mm |
| Mounting | DIN-Rail or Wall-Mount |
| Environment | Operating temperature: 0 ~ 50°C |
| Certification | CE/FCC Class A |
