NVIDIA® Jetson Thor T5000 架構邊緣 AI 加速平台
•AI Performance 2070 TFLOPS
•Support NVIDIA Jetson Thor T5000 module
•1 x USB3.2 Type-C (for OS flash), 4 x USB3.2
•2 x 5GbE RJ45, 1 x QSFP28 100G
•2 x SATA III SSD
•12 to 36V DC Input
WALI-02A6 採用 NVIDIA® Jetson Thor T5000 模組，為專為次世代 AI 推論與智慧邊緣運算打造的高效能 Edge AI 平台。搭載最高 2070 TFLOPS AI 運算效能、100GbE QSFP28 高速網路、雙 5GbE LAN、PCIe NVMe 儲存介面及彈性的無線通訊擴充能力，可為自主系統、機器人、機器視覺及工業 AI 應用提供卓越的運算效能。
| General | |
| Processor | NVIDIA® Jetson Thor T5000 128 GB 256-bit LPDDR5X |
| Mass Storage | 1 x M.2 Key M socket (4-lanes PCIe) for 2242/2260/2280 NVMe SSD 2 x SATA (from USB to SATA) |
| Operation System | Jetpack 7.0 packs Linux Kernel 6.8 and Ubuntu 24.04 |
| BIOS | Support UEFI only |
| Basic I/O Interface | |

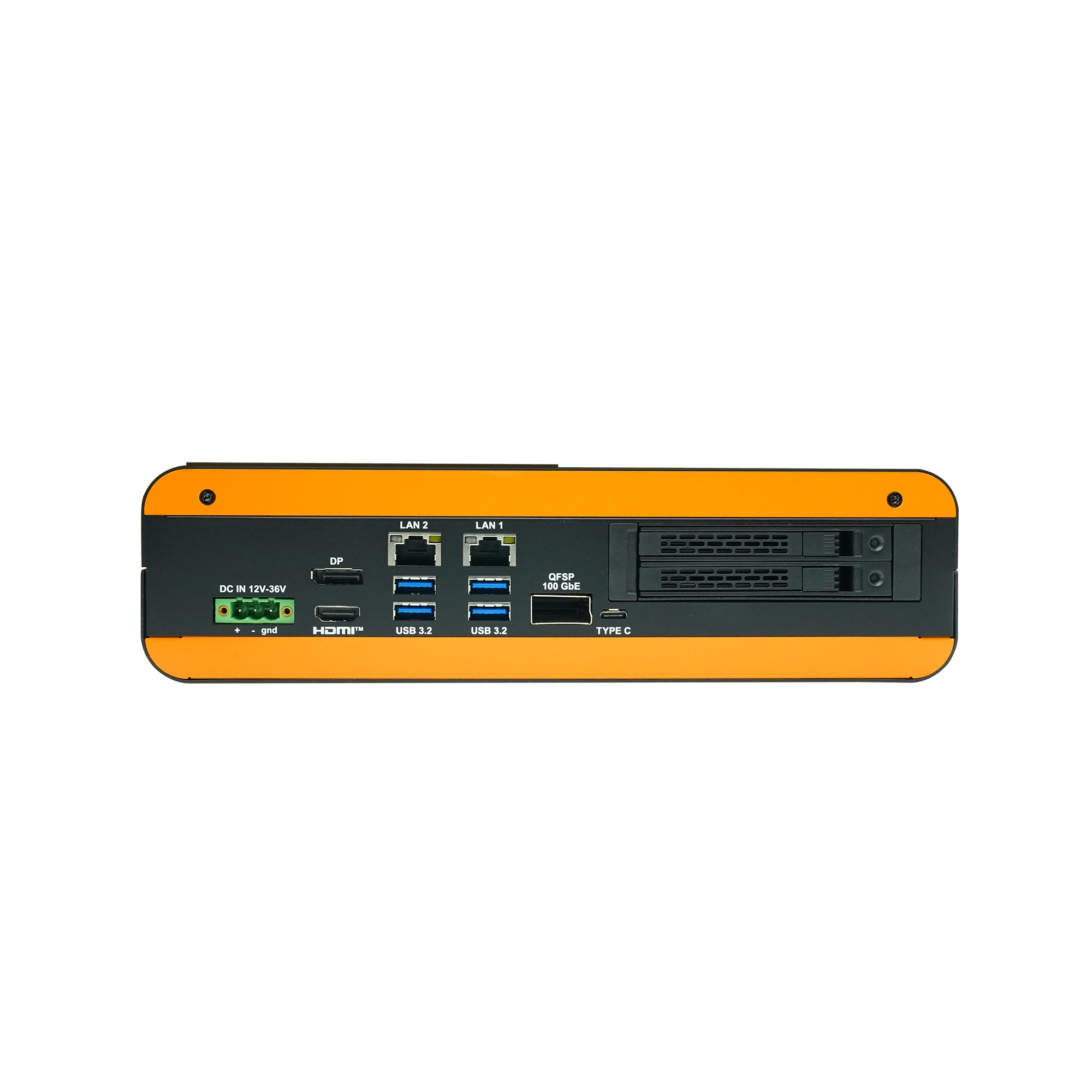

| Giga LAN | 2 x 5GbE RJ45 1 x QSFP28 (T5000 4x25GbE) |
| USB | 4 x USB 3.2 Gen2 Type-A (from USB HUB) 1 x USB 3.2 Type-C (For OS flash) |
| Display | 1 x HDMI 2.1 1 x Display Port 1.4a |
| Wireless Communication | 1 x M.2 Key E socket (1-lane PCIe and USB 2.0) for 2230 Wi-Fi & BT module 1 x M.2 Key B socket (USB 3.2) for 3042/3052 LTE/5G module |
| Nano SIM | 1 × Nano SIM Slot |
| Button | 1 x Power button, 1 x Recovery button, 1 x Reset button |
| Power | 1 x DC Power Jack for 12V-36V |
| Security | Onboard TPM 2.0 security chip |
| Environmental | |
| Operating Temperature | 0°C ~ 50°C |
| Mechanical | |
| Dimension | 264 mm (L) x 154 mm (W) x 71 mm (H) |
| Net Weight | 3.3KG |
