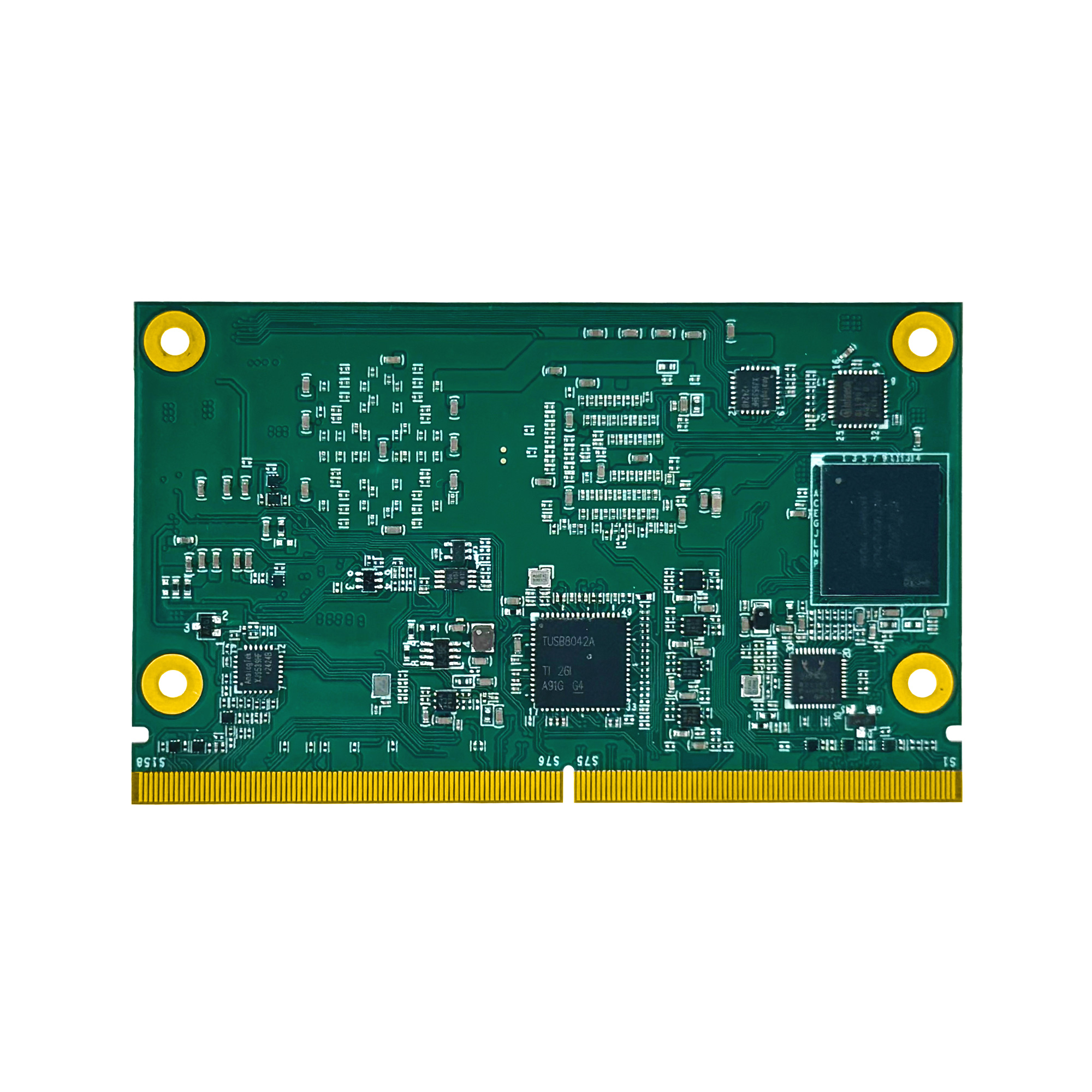

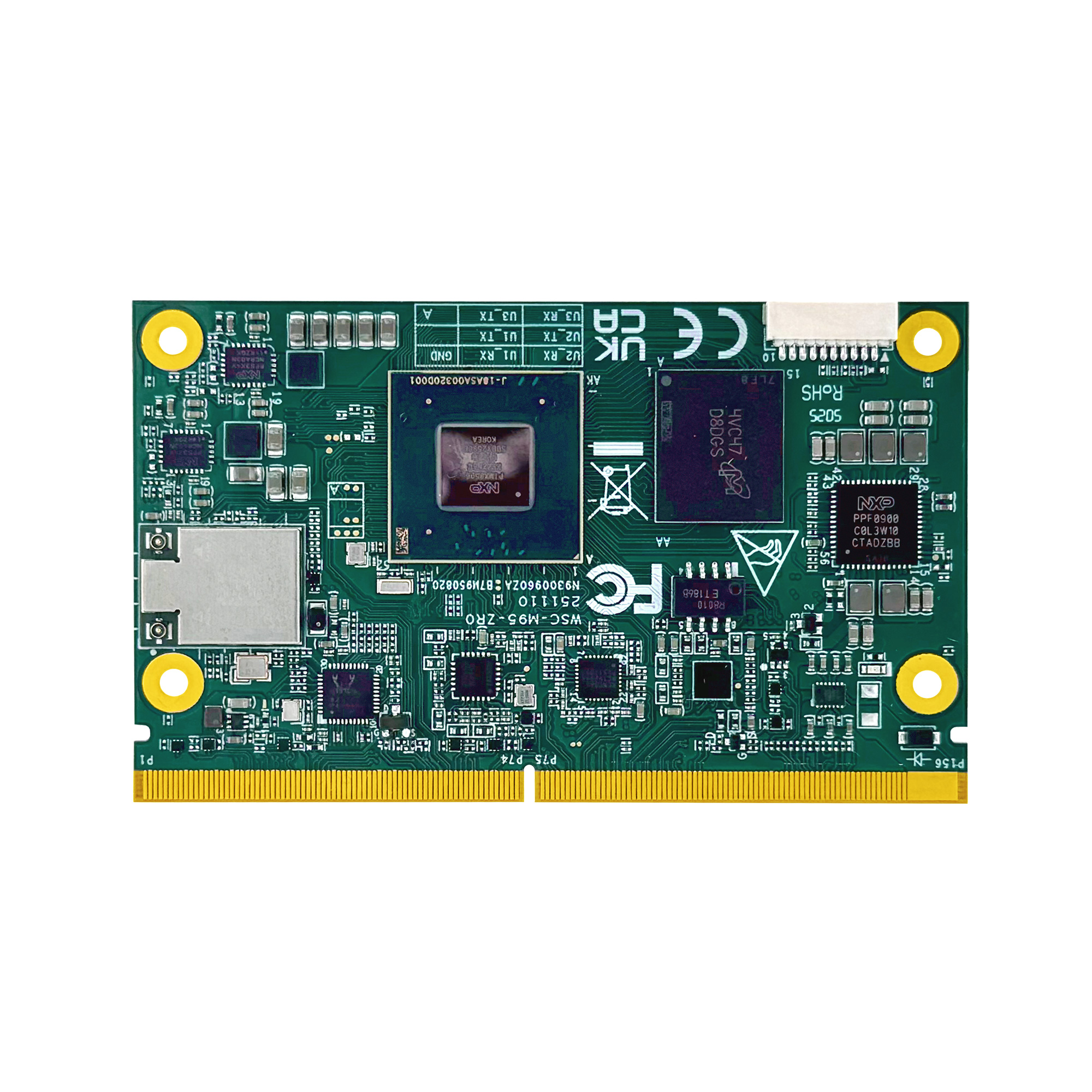

SMARC® 2.1 Module with NXP® i.MX95 processor
•NXP i.MX 95 with Hexa-core Arm Cortex-A55S
• 1x Arm Cortex-M7 and 1x Arm Cortex-M33
• Integrated eIQ Neutron NPU, ISP and VPU
• Arm Mali G310 3D Graphics
• LVDS, DSI, HDMI graphic output interfaces
• 2x GbE ports, 1x 10Gb (TSN capable)/ Wi-Fi / BT
• I²S / Dual CAN bus / USB 2.0 / USB 3.0 interfaces
• Rugged operating temperature (optional): -40°C to 85°C
| General | |
| CPU | NXP i.MX 95 series 6x Arm Cortex-A55, up to 1.8 GHz frequency 1x Arm Cortex-M33, up to 333 MHz frequency 1x Cortex-M7, up to 800 MHz frequency |
| GPU | Arm Mali-G310 Graphic Processing 3D GPU supporting 64 GFLOPs FP32, OpenGL ES 3.2, OpenCL 3.0 |
| NPU | 2.0 TOP/s Neural Network performance, up to 1.0 GHz (overdrive mode) and 800 MHz (nominal mode) 1 MByte of SRAM embedded within the NPU, but it is available for other SoC usage when not using for ML purposes. |
| Memory | 4GB / 8GB LPDDR5 |
| Storage | Support onboard eMMC 5.1 flash up to 256GB |
| Audio | |
| Audio | I2S Audio Interface |
| Ethernet | |
| Ethernet | 2 x Gigabit Ethernet interface WiFi + BT LE module onboard |
| I/O Interfaces | |
| PCIe | 2x PCIe 3.0 x1lane ports |
| USB | 3x USB 2.0 , 2x USB 3.0 ,1x USB 2.0 OTG port |
| Serial IO | Up to 4x UART (2 x Tx/Rx,2 xTX/RX/CTS/RTS) 2x CAN Bus |
| Other I/O Interfaces | |
| Other I/O Interfaces | 1x 4-lanes CSI camera interfaces 4x I2C Bus, 1x SPI interfaces 14 x GPIO |
| Video | |
| LVDS | 2x 1080p60 LVDS Tx (2x 4-lane or 1x 8-lane) |
| Mipi DSI | 4-lane, 2.5 Gbps/lane 4kp30 or 3840 x 1440p60 |
| Operating Systems | Linux |
| Mechanical | |
| Form Factor | SMARC® 2.1 |
| Dimension | SMARC module, 82 mm x 50 mm |
| Environmental | |
| Operating Temperature | -40°C to 85°C |
| Humidity | 5-90% RH, non-condensing |
| Power | |
| Standard Input | 5V DC ±5% |
