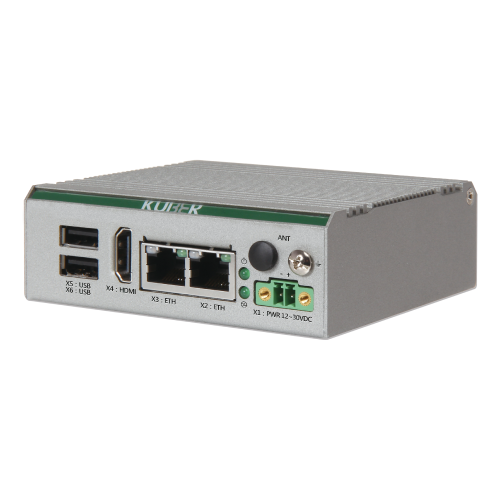

Industrial IoT Gateway System with Quad Core Cortex A72 Processor.

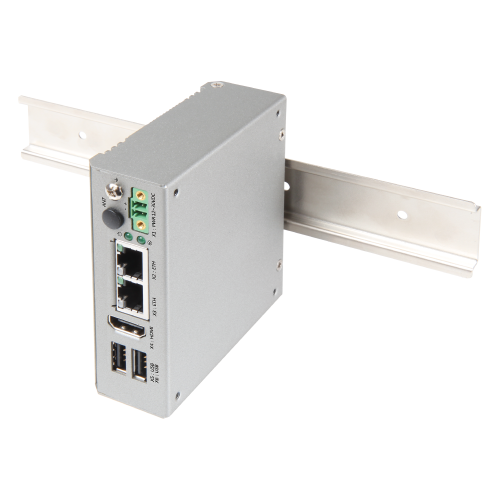

The KUBER-1000 is designed in a fan-less case with palm size (99 (L) x 34 (W) x 92 (D) mm) can be fixed and installed in the system by wall mount or din rail easily for different application.
KUBER-1000 設計在無風扇機箱中，尺寸只有手掌大小（99mm長 x 34寬x 92深，可以通過壁掛式或 DIN 導軌輕鬆固定和安裝在系統中，以搭配不同的應用。
| General | |
| CPU | Quad core Cortex-A72 (ARM v8) 64-bit SoC, 1.5GHz |
| Memory | On Board LPDDR4 up to 8GB, 3200MT/s Dual memory channel, 64bit, non-ECC |
| Mass Storage | 16G Industrial micro-SD, Storage by eMMC / Other size of micro-SD by request. |
| Power Input | Rated input voltage: 12-30 VDC Range of input voltage: 9-36 VDC |
| Operation System | Yocto, Ubuntu IoT |
| Security | Trusted Platform Module 2.0 |
| Wireless Connection (optional) | 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless Bluetooth 5.0, BLE |
| Miscellaneous Feature | Real Time Clock |
| EMC Standard | |
| EMC Standard | CE, FCC (EN55024, EN55032) CE (EMI EN 61000-6-3, EMS EN 61000-6-1:2005) FCC (CFR Title 47 Part15 Subpart B: 2018 Class A) |
| I/O Interfaces | |
| Power Connector | 1x 2-Pin Terminal Block |
| Giga LAN | 2x 10/100/1000 bit Ethernet |
| USB | 2x USB 2.0 |
| Display | 1x HDMI 2.0 with 3840×2160 @ 30 Hz resolution |
| Environmental and Mechanical | |
| Operating Temperature | -20°C ~45°C (Under system I/O, performance full loading, no air flow) |
| Storage Temperature | -40 °C ~ 85 °C |
| Permissible Humidity | 5-95% RH operating, non-condensing 5-95% RH storage, non-condensing |
| Vibration | 1G, by DIN-Rail/ Wall mount (EN 60068-2-6) 2G Random, 5~500Hz, 1hr/axis, by wall mount (EN 60068-2-64:2008) |
| Shock | 15G with 11ms impulse length by Wall mount (EN 60068-2-27) 40G with 11ms impulse length, half sine, 11ms (EN 60082-2-27) |
| Degree of Protection | IP 30 |
| Dimension | 99mm (L) x 92mm (W) x 34 mm (D) |
| Net Weight | 0.3 Kg |
| Mounting | DIN-Rail / Wall Mount |
| Cooling | Fan-less |
| Optional Accessories | |
| Power Adaptor | 2-pin Connector, 60W, 24V/2.5A |
| Mounting Kit | DIN-Rail / Wall Mount |
