Mini-ITX 嵌入式 Box PC搭載 Intel® 10th Gen (Comet Lake-S) Core™ 系列處理器

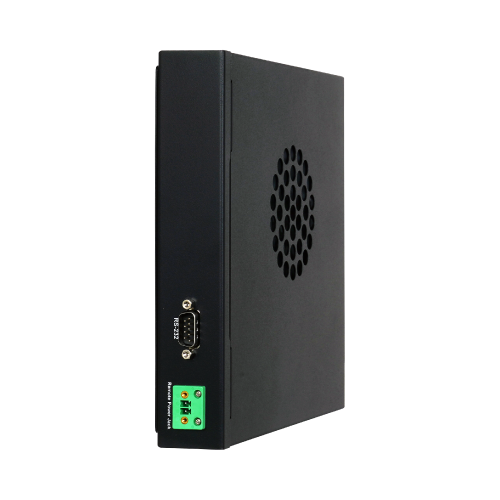

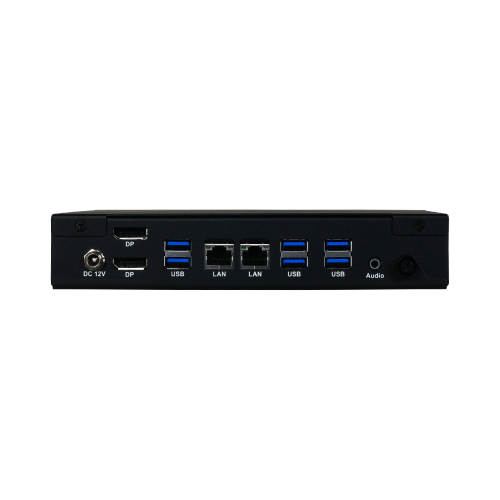

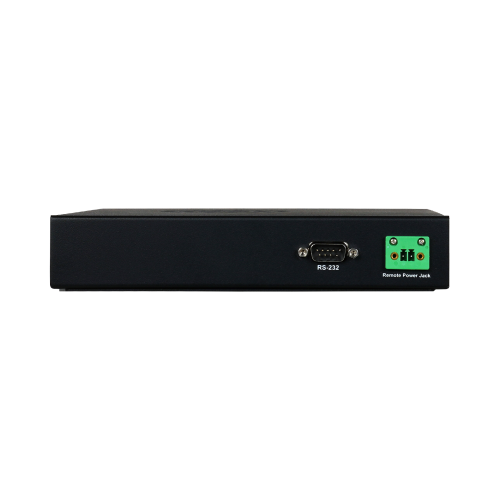

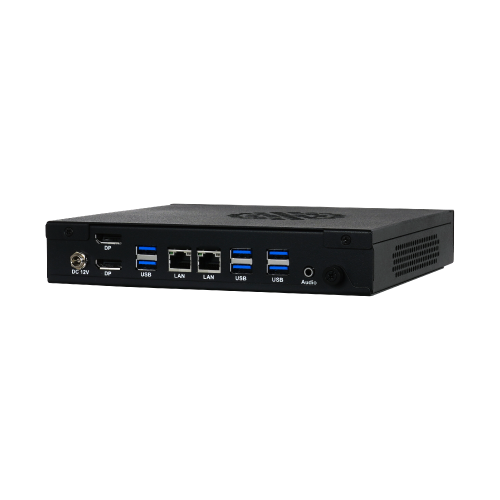

Embedded BOX PC with Mini-ITX Board
MITS-3000 採用英特爾第 10 代處理器，整合在 200x200x36mm 的微型機箱中。這款工業 BOX PC 非常適合嵌入式終端和其他 KIOSKS。
| Processor | Intel® 10th Gen (Comet Lake-S) Core™ Processors |
| Chipset | Intel® H420E |
| Memory | 2 x 260-pin DDR4 SODIMM socket supported, up to 64G DDR4-2666 |
| Storage | 1 x m.2 M key 2280 (PCIex4, SATA) |
| Graphic | Intel® UHD Graphics 630 |
| Display Port | 2 x Display port (DP1.2++) resolution up to 4096×2160@60Hz |
| TPM2.0 | 1 |
| Watch-Dog Timer | Programmable watchdog timer, time out period from 0.5 sec to 254.5 secs |
| Ethernet | 2x Realtek GLAN RTL-8119-CG |
| USB | 6 x USB 3.2 Gen 1 (Type-A) |
| Audio | 1 x Combo Audio Jack |
| Expansion | 1 x M.2 Key E 2230 (USB2.0 only) |
| OS | Win10 IoT & Linux |
| Power | 12V/120W |
| Dimension | L x W x H: 200 x 200 x 36 mm |
| Mounting | Wall-Mount |
| Environment | Operating temperature: 0 ~ 40°C |
| Certification | CE/FCC Class A |
