Fit is enough, less is more- Intel Alder Lake-N platform in tiny system.
Fit is enough, less is more- Intel Alder Lake-N platform in tiny system.

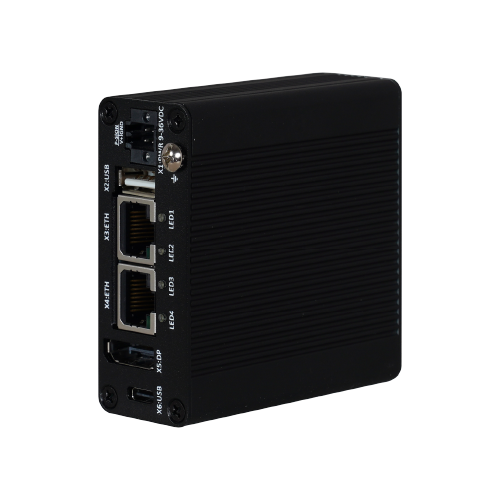

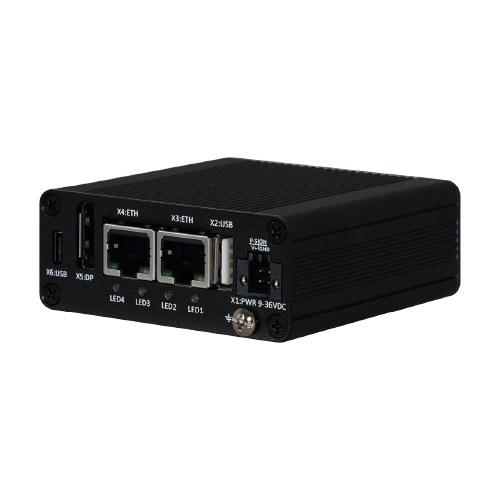

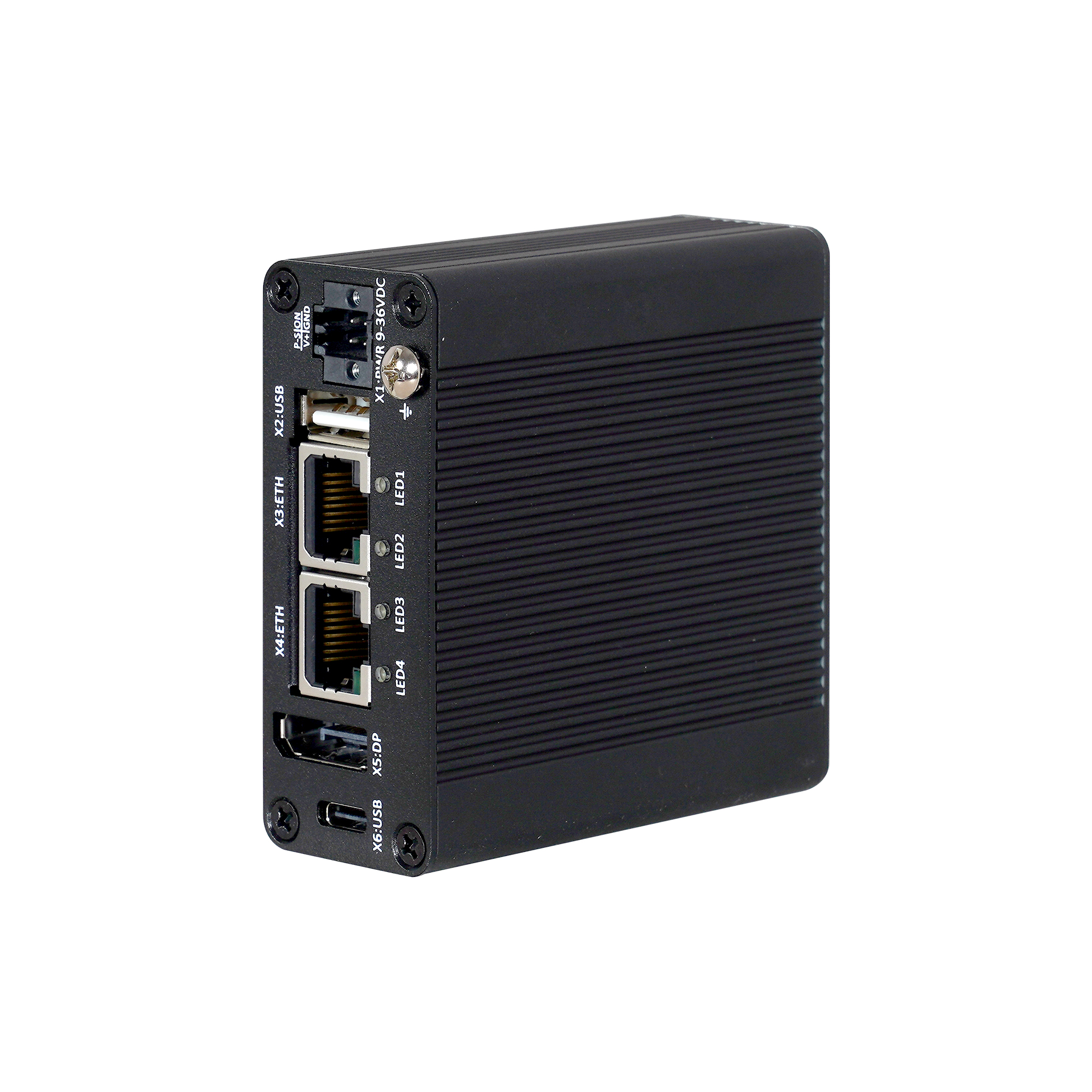

配備英特爾 TCC（用於晶片間通訊優化）和工業 TSN 即時網路（用於時間敏感環境）的新型微型設計系統將是最佳選擇。嵌入式電腦廣泛應用於邊緣運算領域，但面對日益增長的低延遲應用需求，現有系統的運算能力和Gatewau功能仍然不足。 WeLink最近推出了DIN導軌型MIWA系列。這款超緊湊型工業電腦採用英特爾新一代 ATOM 處理器，可在寬溫範圍和寬功率輸入電壓下運作。
| General | |
|---|---|
| CPU | Support Intel® Atom® Alder Lake-N processors (System design optimized for 6W CPU power consumption.) |
| Memory | LPDDR5 8GB/16GB (option) |
| Mass Storage | eMMC 64G/128G(option) |
| Power Input | Standard: 9~36V |
| Operation System | Windows® 10 IoT Enterprise Linux Yocto |

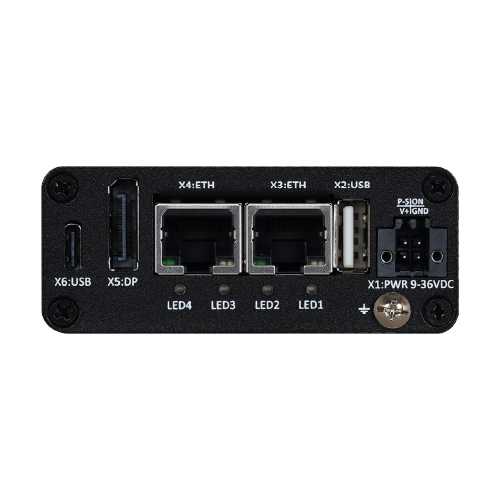

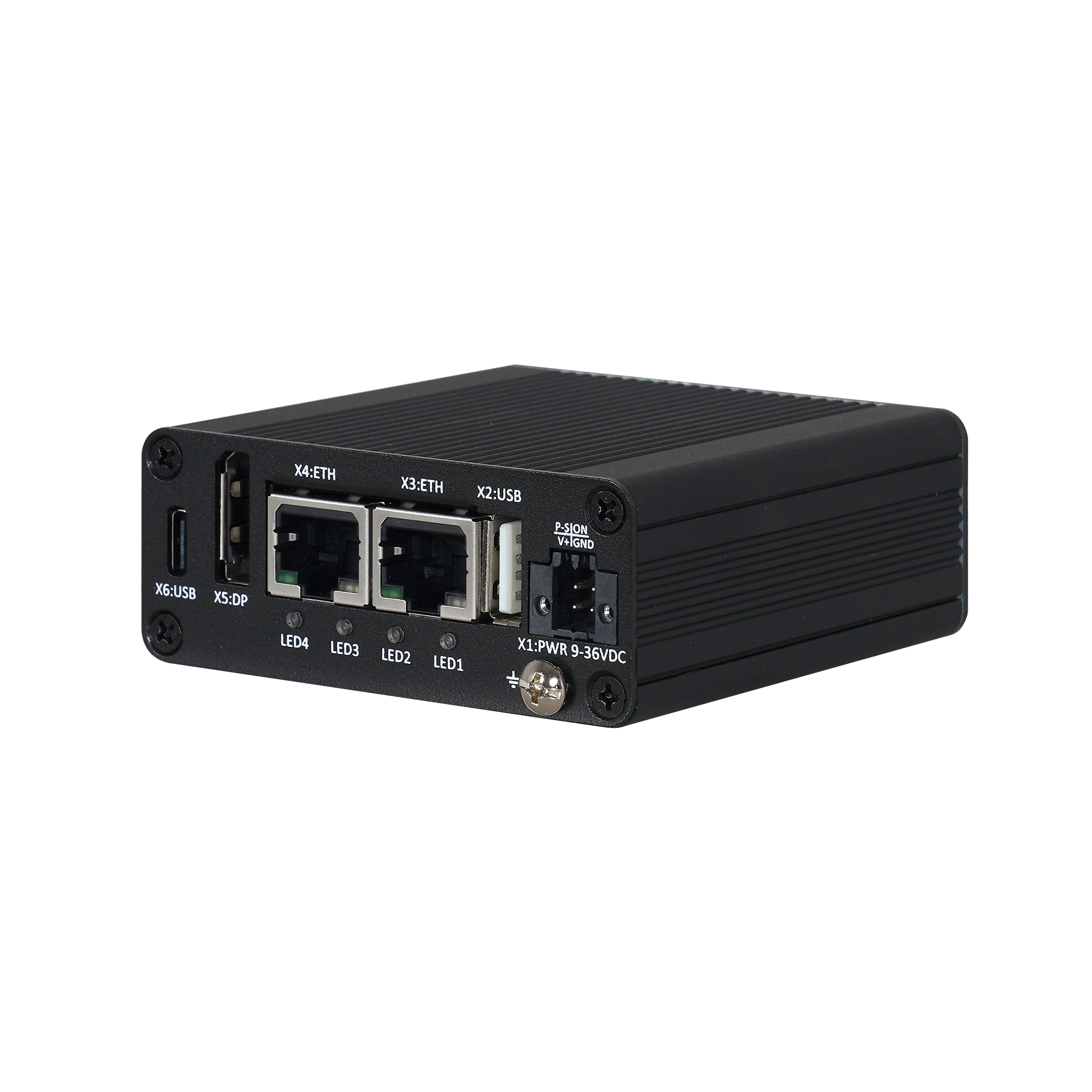

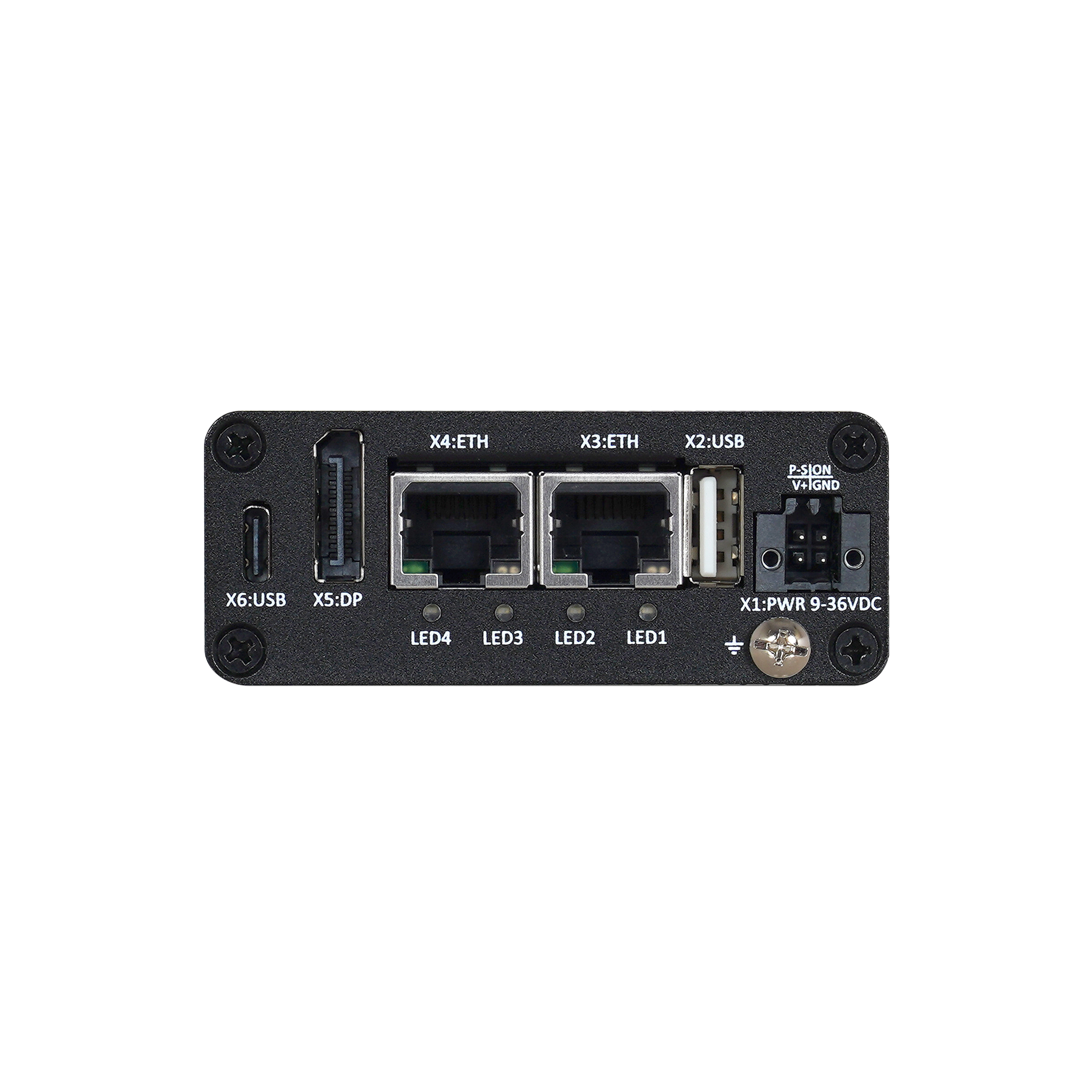

| Basic I/O Interface | |
| Power Connector | 4-Pin Terminal Block |
| Giga LAN | 2x 2.5 GbE LAN (Intel® i226-IT) |
| USB | 1x USB3.0 type-C, 1x USB3.0 type A |
| Display | 1x DP |
| Expansion | 1x M.2 M Key 2242 PCIEx4 |
| LED | 4 system LEDs |
| EMC Standard | |
| EMC Standard | CE/FCC Class A |
| Environmental | |
| Storage Temperature | -40°C ~ 85°C |
| Operating Temperature | -20°C ~ 50°C with airflow -20°C ~ 55°C with airflow, DIN Rail mount (by request) |
| Relative Humidity | 5 %~ 95 % (non-condensing) |
| Vibration | DIN Rail – 2G rms |
| Shock | Din-Rail – 50G half sign |
| Mechanical | |
| Degree of Protection | IP 30 |
| Dimension | 75mm (L) x 75mm (W) x 30 mm (H) |
| Net Weight | 0.205KG |
| Optional Accessories | |
| Power Adaptor | 4-pin Connector, 60W/24V and 40W/12Vs |
| Mounting Kit | Din Rail mount, Wall/Desk/VESA mount by project |
| Video Adaptor | DP to VGA/ DP to DVI |
