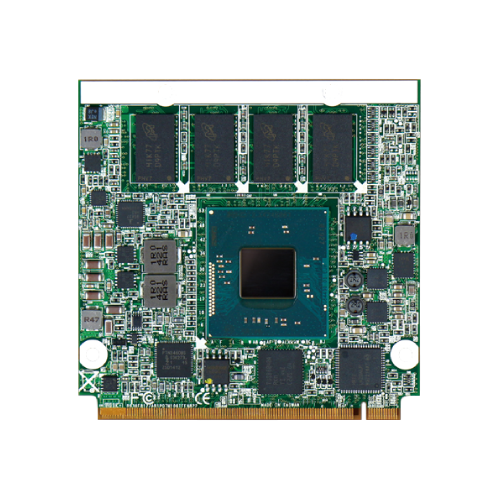

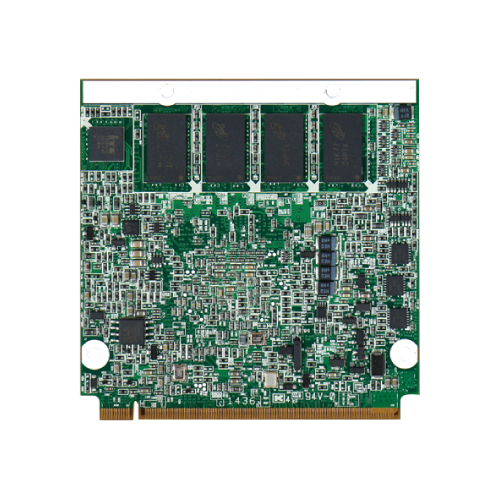

Qseven module wil Intel® Baytrail family processor
PQ7-M106 採用 Intel® 22nm Silvermont Atom™ 處理器 E3800 系列（Bay Trial）設計，旨在為低成本系統提供高性能和低功耗要求。 PQ7-M106 被視為現有小型模組的升級版，配備合格組件以支持寬溫範圍，並配備 PCI Express 接口，可支持擴展設備，例如 GPS/GPRS/無線/藍牙/圖形等。該系列還支持 LVDS、雙通道 DDR3L 以及焊接在主板上的 eMMC，是具有高成本效益的產品。
| General | |
| CPU | Intel® Atom E3845, 4 cores, 1.91 GHz, 10W TDP Intel® Atom E3827 2 cores, 1.75 GHz, 8W TDP Intel® Atom E3825 2 cores, 1.33 GHz, 6W TDP Intel® Atom E3815 1 Core, 1.46 GHz, 5W TDP Intel® Atom E3805 2 core, 1.33 GHz Dual, 3W TDP |
| Memory | Up to 8GB DDR3L at 1333 MT/s Dual memory channel |
| Mass Storage | onboard eMMC 5.0 flash up to 64 GB |
| Cache | 2 MB L2 cache |
| Ethernet | 1x 10/100/1000 GbE (Intel® i210) |
| I/O Interfaces | |
| PCIe Express | 3x PCIe x1 Gen 2 (Opt. to 4) |
| USB | 6x USB 2.0 HOST 1x USB 3.0 HOST |
| Serial ATA | 1x SATA 3.0 (6 Gbit/s) |
| Video Interface | LVDS/eDP, DP/HDMI |
| Other Interfaces | 1x SDIO 1x SPI 1x I2C 1x HDA 1x SMBus 1x LPC 1x UART 1x WDT |
| Mechanical and Environmental | |
| Form Factor | Qseven® 2.0 │70x70mm |
| Operating Temperature | Commercial: 0°C to +60°C Industrial: -40°C to +85°C |
| Humidity | 10-90% RH operating, non-condensing 5-95% RH storage (and operating with conformal coating) |
| Power | |
| Power Management | ACPI 5.0 compliant l Smart Battery Management on carrier |
| Standard Input | 5V DC ±5% |
| Power Consumption | 3W~10W (CPU) |
| Operation System | |
| Standard Support | Windows 10 Windows 8.1 Windows Embedded 8.1 Industry Windows 8 Windows 8 Embedded Standard Windows 8 Embedded Windows 7 ( no support for eMMC ) Windows 7 Embedded Compact ( no support for eMMC ) Windows 7 Embedded Standard ( no support for eMMC ) |
