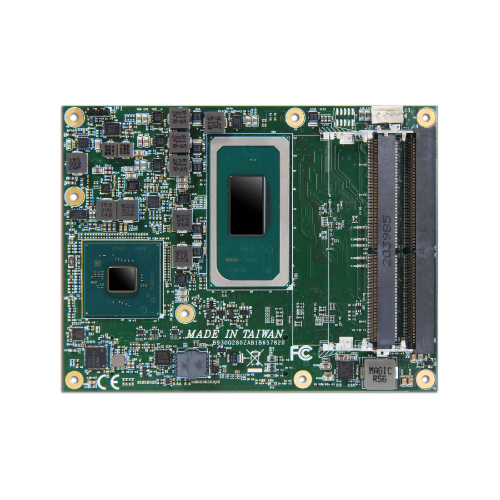

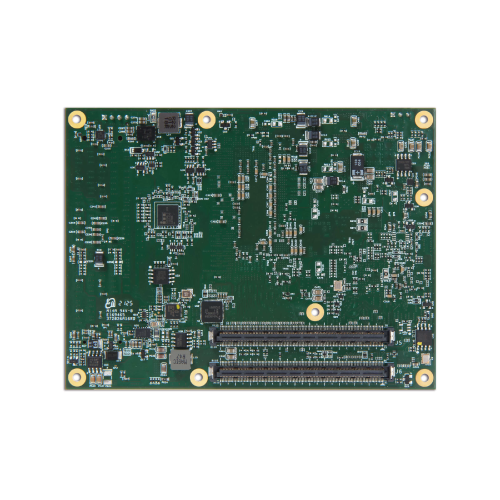

COM Express Type-VI Basic module with Intel® 11th Gen H Processor with DDR4 SO-DIMM, DDI, PCIe Gen 4.0, USB 3.2 Gen2x1, 2.5 Gigabit TSN Ethernet, discrete TPM 2.0, eDP/LVDS, SATA III and VGA
PCOM-B657VGL是一款基於Intel®第11代H處理器的COM Express模組，相容於COMe 3.0標準。該平台採用10nm++工藝，支持VNNI指令集，提供先進的計算能力，具有45W~25W的散熱和工業級電源管理。
| Model Name | PCOM-B657VGL |
| Form Factor (mm) | COM Express® Basic (125 x 95mm) |
| COM Type | Type 6 |
| CPU/ Clock/ Cache | i7-11850HE, 8C/16T, 2.6GHz, 24MB i5-11500HE, 6C/12T, 2.6GHz, 12MB i3-11100HE, 4C/8T, 2.4GHz, 8MB Celeron 6600HE, 2C/2T, 2.6GHz, 8MB W-11865MRE, 8C/16T, 2.6GHz, 24MB W-11555MRE, 6C/12T, 2.6GHz, 12MB W-11155MRE, 4C/8T, 2.4GHz, 8MB W-11865MLE, 8C/16T, 1.5GHz, 24MB W-11555MLE, 6C/12T, 1.9GHz, 12MB W-11155MLE, 4C/8T, 1.8GHz, 8MB |
| Chipset | RM590E / QM580E |
| Memory | DDR4 3200 MT/s Dual Channel Non-ECC / ECC (W-11000 Series) |
| Display | 3*DDI, LVDS/eDP, VGA |
| Storage | 4*SATA |
| USB | 4 x USB 3.2 Gen2 x1 8 x USB 2.0 |
| PCI Express | 1 x PCIe 4.0 x16 (1 x16, 2 x8, or 1 x8 + 2 x4) 8 x PCIe 3.0 x1 (8 x1, 4 x1 + 1 x4, or 2 x4) Support Intel RST for PCIe Storage for both x4 Link |
| Ethernet | Intel I225 Family (2.5G) |
| Sound | Intel® High Definition Audio |
| Graphic Controller | Intel® UHD Graphics |
| Carrier Board | PCOM-C605 PCOM-C60B |
