搭載 Intel® Amston Lake 平台的精巧型系統——恰到好處，精簡更出色
•Intel® Amston Lake series SKU CPU
•High speed communication interfaces
•Tiny system size in 128 (W) x 99.2 (H) x 56.8 (D)mm
•Miniature computing design to fit most of industry markets.
•Support DDR5 up to 16GB

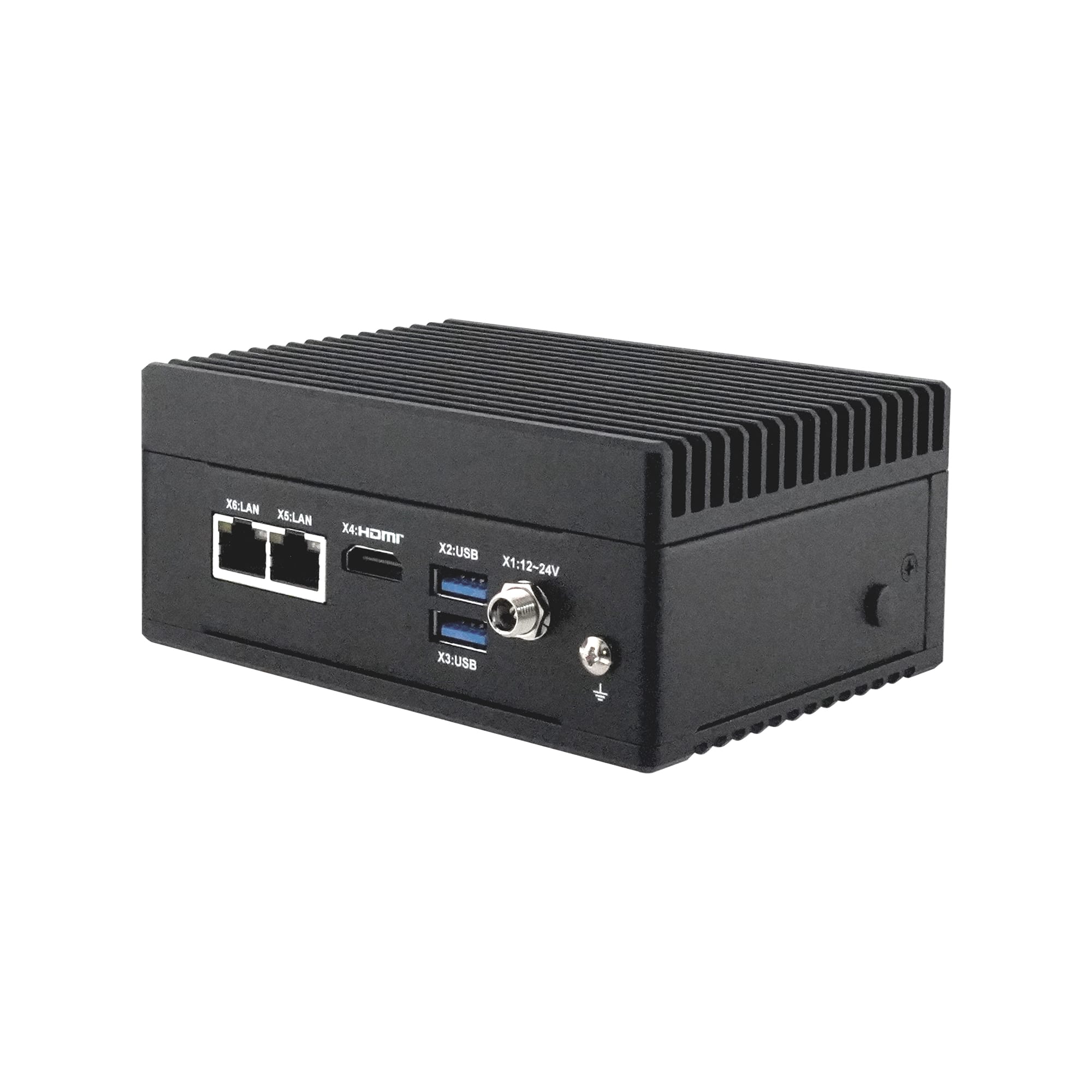

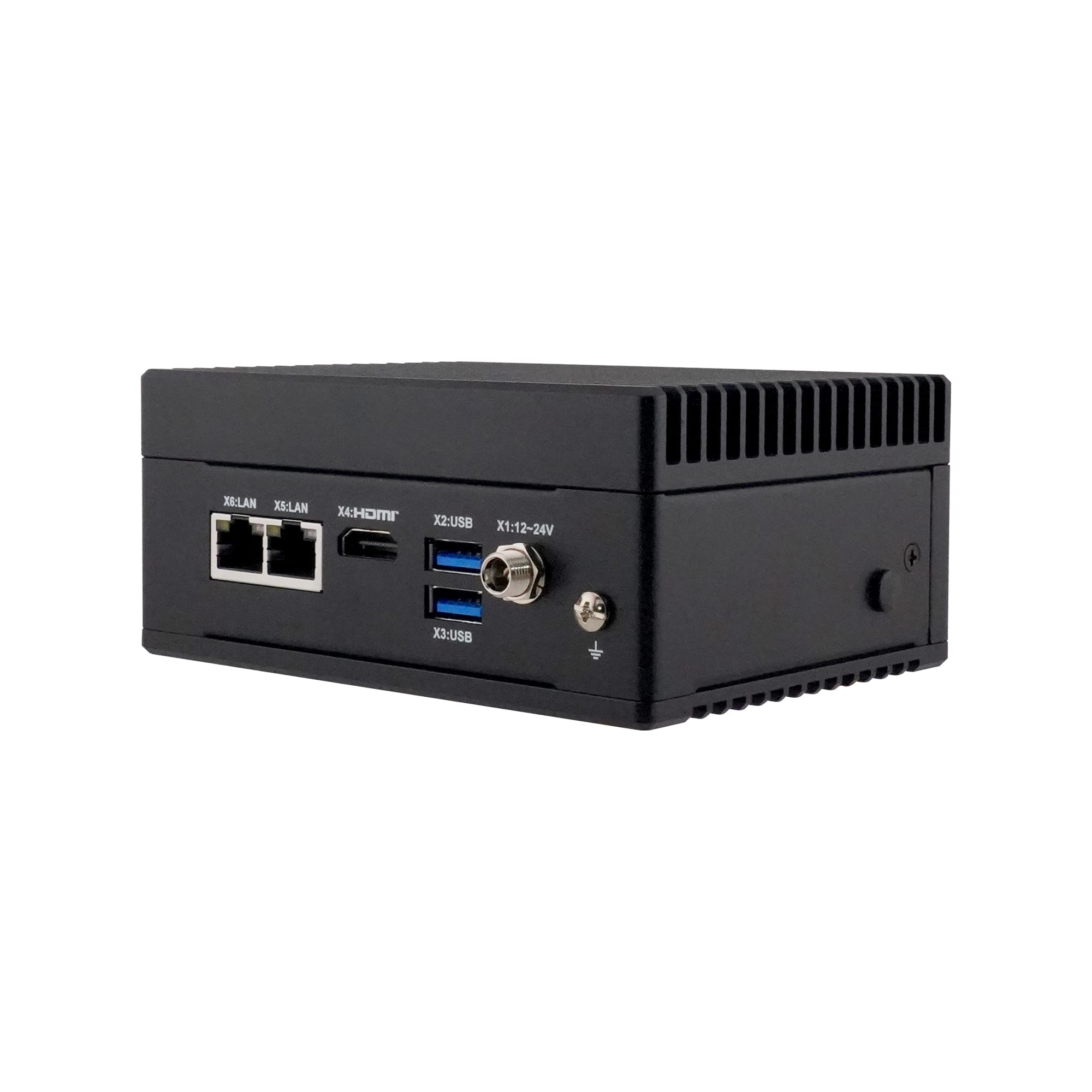

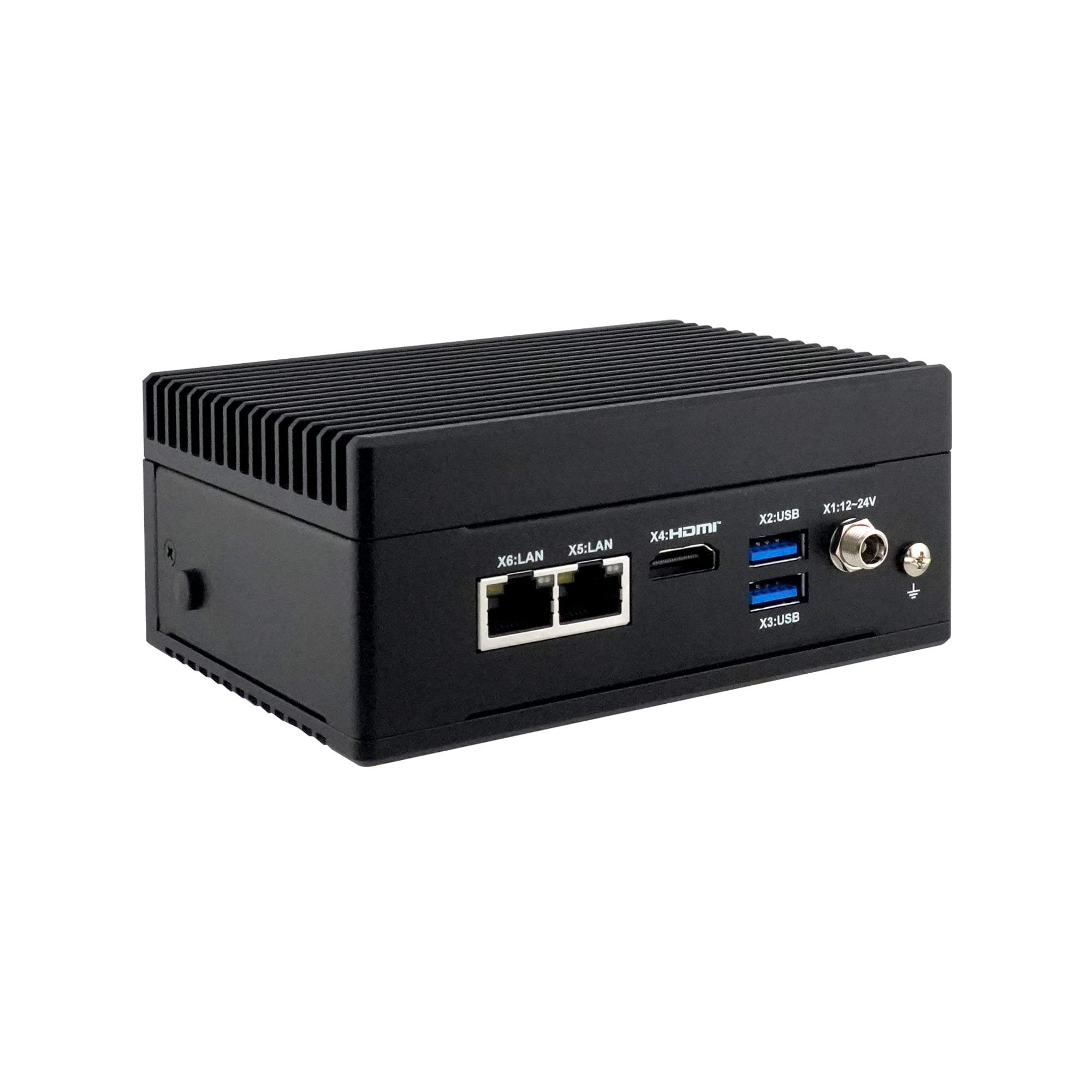

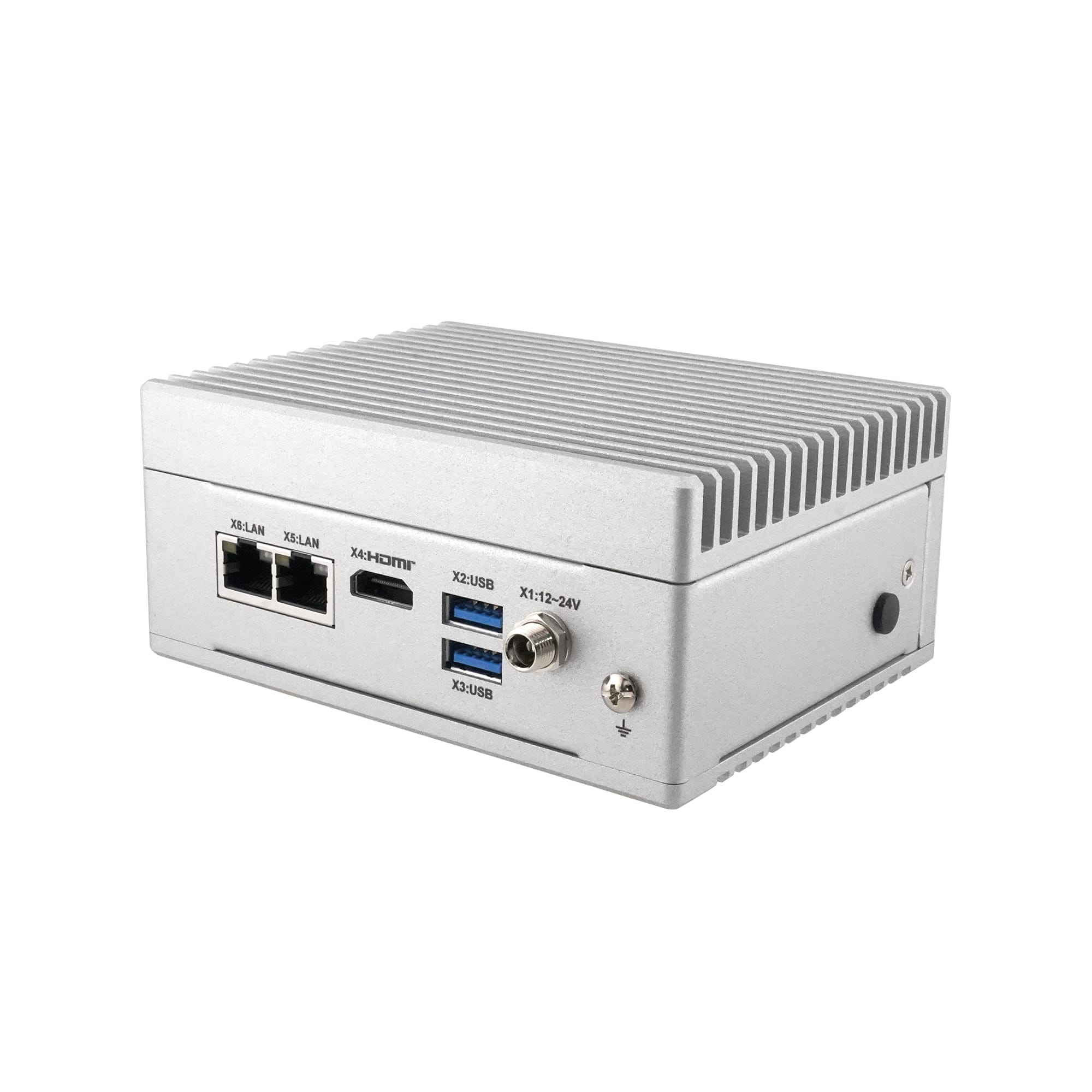

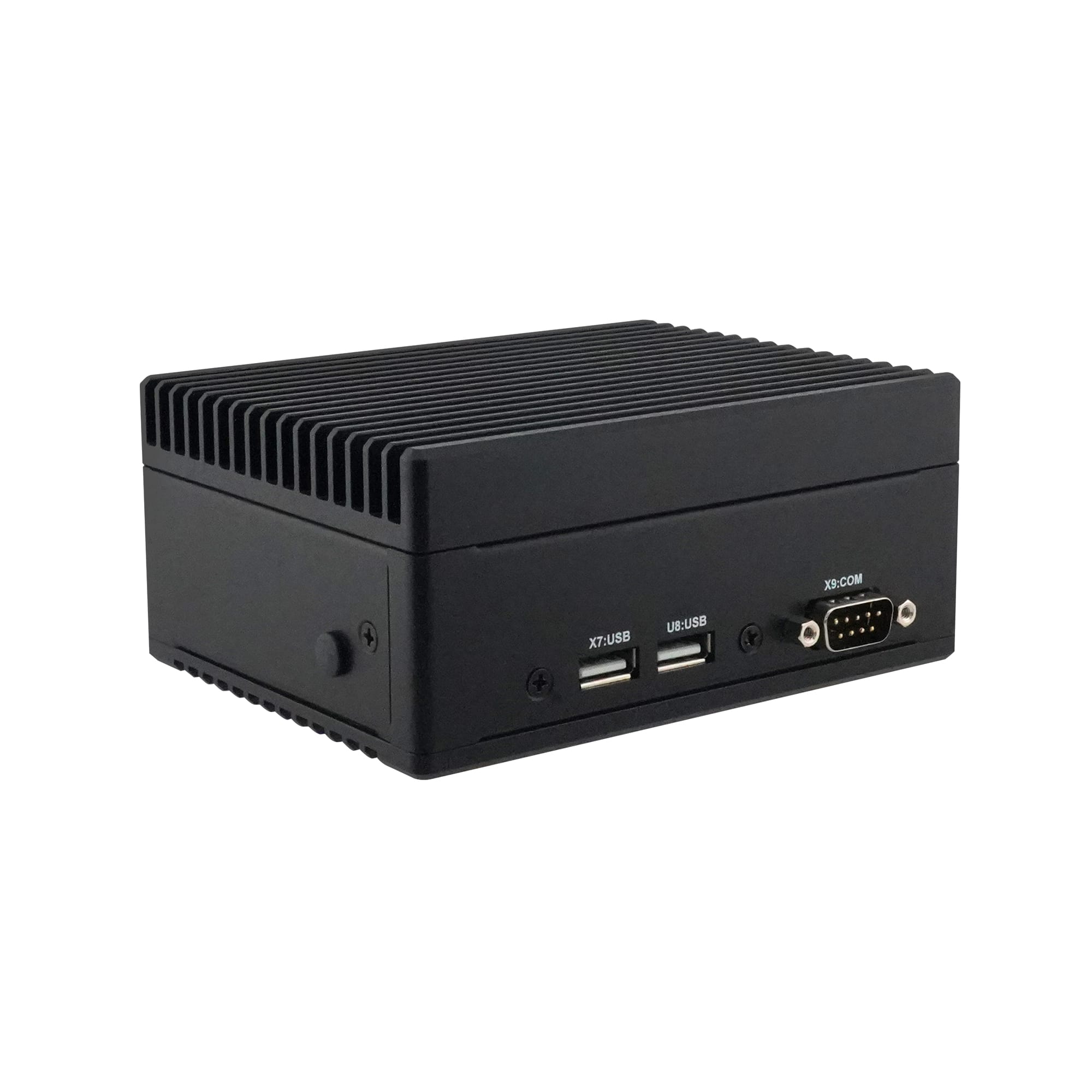

WSB-ASLP2是一款搭載Intel®Amston Lake處理器的精巧型嵌入式系統，機身尺寸僅128 x 99.2 x 56.8 mm。支援最高16 GB DDR5記憶體、雙2.5GbE LAN、豐富USB與顯示介面，以及M.2儲存與無線擴充，並提供DIN Rail與壁掛安裝選項，適合工業自動化、IoT閘道器及精巧型邊緣運算應用。
| General | CPU | Support Intel® Amston Lake processors (System design optimized up to 15W CPU power consumption.) |
| Storage | SSD 128G/256G/512G(option) | |
| Memory | DDR5 SO DIMM 8GB/16GB (option) | |
| Power Input | Standard: 12~24V | |
| Operating System | Windows® 10 IoT Enterprise LTSC2021 Windows® 11 IoT Enterprise LTSC2024 Linux Ubuntu | |

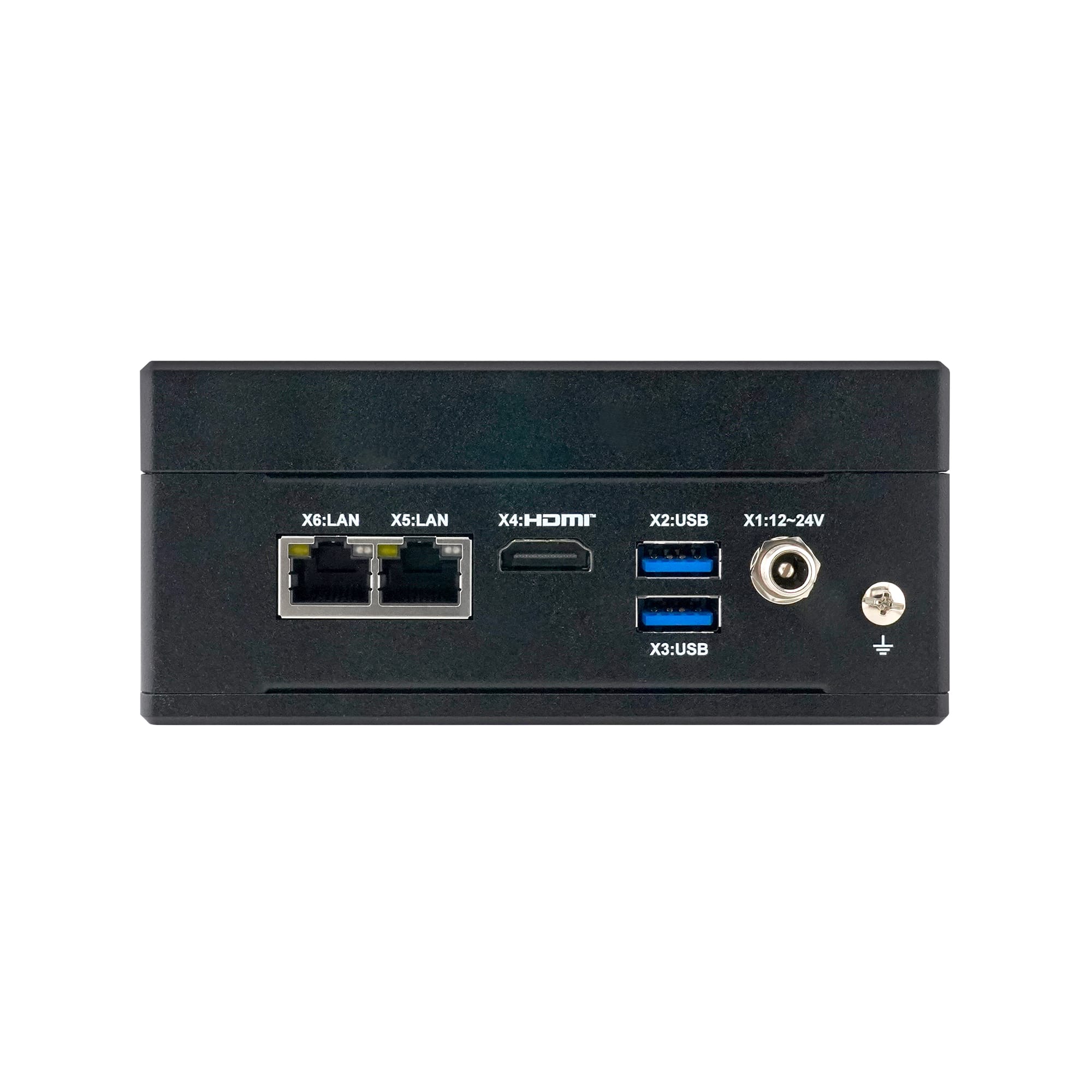

| I/O Interface | Power Connector | DC Jack with Lock |
| Giga LAN | 2x 2.5 GbE LAN | |

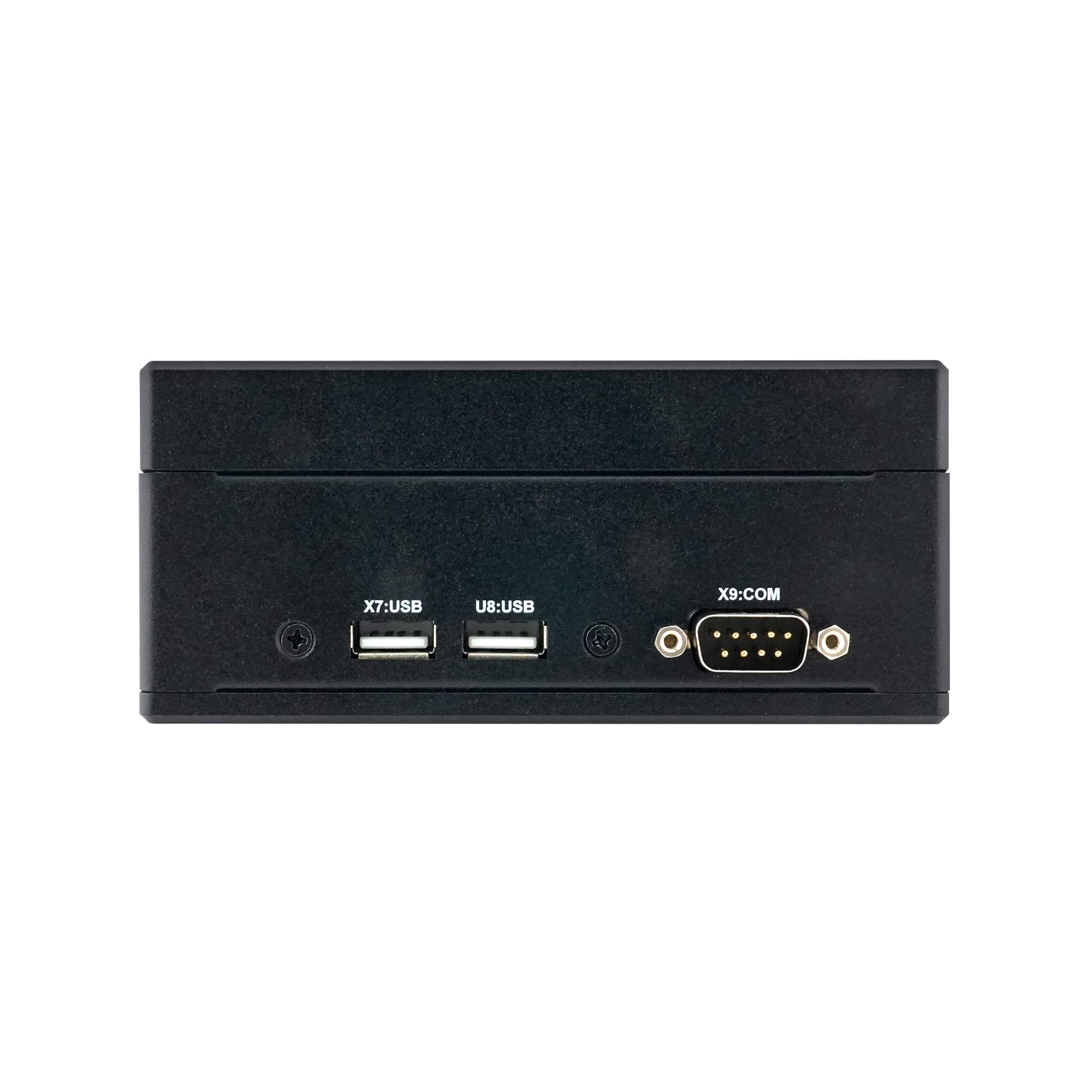

| USB | 2x USB3.0 type A 2x USB2.0 type A | |
| Display | 1x HDMI | |

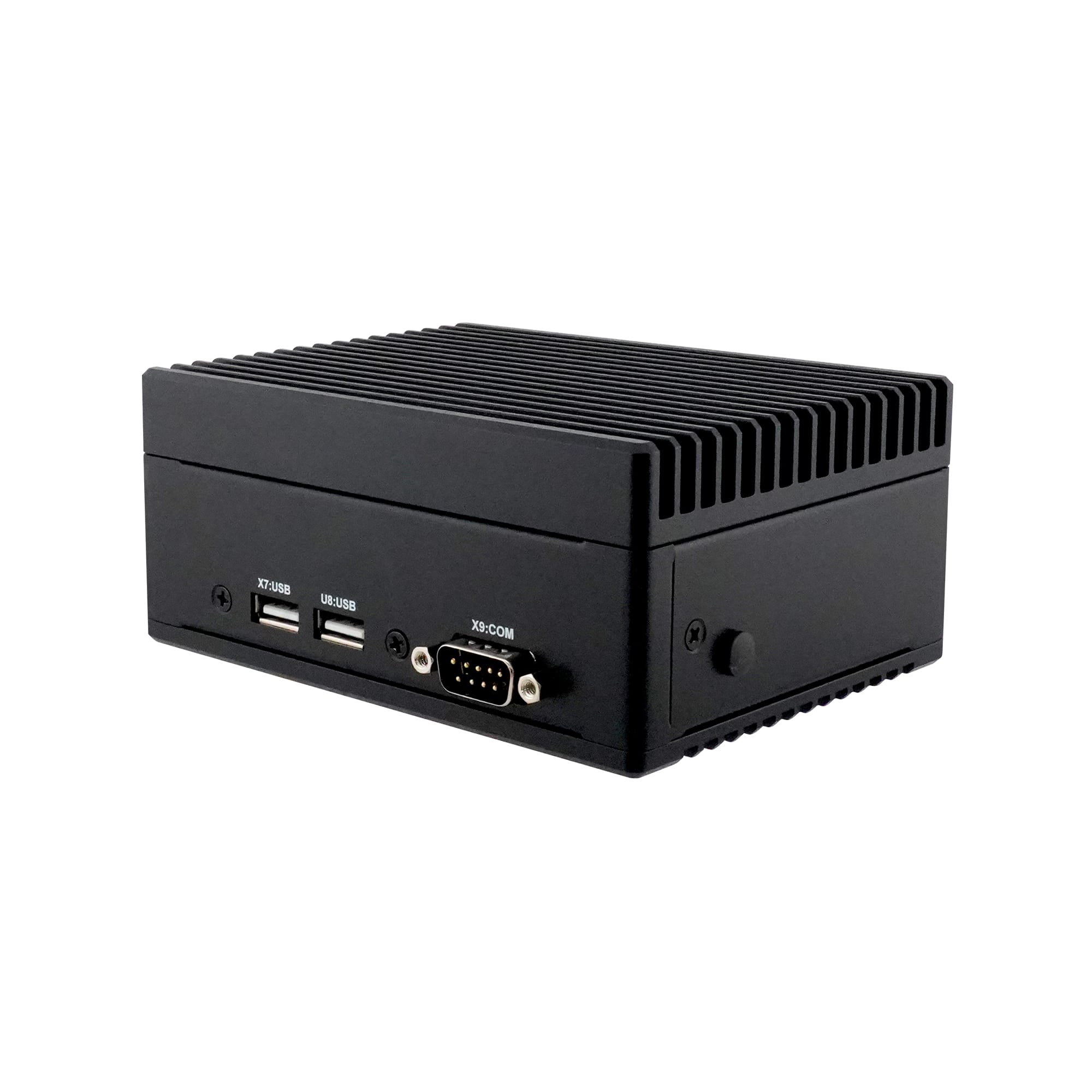

| COM Port | 1x RS232 | |
| Expansion | SSD | 1x M.2 M-Key 2242 (PCIe x4) |
| Wi-Fi/Bluetooth | 1x M.2 E-Key 2230 | |
| Certifications | EMC Compliance | CE, FCC Class A |
| Environment | Operating Temperature | 0°C ~ 50°C with airflow |
| Storage Temperature | -40°C ~ 85°C | |
| Relative Humidity | 5 % – 95 % (non-condensing) | |
| Vibration | DIN Rail – 1G rms | |
| DiShock | Din-Rail – 15G half sign | |
| Mechanical | Form Factor | 2.5-inch Pico-ITX |
| Dimension | 128 mm (W) x 99.2 mm (H) x 56.8mm (D) | |
| Net Weight | 0.88Kg | |
| Optional Accessories | Power Adaptor | 60W / 24V (option) |
| Mounting | Wall-Mount kit |
