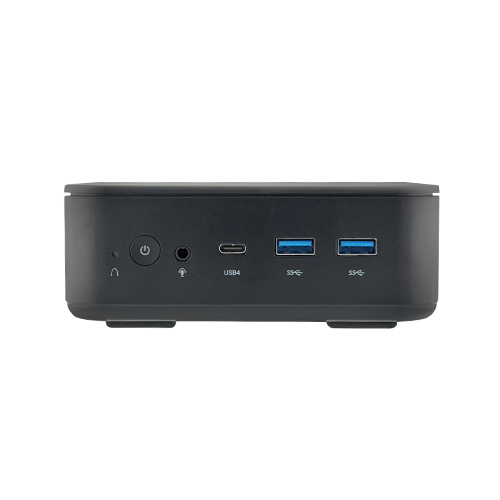

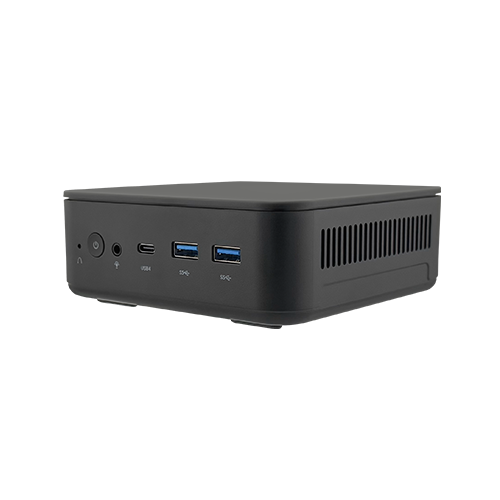

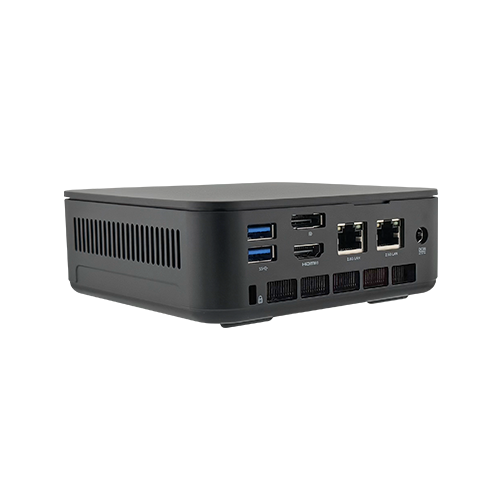

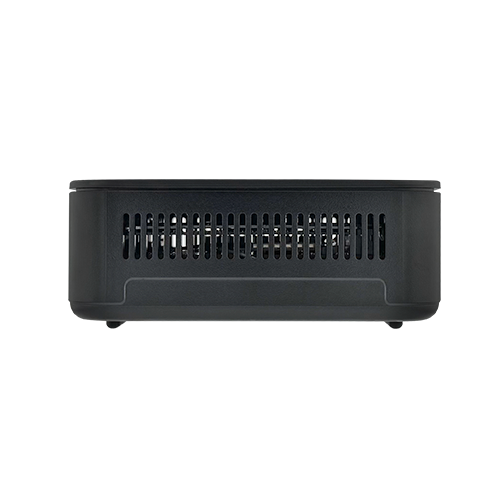

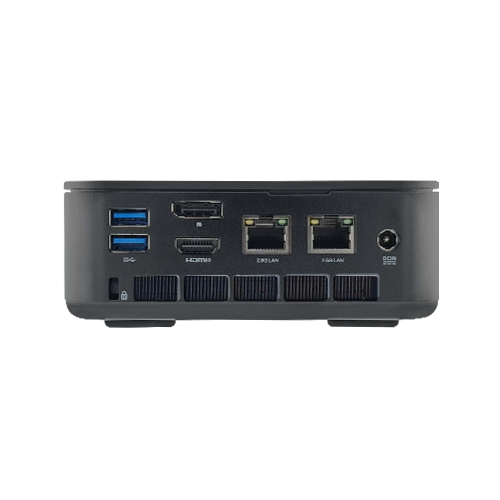

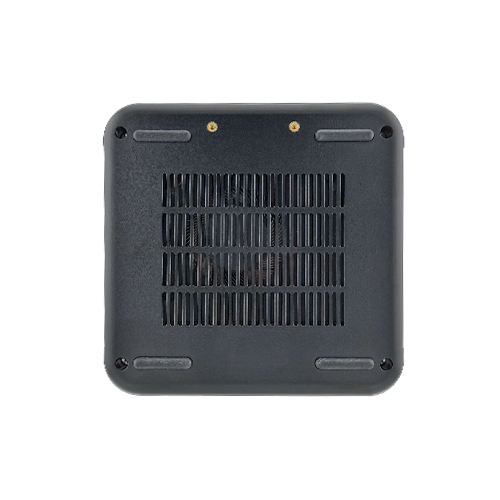

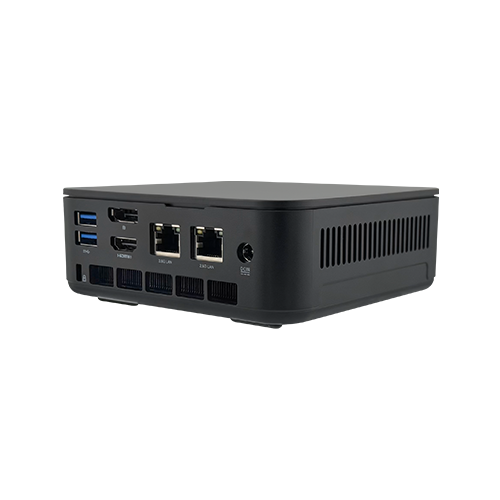

Ultra-small form factor Mini-PC with Intel® ADL-N family processor
Fit is enough, less is more- Intel Alder Lake-N platform in tiny system
SQ13是一款具有豐富I/O、智慧邊緣運算、高靈活性和便捷PCIe擴展能力的嵌入式電腦，具有耐寬溫和強結構的特點，可與物聯網平台和可擴展的網路閘道器完美匹配。
| General | |
| CPU |
Intel® Atom™ ADL-N N100 processor |
| Memory |
DDR4 SO-DIMM: 8G/16G (option) |
| Mass Storage |
1x M.2 2280 PCIE x1/SATA SSD |
| Audio |
Codec: HDA SN6140 |
| Power Input |
DC Jack: 1x 2.5/5.5mm (12V) Standard: AC 100~240V |
| Operation System |
Windows® 11 IoT |
|
Wireless LAN |
802.11b/g/n/ac/ax and BT5.0 |
| Basic I/O Interface | |
| Giga LAN |
1x 1GLAN & 1x 2.5GLAN |
| USB |
2x USB Type-A 3.2 Gen2(Data) 2x USB Type-A 3.0 1x USB Type-C full function (PD/DATA) PD3.0 |
| Display |
1x Standard HDMI2.0 (4K@60Hz) 1x Display Port (4K@60Hz) 1x Full function Type-C |
| Certification | |
|
Certification |
CE/FCC: Class A |
|
Indicated light |
Power LED: White LED |
|
Key |
Power key on front panel |
| Video | |
| Video |
Integrated in CPU |
| Hardware | |
|
PMU |
Type: MPS-MP2964GQKT |
|
MCU |
Type: EC ITE5570/ IT5571E |
|
dTPM |
Interface type: SPI |
| Mechanical | |
| Dimension |
131mm(L) x 131mm (W) x 43mm(H) |
